FasTest FE001 Series Replacement Instructions

REPLACMENT INSTRUCTIONS
Instructions Supplement FE001 Mini Connector
READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO USE
WARNING: Do not operate FasTest connectors without reading and understanding
the complete installation and operating instructions. If instructions are not clear or
components are missing, contact factory before using connector.
Information on:
Mounting of connector
•
Attachment of pilot pressure and test media supply lines.
•
Connector operation instructions
•
is described in the FE general instructions included with each connector.
FE001 Mini Connector Seal Sizes
MODEL SEAL SET
FE001 -0050
-001
-002
Buna-N o-ring seals are standard, other materials available per request.
PARTS LIST
PART NUMBER DESCRIPTION
FE001-0050 Complete External Connector
Sealing Range .030" - .050"
FE001-001 Complete External Connector
Sealing Range .050" - .080"
FE001-002 Complete External Connector
Sealing Range .080" - .130"
FES001-0050 Replacement Seal Set
Sealing Range .030" - .050"
Includes Buna-N O-Ring Seal and
Seal Casing.
SEALING RANGE
.030" - .050"
.050" - .080"
.080" - .130"
PARTS LIST CONTINUED
PART NUMBER
FES001-001
FES001-002
FEB001-0050
FEB001-001
FEB001-002
30539-000

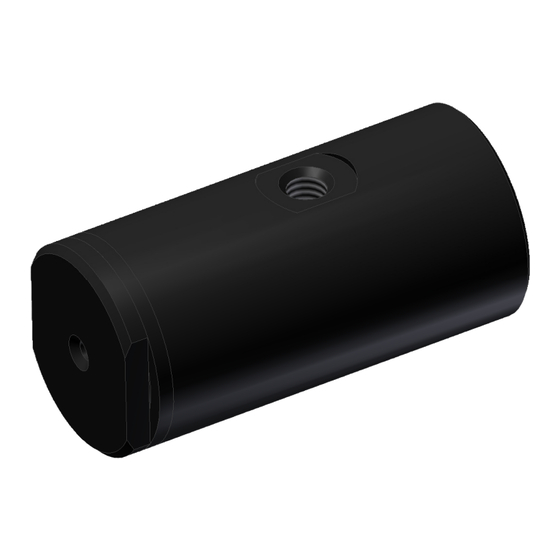

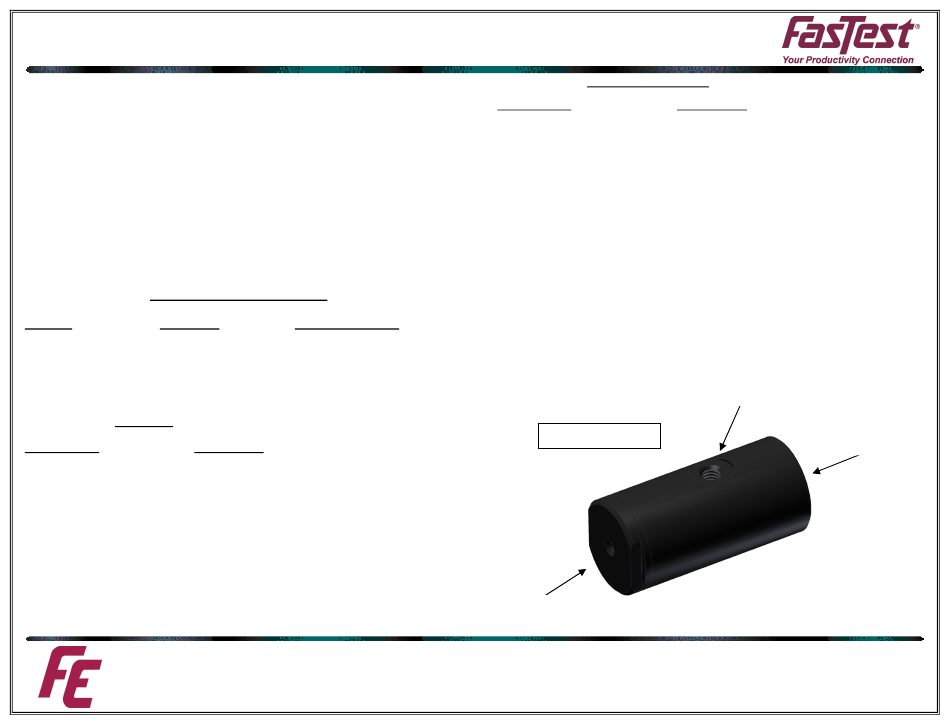

Assembly View
Test Piece
Entrance Hole
DESCRIPTION
Replacement Seal Set
Sealing Range .050" - .080"
Includes Buna-N O-Ring Seal and
Seal Casing.
Replacement Seal Set
Sealing Range .030" - .050"
Includes Buna-N O-Ring Seal and
Seal Casing.
Buna-N Replacement O-Ring Seals
Sealing Range .030" - .050"
Five seal changes per package.
Buna-N Replacement O-Ring Seals
Sealing Range .050" - .080"
Five seal changes per package.
Buna-N Replacement O-Ring Seals
Sealing Range .080" - .130"
Five seal changes per package.
Internal Spring for FE001 Connector
Pilot Port
Test Port
Roseville, MN
Ph: 1-800-444-2373
Fax: 651-645-7390
www.fastestinc.com
WP006 10/6/2010
