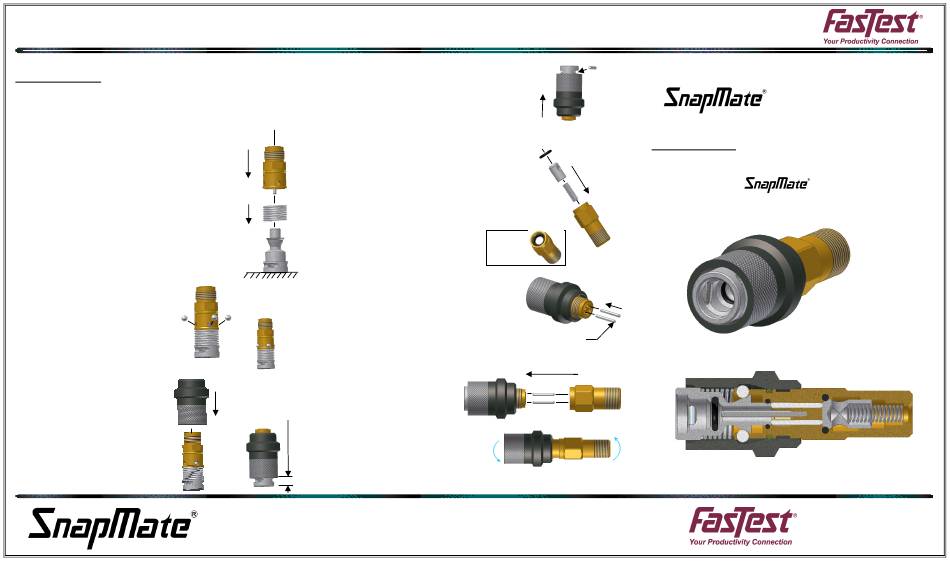

FasTest SnapMate SCPR50 Rebuild Instructions

REBUILD INSTRUCTIONS

REASSEMBLE:

Use all the new seals provided and lubricate lightly with an oil
compatible with your system / process during assembly. Re-
place pins with new pins as provided in the rebuild kit.
1) Place piston with end facing down on
solid surface and add the piston spring.
2) With the piston seal and sleeve o-ring
already replaced, slide the front body
over the back of the piston. This will re-
quire some force but if properly lubricat-
ed, it will slide over without damaging
the seal.
3) Continue to compress the
front body over the piston and
add the 4 balls into their re-
spective holes. Do not re-
lease the pressure until step 4
is complete.
4) Slide the sleeve over the
compressed assembly up to
the grip pin slots.
PAT# 6,039,303
5) Flip the connector over and inset the
latch pins.
pins to retain.
6) Insert the spring and poppet into the
(2)ADD
back body.
BODY
7) Lightly lubricate the poppet seal and in-
(1)ADD
SPRING
sert into the back body above the pop-
pet.
8) Insert the poppet pins into the back of
the front body. Make sure the poppet
pins have the tapered side toward the
STEP
poppet. Pins are not required to be
COMPLETE
placed in any specific holes but they
must be placed opposing.
9) Use a drop of LocTite
242 on
SLIDE
threads and assemble
SLEEVE
LEAVE ROOM the two body halves.
FOR LATCH
Tighten threads to 10ft-
PINS
lbs.
Slide the sleeve over the
SLIDE
SLEEVE
ASSEMBLE IN
ORDER SHOWN
STEP 6&7
SUB-ASSEMBLY
TAPERED
END
the body
TORQUE TO
10FT-LBS
SCPR50 Rebuild Kit
INSERT
PINS
DESCRIPTION:
Rebuild kit for internally valved,
in-line
INSERT
PINS
Valved In-Line
with pin grip.
