FasTest FasMate Series Operating Instructions

OPERATING INSTRUCTIONS

GENERAL INFORMATION:

The FX FasMate is designed to provide a safe, reliable leak-tight seal and
connection when properly maintained and used. Verify the connector seal
mates well with the sealing surface. Make sure threaded test piece matches
the threaded collets. Improper mating with a test piece can result in poor
sealing, leakage and risk of connector failure resulting in damage or injury.

MAINTENANCE:

User must establish a regular interval for maintenance as determined by the
user media and operational environment.
Periodically inspect the FX Connector and its seal for wear, damage and
proper operation. Inspect also for lubrication needs or corrosion. Repair or
replace as required to assure proper sealing, function, and safety.
Difficulty of operation indicates a need for inspection, lubrication, repair or
other maintenance. Repair Kits are available.
Warning
Use only factory authorized replacement seals and parts. Use
of unauthorized parts/seals can cause failure resulting in
damage or injury.
Parts and instructions available through FasTest or your FasTest
distributor.
NOTE: Any field modification of FasTest connectors voids Factory

warranty.

FasTest, Inc. Product Warranty
FasTest, Inc. warrants its products against defects of workmanship and/or material for 12 months from the date of the
sale by FasTest, Inc. This warranty is void if the product is misused, tampered with or used in a manner that is not in
accordance with FasTest, Inc. recommendations and/or instructions. FasTest, Inc. is not liable for consequential or
other damages including, but not limited to, loss, damage, personal injury, or any other expense directly or indirectly
arising from the use of or inability to use its products either separately or in combination with other products. ALL
OTHER WARRANTIES EXPRESSED OR IMPLIED, WHETHER ORAL OR WRITTEN, INCLUDING BUT NOT
LIMITED TO
WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY
EXCLUDED.
Remedy under this warranty is limited to replacement of the product or an account credit in the amount of the original
selling price, at the option on FasTest, Inc. All allegedly defective products must be returned prepaid transportation to
FasTest, Inc. along with information describing the products performance, unless disposition in the field is authorized
in writing by FasTest, Inc.

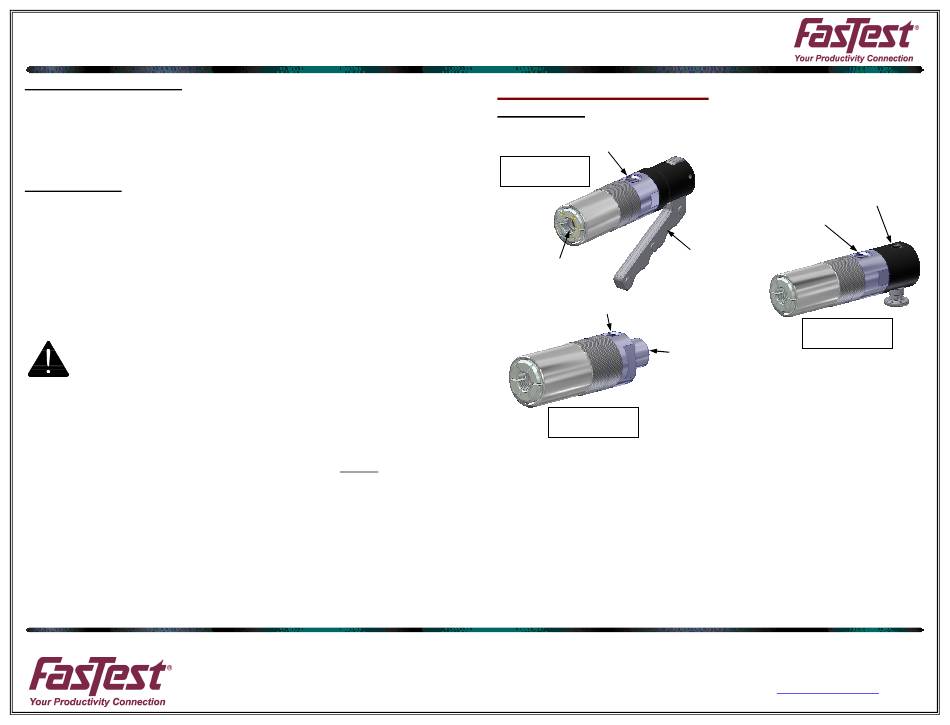

FX/FasMate Series
Description: Lever, Pneumatic & Thumb Valve Operated
Connectors for Male Threads.
MEDIA PORT
LEVER
CONNECTOR
HANDLE
THREADED
GRIPPING COLLETS
PILOT PORT
MEDIA PORT
PNEUMATIC
CONNECTOR
FX FasMate Connector provides a reliable leak-tight connection that grips
and seals onto male threads.
Please thoroughly read and understand these operating instructions prior to
operating connector. The use of pressurized media for sealing and testing
requires a thorough understanding of the FasTest FX FasMate Operating
Instructions.

Operation

•
General Information
•
Maintenance
•
Warranty
•
PILOT PORT
MEDIA PORT
THUMB VALVE
CONNECTOR
Roseville, MN
Ph. 1-800-444-2373
Fax. 651-645-7390
www.fastestinc.com
WP120 Rev C, 3/14/2014
