T-BERD/MTS 5800 Portable Network Tester
QUICK CARD

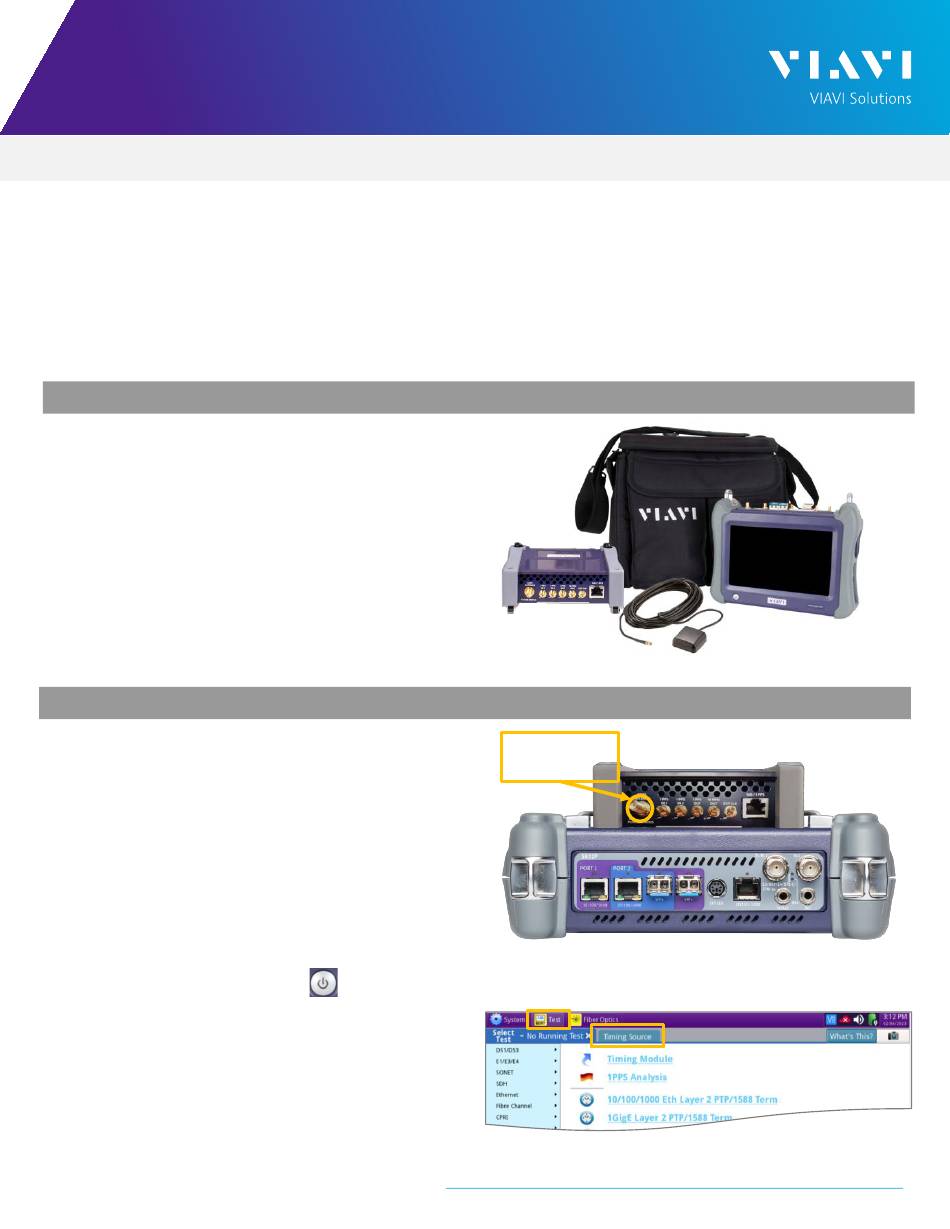

Enabling the Timing Expansion Module
This quick card outlines how to set up a Timing Expansion Module on the OneAdvisor 800
and complete a survey to verify GNSS reception and qualify antennas. This procedure
should be performed prior to running one-way delay measurements, GNSS Antenna delay
measurement, IEEE 1588 PTP measurements, Wander analysis, or Timing and 1PPS
Analysis.
E Q U I P M E N T R E Q U I R E M E N T S
► T-BERD/MTS 5800 with BERT Software
Release V31.0 or greater
► Timing Expansion Module V2 (TEM V2)
► GNSS Antenna (Taoglas A.171,
Taoglas AA.162, Tallysman TW7882,
or Maxtena M9706CWT recommended)
C O N N E C T G N S S A N T E N N A A N D A C T I VAT E T E M V 2
1. Connect the male SMA connector on
the end of the antenna cable to the
female SMA connector on the TEM V2
(labeled Antenna).
2. Tighten the connector until the antenna
is securely attached.
3. Place the antenna in a location with
minimum interference or blocking.
4. Press the Power button
the test set.
5. Tap the Test icon at the top of the
screen.
6. Tap the Timing Source tab to activate
the TEM V2 Timing Module.
T-BERD/MTS 5800 Portable Network Tester
TEM V2 GNSS
to turn on
https://www.viavisolutions.com/en-us/products/timing-expansion-module-v2-tem-v2
VIAVI//Public
Figure 1: Equipment Requirements
Antenna
Figure 2: TEM V2
Figure 3: Home Screen
