Viavi T-BERD/MTS-5800 Quick Card

Quick Card
®
T-BERD /MTS-5800 Network Tester
Ethernet Optics Self-Test
This quick card describes how to test SFP+, SFP28, QSFP+, QSFP28 and CFP4 optical transceivers using
the T-BERD/MTS 5800.
Equipment Requirements:
• T-BERD/MTS-5800 equipped with the following:
o BERT software release V27.2 or greater
o Test options:
▪
C510GELAN for 10G Gigabit Ethernet
▪
C525GE for 25Gigabit Ethernet
▪
C540GE for 40Gigabit Ethernet
▪
C5100GE for 100Gigabit Ethernet
• Jumper Cable or Loopback Plug:
o Single Mode LC Loopback plug or LC-LC Jumper Cable for
10GBASE-LR, 25GBASE-LR, 40GBASE-LR4, and
100GBASE-LR4 (VIAVI Part # CB-019965)
o Multimode LC Loopback plug or -LC Jumper Cable for
10GBASE-SR and 25GBASE-SR (VIAVI Part # CB-019967)
o 12-Fiber Multimode MPO Loopback plug for
40GBASE-SR4 and 100GBASE-SR4
(VIAVI Part # CB-MPOLB-12F)
• Fiber optic inspection microscope
(VIAVI P5000i or FiberChek Probe)
• Fiber Optic Cleaning supplies
Information Requirements:
• BER Threshold
Fiber Inspection Guidelines:
• Use the VIAVI P5000i or FiberChek Probe microscope to
inspect the jumper cable or loopback plug before
connection to the optical transceiver.
• Focus the fiber on the screen. If dirty, clean the connector.
• If it appears clean, run inspection test.
• If it fails, clean the fiber and re-run inspection test.
Repeat until it passes.
VIAVI Solutions

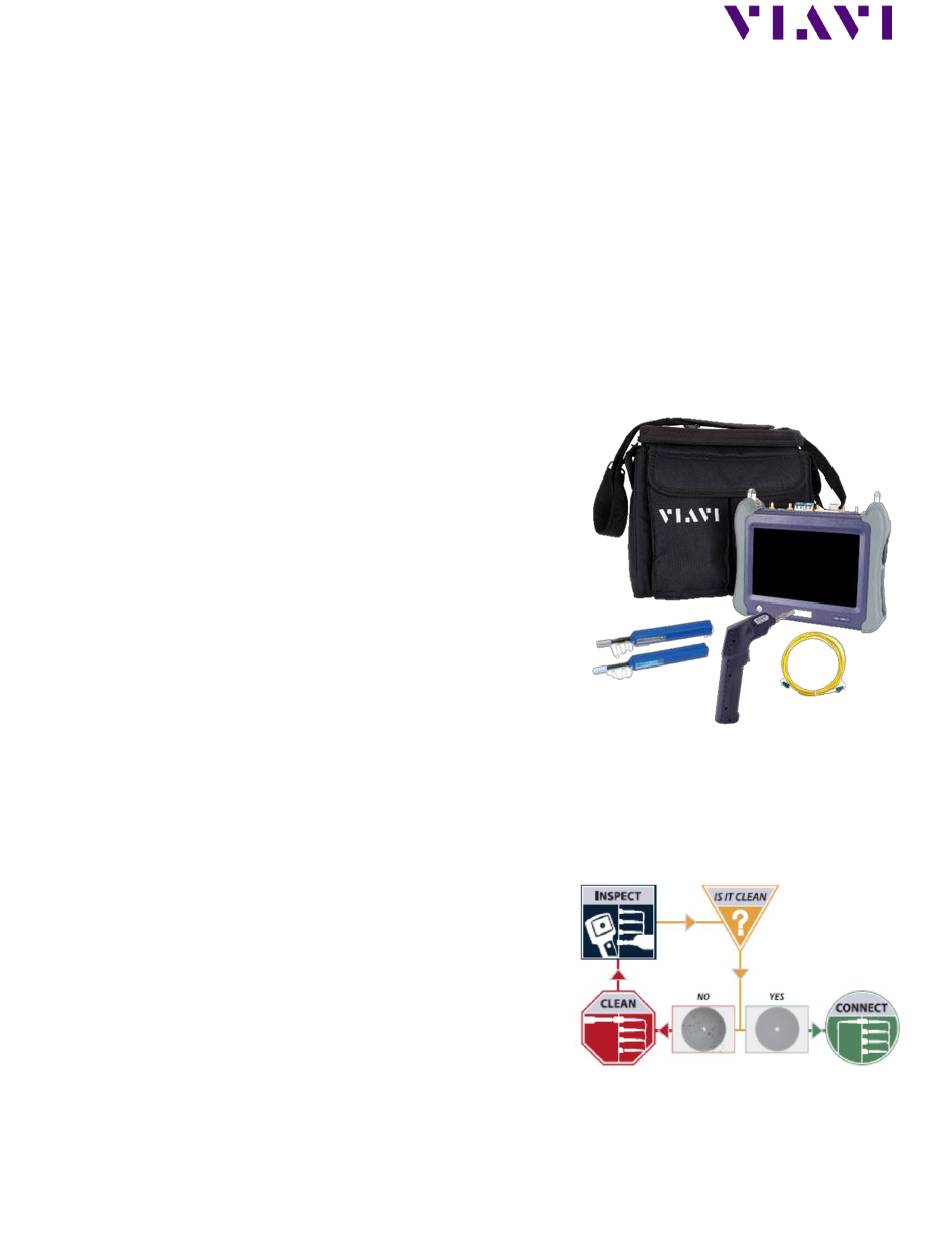

Figure 1: Equipment Requirements
Figure 2: Inspect Before You Connect (IBYC)
