Fiber characterization chromatic dispersionreferencing procedure

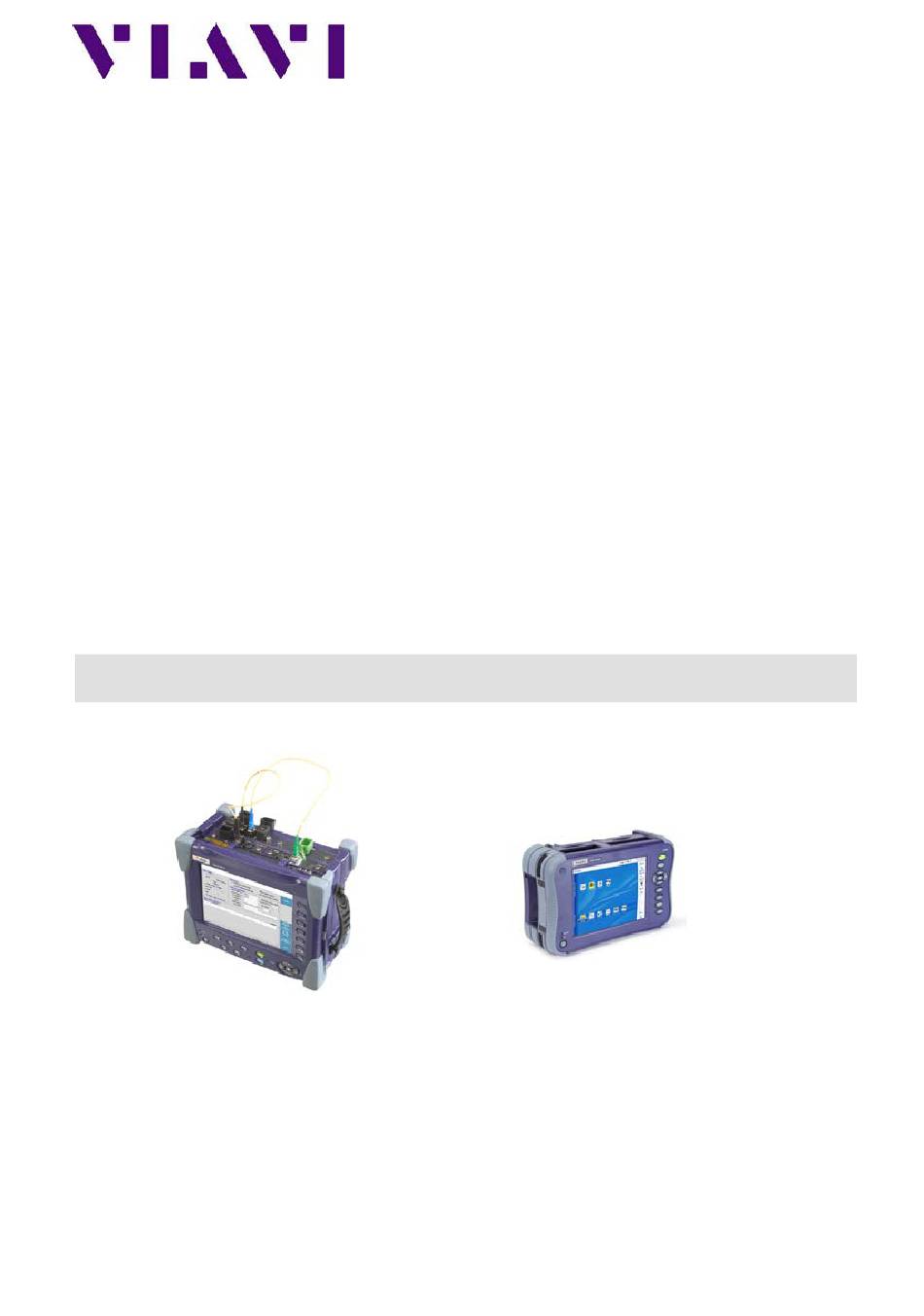

T-BERD/MTS 8000 and 6000A

FIBER CHARACTERIZATION

CHROMATIC DISPERSION REFERENCING

The following procedure describes how to perform a Chromatic Dispersion referencing with the

use of an MTAU and a CD module into a T-BERD/MTS 8000V2. This measurement is done to

ensure that the broadband source is taken into account for an accurate qualification of the fiber to

test. This procedure is a two ended test

Note 1: Both products must be at the same location

Note 2: it is possible to apply a new reference to an existing CD result

Please read the entire procedure BEFORE starting.

8000V2 Platform - Fiber Characterization Getting Started – V1.3 - Oct 2015 –

PROCEDURE

QUICK GUIDE

Table of Contents

Need help?

Do you have a question about the T-BERD/MTS 8000 and is the answer not in the manual?

Page 1 Note 2: it is possible to apply a new reference to an existing CD result Please read the entire procedure BEFORE starting. 8000V2 Platform - Fiber Characterization Getting Started – V1.3 - Oct 2015 – Copyright 2015 Viavi Solutions. All rights reserved...
Page 2 Select Connecting both test sets Inspect and clean connectors of the fiber jumpers, the COM port of the T-BERD/MTS 8000 and the OTDR port of the T-BERD/MTS 6000A using the P5000i inspection scope. Connect the fiber jumper 1 to the T-BERD/MTS 8000 COM port of the MTAU module and to the mating adapter.
Page 3 RESULT Press the RESULT hard key Touch the soft key to turn the source on Touch the softkey to position the test mode as CD Performing AP referencing on the T-BERD/MTS 8000 SETUP Press the hard key. Touch the tab.
Page 4 Note: The date and s/n of the reference appear into the list. You know the new reference is loaded. Follow the above steps to change the reference again 8000V2 Platform - Fiber Characterization Quick Card FC4 – V1.3 - Oct 2015 – Copyright 2015 VIAVI Solutions. All rights reserved...
