T-BERD/MTS 5800 Portable Network Tester
QUICK CARD
ISDN Primary Rate Interface (PRI) Testing
This quick card describes how to configure and run a DS1 ISDN PRI Terminate Test to
validate the provisioning and performance of an ISDN PRI trunk.
•
T-BERD/MTS 5800 equipped with the following:
Transport software release V31.2.1 or greater
o
C5E1DS1 test option: E1/DS1 Electrical
o
o C5DUALPORT test option: Dual Port option
(required on T-BERD 5800-100G only)
•
Headset (Plantronics M114, Plantronics M210c, or
Benertech A310QD recommended)
•
One of the following T1 cable sets to connect the
T-BERD 5800 DS1 Port(s) to the line under test:
Two (2) Bantam to Bantam cables (CB-10615)
o
Dual Bantam to RJ-48C cable (CB-41645)
o
RJ-48C Patch cable (Straight-through or
o
cross-over depending upon equipment under
test)
C O N N E C T H E A D S E T A N D C O N F I G U R E A U D I O S E T T I N G S
Press the Power button
1.
T-BERD.
Connect the headset to the headset jack on
2.
the side of the T-BERD.
Press the System icon
3.
corner of the screen.
Press the Audio icon
4.
Volume to the maximum setting and set
Microphone Volume to the center setting.
If desired, you can adjust these settings
during the test. The speaker icon
on the top bar of the T-BERD provides a
shortcut to this screen.
T-BERD/MTS-5800 Portable Network Tester
to turn on the
in the top left
. Set Speaker
VIAVI//Public

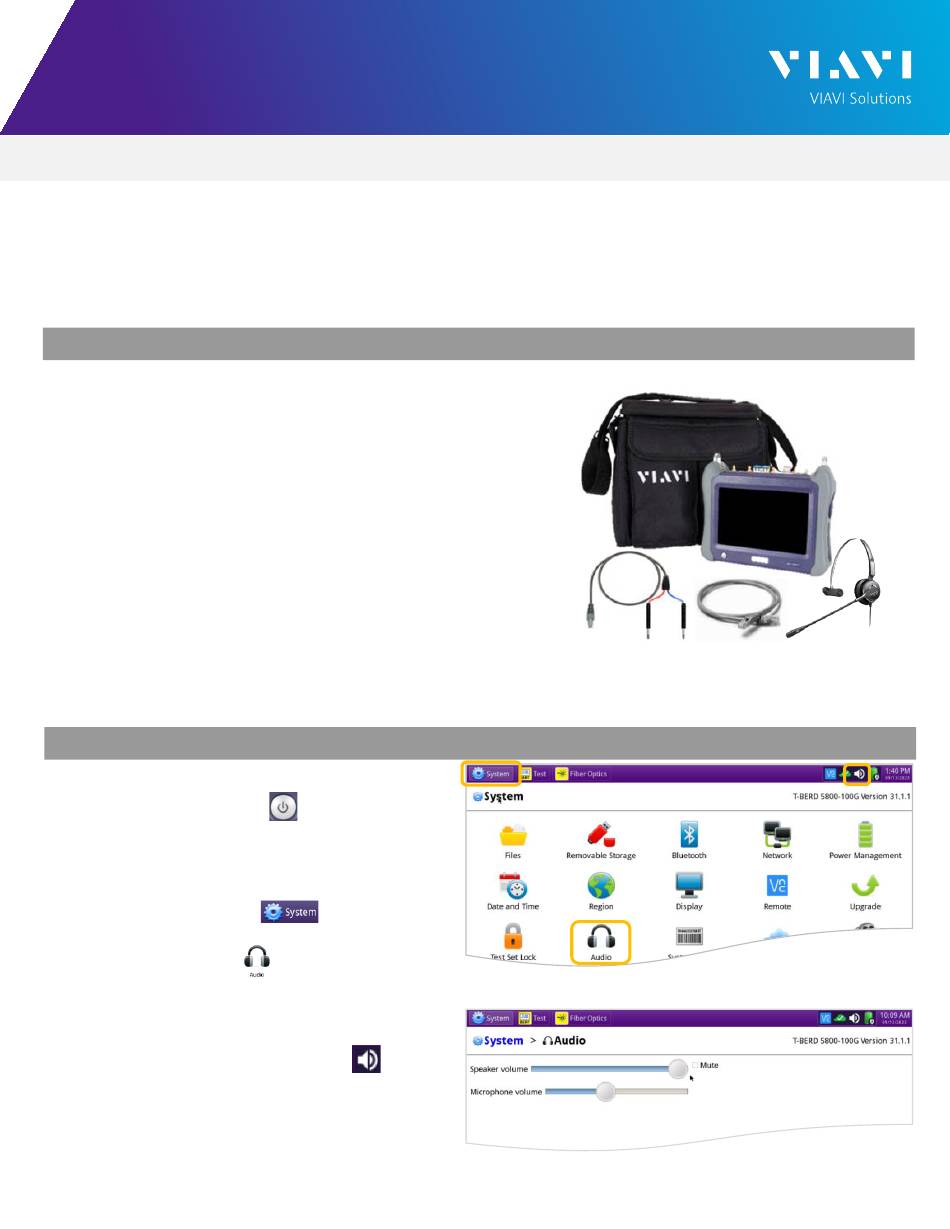

Figure 1: Equipment Requirements
Figure 2: System menu
Figure 3: Audio Settings
