Quick Card
®
T-BERD
/MTS-5800 Network Tester
TCP Throughput Testing to an iPerf v3 Server
This document provides instructions on how to configure and execute TCP Wirespeed Throughput test
from a T-BERD/MTS 5800 instrument to an iPerf v3 server.

Equipment Requirements:

• T-BERD/MTS-5800 equipped with the
following:
o BERT software release V28.1 or greater
o Ethernet and Layer4 test options:
▪ C510M1GE and C5LSLAYER4 for
10/100 Megabit or 1 Gigabit Ethernet
▪ C510GELAN and C510GLAYER4 for
10 Gigabit Ethernet
o SFP or SFP+ optical transceiver to match the
line under test
• Patch Cables to match the optical
transceiver and line under test (CAT5E,
Single mode or Multimode Fiber)
• Fiber optic inspection microscope (VIAVI
P5000i or FiberChek Probe)
• Fiber Optic Cleaning supplies
The following information is required to complete the test:
• Physical Interface (10/100/1000BASE-T, 1000BASE-SX, 1000BASE-LX, 10GBASE-LR, etc.)
• Auto Negotiation settings of the port under test.

Fiber Inspection Guidelines:

• All fiber end-faces must be clean and pass
an inspection test prior to connection.
• Use the VIAVI P5000i, FiberChek Probe, or
Sidewinder microscope to inspect both
sides of every connection being used
(SFP/QSFP Port, bulkhead connectors,
patch cables, etc.)

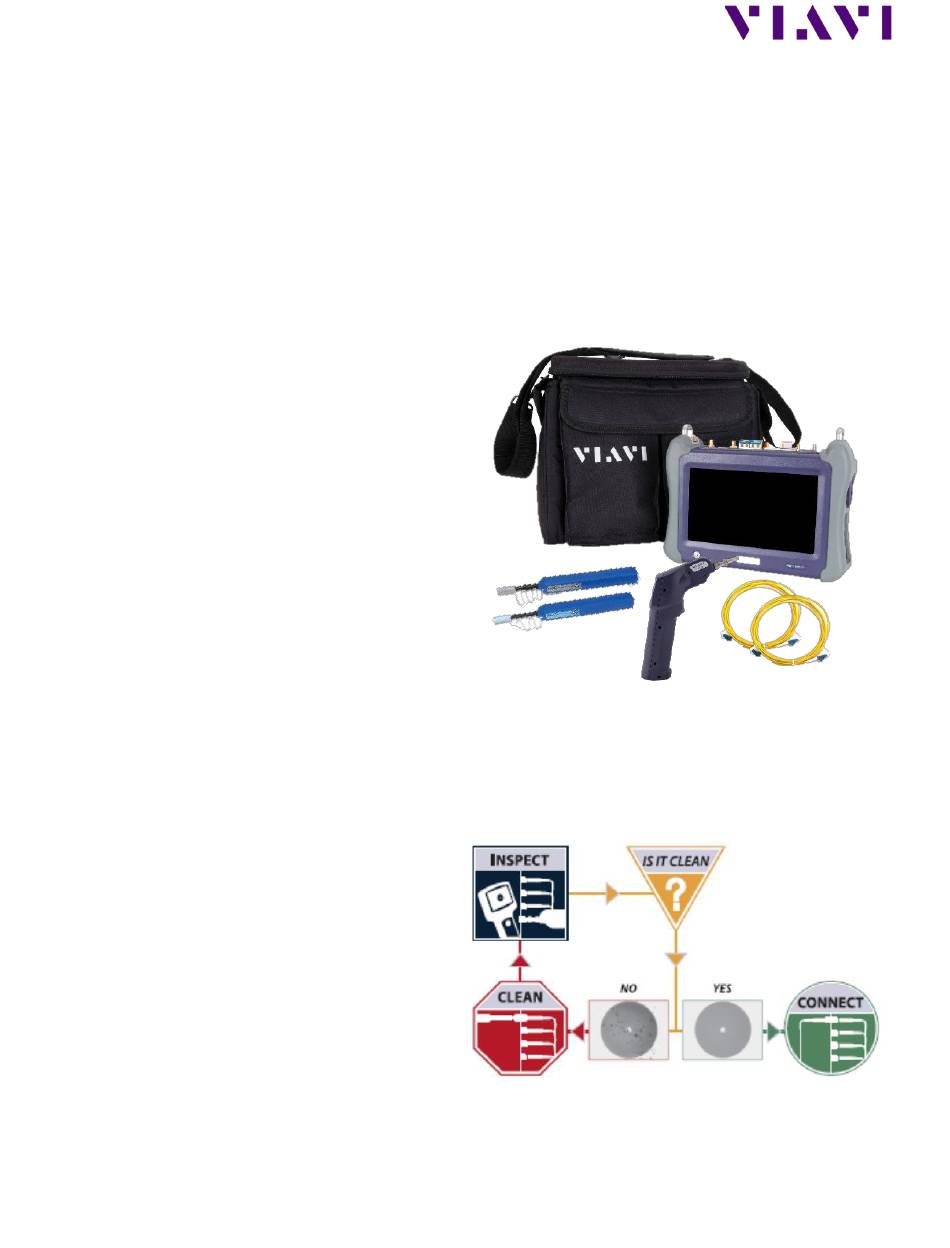

Figure 1: Equipment Requirements
Figure 2: Inspect Before You Connect
VIAVI Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-BERD/MTS-5800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viavi T-BERD/MTS-5800

  • Page 1 Fiber Inspection Guidelines: • All fiber end-faces must be clean and pass an inspection test prior to connection. • Use the VIAVI P5000i, FiberChek Probe, or Sidewinder microscope to inspect both sides of every connection being used (SFP/QSFP Port, bulkhead connectors, patch cables, etc.)
  • Page 2 VIAVI Solutions Connect to Fiber Under Test (FUT): 1. For copper 10/100/1000BASE-T interface testing with the T-BERD/MTS 5800v2, connect the Port 1 10/100/1000 RJ-45 jack to the port under test using CAT 5E or better cable. Figure 3: T-BERD 5800v2 2.
  • Page 3 VIAVI Solutions 5. Navigate to All Streams settings. 6. Configure appropriate Source IP, Subnet Mask and Default Gateway parameters for the TBERD 5800 test port, leave all other parameters at defaults. Figure 8: All Stream settings 7. Navigate to TCP Host settings.
  • Page 4 Figure 13: Create Report © 2020 VIAVI Solutions Inc. Contact Us +1 844 GO VIAVI To reach the VIAVI office nearest you, Product specifications and descriptions in this (+1 844 468 4284) visit viavisolutions.com/contacts. document are subject to change without notice.
