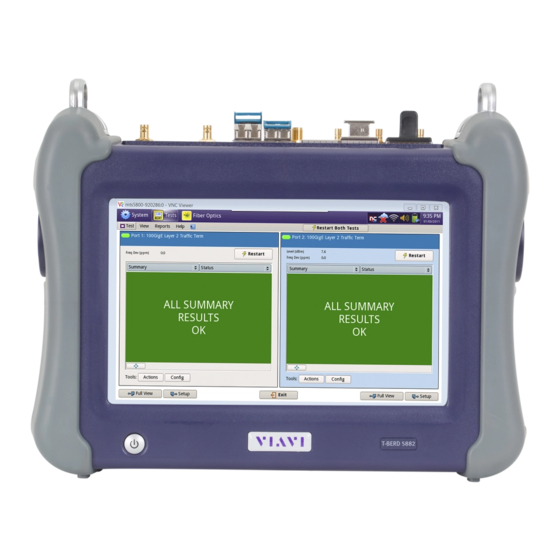

T-BERD/MTS 5800 Portable Network Tester
QUICK CARD
Updating Software via USB
This quick card outlines how to upgrade the SmartClass 4800 or T-BERD/MTS 5800 to the
latest software revision using a USB Flash Drive. Note: the software must be downloaded
to a PC and extracted to a formatted 4GB to 16GB USB flash drive. If the downloaded file
is copied directly to the USB flash drive, the upgrade will fail.
E Q U I P M E N T R E Q U I R E M E N T S
Equipment Requirements:
• Laptop or Personal Computer with
Internet Access
• 4GB to 16GB USB Flash Drive
F O R M AT U S B F L A S H D R I V E
1. Press the Power button
to turn on the test set.
2. Insert the USB Flash Drive into a USB
port on the side of the T-BERD/MTS test
set.
3. Tap the System icon
in the Status Bar at the top of the
display to show the System menu.
4. Tap the Removable Storage Icon
to show the Removeable Storage menu.
5. Tap to format the USB Flash
Drive.
6. Tap and remove the USB Flash
Drive from the USB port of the test set.
7. Insert the formatted USB flash drive
into your Laptop or Personal Computer.
T-BERD/MTS-5800 Portable Network Tester
Figure 1: Equipment Requirements
Figure 3: Removable Storage Menu
VIAVI//Public
Figure 2: System Menu
