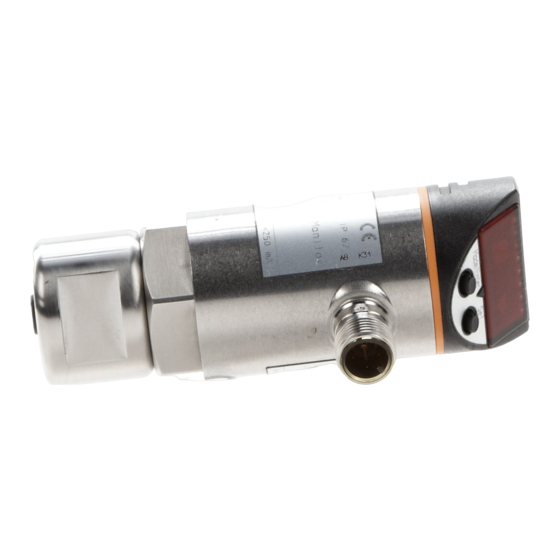

- Page 1 Operating instructions Programming and display unit PP2001...
-
Page 2: Table Of Contents
Contents 1 Preliminary note3 11 Explanation of symbols 3 2 Safety instructions 3 3 Items supplied 4 4 Functions and features 4 5 Function 4 6 Installation 5 7 Electrical connection5 71 Offline operation 5 71 Online operation 6 8 Operating and display elements 7 9 Menu8 91 Menu structure 8 10 Operation 9... -
Page 3: Preliminary Note3
1 Preliminary note 1.1 Explanation of symbols ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note: Non-compliance can result in malfunctions or interference 2 Safety instructions • Please read the product description prior to set-up of the unit Ensure that the product is suitable for your application without any restrictions •... -
Page 4: Items Supplied 4
3 Items supplied � � 1: PP2001 2: cable for connection of a sensor to PP2001 The following components are available as accessories (to be ordered separately): • Connection cable with M12 connector for voltage supply and output signals of the sensor (→ catalogue or www.ifm.com). • 24 V power supply (order no. E30080). 4 Functions and features The unit can be used for diagnosis and parameter setting of pressure sensors The sensor must be suitable for communication with PP2001 or PP2000 Check the indications in the operation instructions of the sensor •... -
Page 5: Installation 5
• It permits modification of the current parameters of the sensor • The unit has a rewriteable read-only memory It can store the parameter set of a sensor and transmit it to other sensors of the same type by means of simple actions (COPY and SEND). - Page 6 � � � ������ � � � � � � � 7.1 Online operation Operation with installed sensor during operation of the production plant � ���������� � � � ���������� ��� � � ���������� ��� ���������� � �� � � �...
-
Page 7: Operating And Display Elements 7
8 Operating and display elements � � � � � � � � � ���������� ��� �� �� 1 to 8: indicator LEDs - LED 2: green = indication of the system pressure in mbar - LED 2 + LED 1: green = indication of the system pressure in mWS - LED 3: green = indication of the system pressure in bar - LED 3 + LED 1: green = indication of the system pressure in mmWS - LED 4: green = indication of the system pressure in kPa... -
Page 8: Menu8
9 Menu 9.1 Menu structure ��� � � � � � � � � � � � � � � � � � � � � � � � � � � � 1: sensor-specific parameters (depending on the connected sensor) 2: action points of the PP2001... -
Page 9: Operation 9
10 Operation 10.1 Connection of a sensor / initialisation ► Connect the sensor to PP2001 ► Apply operating voltage > Initial display is shown Sensor type (running display) > The current measured value is displayed PP2001 and sensor are operational Notes: • If only [COPY] and [SEND] are active in the operating mode, the connected sensor does not support the parameter setting and editing functions Only the evaluating function (Transmission of the output signals, → 10.6) and the copy functions (→ 10.3 and 10.5) are supported. - Page 10 10.2 Setting the sensor parameters During parameter setting the unit remains in the operating mode It continues its monitoring function with the existing parameters until the parameter setting has been completed The following steps must be taken for each parameter setting: ►...
- Page 11 • With this parameter setting only the parameter set of the sensor is changed The parameter set stored in PP2001 remains unchanged • Do not activate the action point [SEND] This would cause the param- eter set stored in PP2001 to be transferred to the sensor •...
- Page 12 10.3 Copying the parameter set of a sensor ► Connect the sensor to PP2001 > The unit passes the initialisation phase (→ 10.1) and then displays the current measured value ► Press [Mode/Enter] until [COPY] is displayed. ���������� ��� ► Press [Set] and keep it pressed >...
- Page 13 10.4 Changing a stored parameter set ► Apply operating voltage > Initial display is shown Sensor type (running display) ► As soon as the running display ap- pears: press [Mode/Enter] briefly ���������� ��� > [EDIT] is displayed ► Press [Set] for 5 s >...
- Page 14 10.5 Transferring a parameter set to other sensors ► Press [Mode/Enter] until [SEND] is displayed. ���������� ��� ► Press [Set] and keep it pressed > [WAIT] flashes ���������� ��� ► Release [SET] > [DONE] is briefly displayed, then again [SEND] The copying process is finished and the parameter set of PP2001 is stored in the sensor...
- Page 15 10.6 Remote display / remote evaluation After connection of a sensor and initialisation (→ 10.1) the current measured value is diplayed The output signals of the sensor are transmitted and provided at the output of the PP2001 Reading of the set parameters ► Press [Mode/Enter] briefly: the parameters are displayed one after the other ►...
-
Page 16: Scale Drawing 16
11 Scale drawing � � �� �� � � �� �� �� � � Dimensions in mm 1: 4-digit alphanumeric display 2: LEDs (display unit / switching status) 3: programming button 4: connection for voltage supply and output signals 5: connection for sensor 6: nut... -
Page 17: Technical Data 17
12 Technical data Operating voltage [V] 18 32 DC Current rating [mA] 250 Short-circuit protection (pulsed); protected against reverse polarity and overload Voltage drop [V] < 2 Current consumption [mA] < 40 Power-on delay time [s] 1.5...10 *) Response time for transferring the sensor output signal [ms]OU1 < 50 / OU2 = 0 Measurement / display cycle time [ms]200 Housing materials stainless steel (316S12); EPDM/X (Santoprene); PC Copolymer;...
