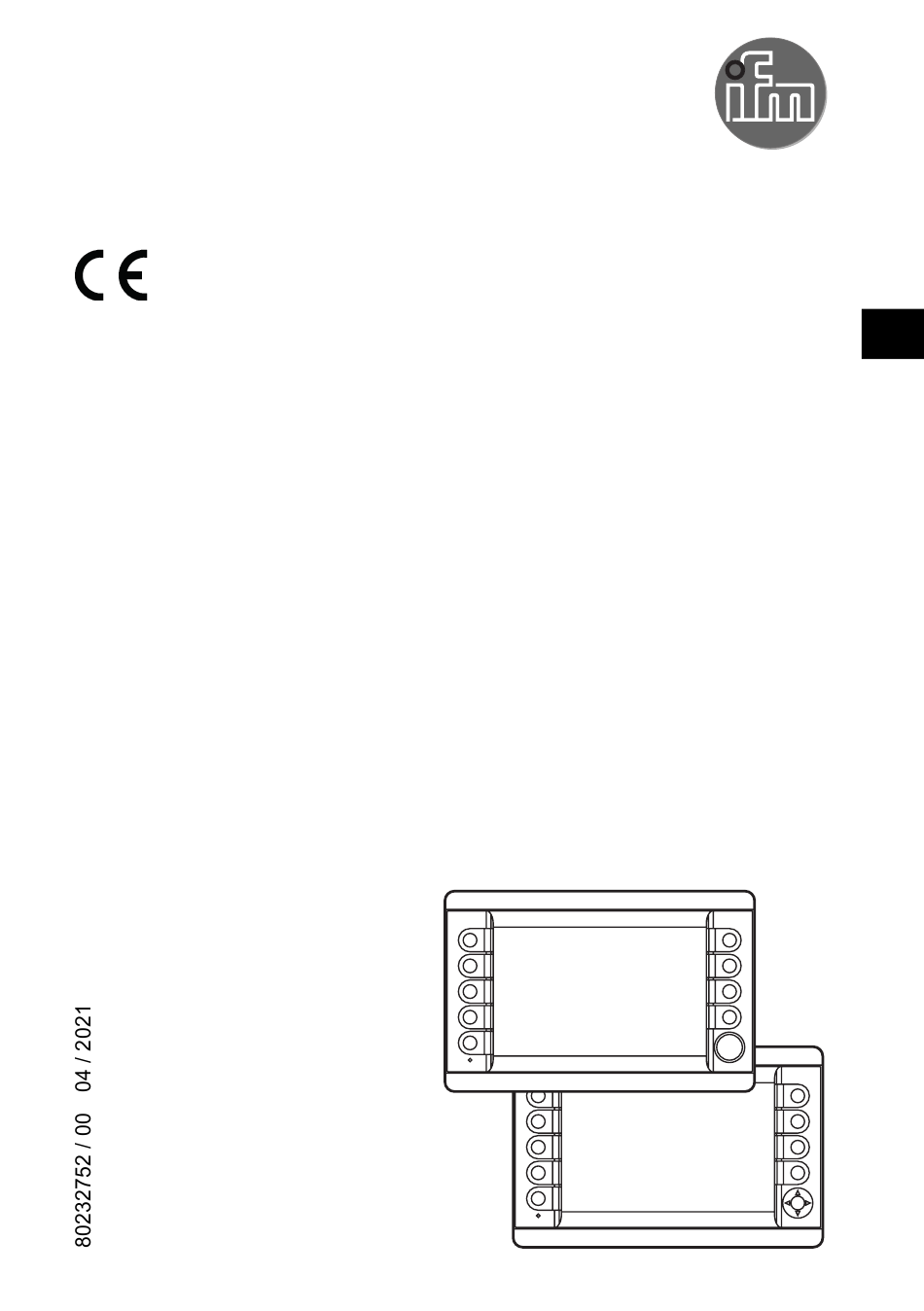

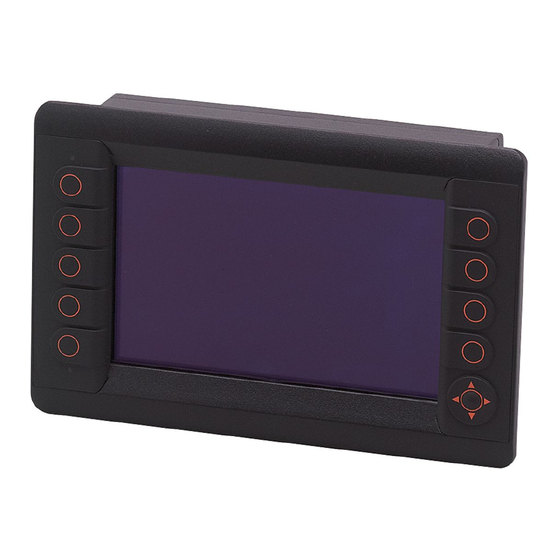

  • Page 1 Installation instructions Process and dialogue module PDM360 NG CR1080 CR9223 CR1081 CR9224 CR1082 CR1084 CR9226 CR1085 CR9227...

  • Page 2: Table Of Contents

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) Contents 1 Preliminary note � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 1�1 Symbols used�...
  • Page 3 PDM360 NG process and dialogue module (CR1080/81/82/84/85) 6�4 Required documentation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21 7 Technical data�...

  • Page 4: Preliminary Note

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 1 Preliminary note This document applies to devices of the type "PDM360 NG"� These instructions are part of the device� This document is intended for specialists� These specialists are people who are qualified by their appropriate training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device�...

  • Page 5: Safety Instructions

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 2 Safety instructions 2.1 General These instructions contain texts and figures concerning the correct handling of the device and must be read before installation or use� Observe the operating instructions� Non-observance of the instructions, operation which is not in accordance with use as prescribed below, wrong installation or incorrect handling can seriously affect the safety of operators and machinery�...

  • Page 6: Functions And Features

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 3 Functions and features The PDM360 NG process and dialogue module is a programmable graphic display for controlling, parameter-setting and operation of mobile machines and plants� Communication with other system components, e�g� decentralised I/O modules, is handled via a CAN interface using the CANopen protocol�...

  • Page 7: 3�2 Overview Of The Common Characteristics

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 3.2 Overview of the common characteristics ● 7" Colour display ● Programmable backlit function keys ● Closed metal housing suitable for panel mounting and surface mounting outside or in the cabin ● Freely programmable to IEC 61131-3 with target visualisation ●...

  • Page 8: Installation

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 4 Installation 4.1 Mounting accessory The unit is supplied without mounting accessories� Depending on the intended location and type of mounting the following mounting accessories are available: ● EC2110, mounting frame for panel mounting incl� mounting material and seal ●...

  • Page 9: 4�2�2 Orientation Of The Device With Panel And Surface Mounting

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 4.2.2 Orientation of the device with panel and surface mounting Horizontal orientation for panel and surface mounting 4.2.3 Light sensor The device is equipped with a light sensor� It is used for automatic brightness adaptation of the display and the operating elements to the ambient brightness�...

  • Page 10: 4�3 Panel Mounting Using The Mounting Frame

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) www�Schutzfolien24�com by indicating the type of unit CR108x� 4.3 Panel mounting using the mounting frame The mounting frame ensures horizontal, vertical or up-side down mounting of the device in a panel cutout� This type of mounting is suited for materials with a thickness from 1 to 10 mm�...

  • Page 11: 4�3�1 Mounting Steps

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 4.3.1 Mounting steps Mounting principle Installation depth A: approx� 60���65 mm (depending on the panel thickness and the length of 1: mounting frame with M5 hexagon nuts (self- the set screws, without connector)
  • Page 12 PDM360 NG process and dialogue module (CR1080/81/82/84/85) Attached seal Removed long sides ► Screw the set screws into the M5 thread on the back of the device� (→ 4.2.1 Locator for mounting accessories) Select the set screws in accordance with the panel thickness�...

  • Page 13: 4�4 Surface Mounting With Ram

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 4.4 Surface mounting with RAM mount system ® Using the RAM mount components, available as accessories, the dialogue ® unit can be used as a firmly mounted desktop unit� Two balls allow a variable orientation of the unit�...

  • Page 14: Electrical Connection

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 5 Electrical connection 5.1 Connection accessories You can find more information about the available accessories at: www.ifm.com → data sheet search → CR1080 → Accessories www.ifm.com → Products → Accessories → Connection technology 5.2 General electrical connection...

  • Page 15: 5�3 Operating Voltage And Fuses

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 5.3 Operating voltage and fuses ► To protect the device use fuses for the operating voltages� Description Potential Connector 1 Fuse Operating voltage 10…32 V DC pin 1 max� 5 A clamp 30...
  • Page 16 PDM360 NG process and dialogue module (CR1080/81/82/84/85) GND connection To avoid contact corrosion on the shield connection of the device, do not use any copper or nickel-plated materials for the bolting elements! ► In very corrosive environments such as extremely salty air, use screws with...

  • Page 17: 5�5 Ethernet Interface

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 5.5 Ethernet interface ► Use a shielded CAT5 cable� STP, Shielded Twisted Pair, according to EIA/TIA-568� Max� length 25 m The max� cable length depends for example on the bus topology, the selected operating mode (10/100 Mbits/s) or the quality of the connectors�...

  • Page 18: 5�7 Usb Interfaces

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 5.7 USB interfaces The USB interfaces are used for the temporary connection of an external keyboard, a mouse or a USB memory stick� They are not intended for actual operation� ► Remove the USB devices after their use�...

  • Page 19: 5�7�2 Short-Circuit Protection

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 5.7.2 Short-circuit protection NOTE The USB interface (M12 connector) is not protected against short circuits with a live wire outside the following voltage ranges: –data 0�3���3�6 V DC (3: pin 2) +data 0�3���3�6 V DC (3: pin 3) 0�3���3�6 V DC...

  • Page 20: Set-Up

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 6 Set-up 6.1 General As delivered the device is prepared for programming with CODESYS version 2�3 or higher� Factory setting: IP address: 192�168�82�247 Subnet mask: 255�255�255�0 The user is responsible for the safe function of the application programs which he created himself�...

  • Page 21: 6�4 Required Documentation

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) After leaving the set-up a project can be loaded� Libraries (�lib) are available for the use of the operating elements, interfaces and other internal functions of the device� They have to be integrated into the application program�...

  • Page 22: Technical Data

    IP 65 (with mounted connectors and/or protective caps) Operating temperature -30���65° C Storage temperature -30���80° C Weight approx� 1�5 kg ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1080 / page 1 12�01�2018...
  • Page 23 CODESYS version 2�3 or CODESYS from version 3�5 SP8 (IEC 61131-3) Graphic functions via integrated target visualisation ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1080 / page 2...
  • Page 24 EN 50155 clause 12�2 mechanical/climatic tests EN 50121-3-2 EMC noise emission and noise immunity additional information on request ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1080 / page 3 12�01�2018...
  • Page 25 CAN3_H (OUT) CAN3_L CAN2_GND (OUT) CAN3/4_GND (OUT) CAN2_H CAN4_H CAN2_L CAN4_L (7) N/A (8) N/A ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1080 / page 4 12�01�2018...

  • Page 26: 7�2 Cr1081

    IP 67 (with mounted connectors and/or protective caps) Operating temperature -30���65° C Storage temperature -30���80° C Weight approx� 1�5 kg ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1081 / page 1 12�01�2018...
  • Page 27 CODESYS version 2�3 or CODESYS from version 3�5 SP8 (IEC 61131-3) Graphic functions via integrated target visualisation ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1081 / page 2...
  • Page 28 EN 50155 clause 12�2 mechanical/climatic tests EN 50121-3-2 EMC noise emission and noise immunity additional information on request ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1081 / page 3 12�01�2018...
  • Page 29 CAN3_H (OUT) CAN3_L CAN2_GND (OUT) CAN3/4_GND (OUT) CAN2_H CAN4_H CAN2_L CAN4_L (7) N/A (8) N/A ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1081 / page 4 12�01�2018...

  • Page 30: 7�3 Cr1082

    IP 67 (with mounted connectors and/or protective caps) Operating temperature -30���65° C Storage temperature -30���80° C Weight approx� 1�5 kg ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1082 / page 1 12�01�2018...
  • Page 31 Characteristics of the output Switching voltage 10���32 V DC Switching current ≤ 1 A Free-wheeling diodes integrated ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1082 / page 2 12�01�2018...
  • Page 32 5 Hz boot process system recovery/update 2 Hz system recovery/update running briefl y on System reset ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1082 / page 3 12�01�2018...
  • Page 33 EN 50155 clause 12�2 mechanical/climatic tests EN 50121-3-2 EMC noise emission and noise immunity additional information on request ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1082 / page 4 12�01�2018...
  • Page 34 (8) N/A Shield GND (video 2) GND (video 1) FBAS1 (video 1) FBAS2 (video 2) ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1082 / page 5 12�01�2018...

  • Page 35: 7�4 Cr1084

    IP 65 (with mounted connectors and/or protective caps) Operating temperature -30���65° C Storage temperature -30���80° C Weight approx� 1�5 kg ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1084 / page 1 12�01�2018...
  • Page 36 Characteristics of the output Switching voltage 10���32 V DC Switching current ≤ 1 A Free-wheeling diodes integrated ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1084 / page 2 12�01�2018...
  • Page 37 5 Hz boot process system recovery/update 2 Hz system recovery/update running briefl y on System reset ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1084 / page 3 12�01�2018...
  • Page 38 EN 50155 clause 12�2 mechanical/climatic tests EN 50121-3-2 EMC noise emission and noise immunity additional information on request ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1084 / page 4 12�01�2018...
  • Page 39 (8) N/A Shield GND (video 2) GND (video 1) FBAS1 (video 1) FBAS2 (video 2) ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1084 / page 5 12�01�2018...

  • Page 40: 7�5 Cr1085

    IP 67 (with mounted connectors and/or protective caps) Operating temperature -30���65° C Storage temperature -30���80° C Weight approx� 1�5 kg ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1085 / page 1 12�01�2018...
  • Page 41 Characteristics of the output Switching voltage 10���32 V DC Switching current ≤ 1 A Free-wheeling diodes integrated ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1085 / page 2 12�01�2018...
  • Page 42 5 Hz boot process system recovery/update 2 Hz system recovery/update running briefl y on System reset ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1085 / page 3 12�01�2018...
  • Page 43 EN 50155 clause 12�2 mechanical/climatic tests EN 50121-3-2 EMC noise emission and noise immunity additional information on request ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1085 / page 4 12�01�2018...
  • Page 44 (8) N/A Shield GND (video 2) GND (video 1) FBAS1 (video 1) FBAS2 (video 2) ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR1085 / page 5 12�01�2018...

  • Page 45: Maintenance, Repair And Disposal

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 8 Maintenance, repair and disposal 8.1 Battery change 1: service cover 1: battery cover 2: socket head screws 2: indentation for opening 3: battery case ► Remove the service cover on the back of the unit�...

  • Page 46: 8�3 Cleaning The Housing Surface

    PDM360 NG process and dialogue module (CR1080/81/82/84/85) 8.3 Cleaning the housing surface ► Disconnect the device� ► Clean the device from dirt using a soft, chemically untreated and dry cloth� ► In case of heavy dirt, use a damp cloth�...
