Escort MAX 360c - Intelligent 360 Radar Laser Detection Manual

Introduction

You've just purchased the MAX 360c International with 360° directional arrows, GPS-based intelligence, plus Bluetooth® and Wi-Fi connectivity.

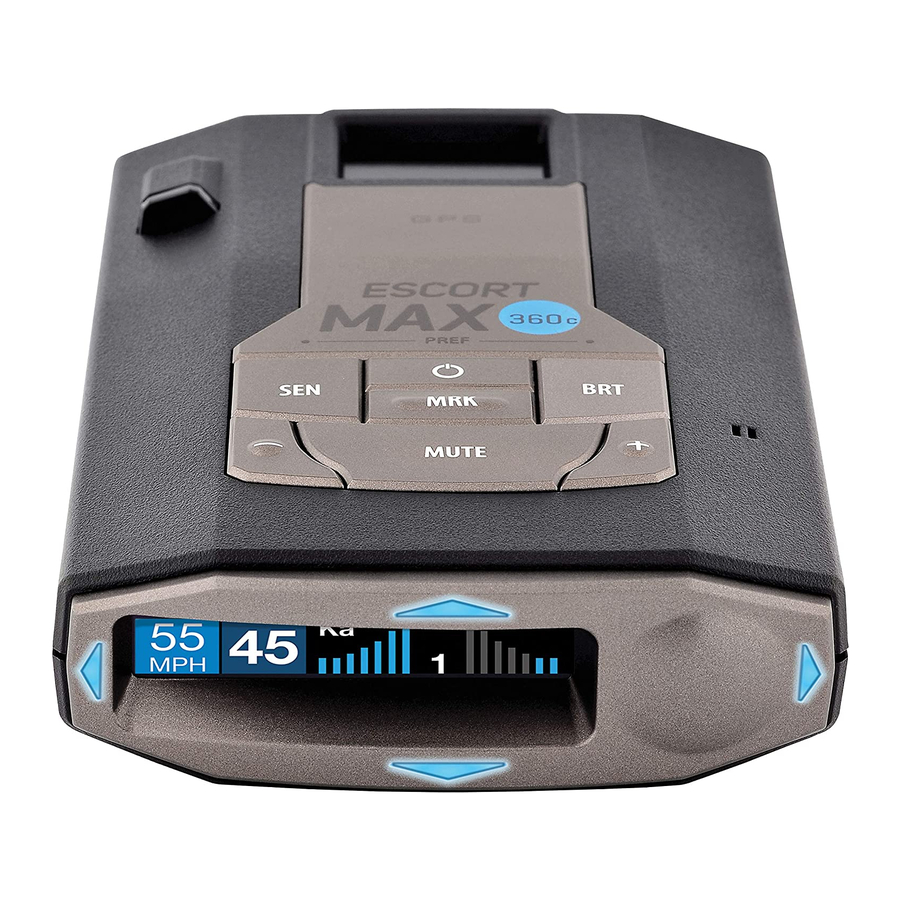

MAX 360c features a new multi-color OLED display. Brilliant graphics illuminate intuitive icons that identify the type of threat at a glance.

MAX 360c Features

• Front and rear radar receivers offer 360° ticket protection.
• Threat direction arrows report the direction an alert is coming from.
• MAX 360c's GPS location-based intelligence automatically locks out false alerts and allows you to mark locations for future reference.
• Using Wi-Fi, MAX 360c gives you wireless access ® to ESCORT's DEFENDER Database, which warns you of verified speed traps, speed cameras, and red light cameras.
• MAX 360c with built in Bluetooth ® and Wi-Fi technology, gives you access to ESCORT's award-winning app, ESCORT Live. Our exclusive real-time ticket-protection network which warns you of upcoming alerts received and reported by other users in the area, and gives you access to local speed limit data for over-speed alerts.

Registration and ESCORT Live

Before downloading ESCORT Live, you must first register your device. Be sure to have your device nearby, as you will need its serial number.

1. Visit www.EscortRadar.com and click Product Registration.
2. Click the "Registration for all devices" link.
3. Follow the onscreen instructions to register your device. Be sure to write down the username and password you create, as you will need this information to access and download ESCORT Live. (You will also receive an e-mail with this information, once you have registered your device.)

For iPhone:

1. Ensure MAX 360c power is ON
2. Open the App Store on your iPhone and search for ESCORT Live Radar.


3. Follow the onscreen instructions to download ESCORT Live Radar and then open the app.
4. When prompted, enter the username and password you created when registering your product at EscortRadar.com.
5. Press the Settings button then select Devices.
6. You should see MAX 360c INTL listed with Not Connected underneath.

   Press the MAX 360c INTL device entry and when prompted select Pair.
7. The Bluetooth icon on the MAX 360c display will appear to confirm that it is paired to your iPhone.

For Android based smartphones:

1. Ensure MAX 360c power is ON.
2. On your smartphone go to Bluetooth^® Settings and make sure that Bluetooth® is ON.
3. Press Scan for devices and wait for the device list to populate, MAX 360c INTL Live should appear under Available devices.
4. Press the MAX 360c INTL device entry.
5. The Bluetooth icon on the MAX 360c display will appear to confirm that it is paired to your smartphone.
6. Open Google Play on your smartphone and search for Escort Live Radar.



7. Follow the onscreen instructions to download Escort Live Radar and then open the app.
8. When prompted, enter the username and password you created when registering your product at EscortRadar.com.
9. Open the app, walk through the tutorial, and you're ready to hit the road!

Installation

Your new detector comes with our latest EZ Mag Mount™. Simply tilt the display end of the detector up and slide it onto the mounting bracket. The magnetic mount holds the detector in place. To remove the detector from the mount, simply lift the display end of the detector and the detector releases from the mount.

Mounting Tips:

• Center of windshield between driver and passenger.
• Ensure clear view of road ahead and sky above.
• Avoid windshield wipers and heavily tinted areas.

To mount the detector in your vehicle:

1. Remove paper backing from EZ Mag Mount™ StickyCup.
2. Ensure the locking clamp is open.
3. Firmly press EZ Mag Mount™ StickyCup onto windshield and close the locking clamp to secure.
4. To adjust view, loosen thumb wheel and adjust angle of mounting bracket. Tighten thumb wheel to secure.
5. Tilt the display end of the detector slightly upward and engage with the flanged edge of the mounting bracket. The EZ Mag Mount™ magnet holds the detector in place.
6. To remove the detector, simply lift the display end of the detector upward. The detector will release from the mount.
7. To remove mount from windshield, release locking clamp and pull tab on top of StickyCup.

EZ Mag Mount™ Care Instructions:
Should the EZ Mag Mount™ StickyCup accumulate debris and lose its stickiness, simply rinse under warm water, gently wipe off debris and allow to air dry.

Controls & Features

Using MAX 360c

1. Plug small end of SmartCord USB into modular jack on MAX 360c and large end of SmartCord USB into your car's lighter/accessory socket.
2. MAX 360c should power on automatically. If not, press the device's power button .

Using Wi-Fi Connect
To connect MAX 360c to your connected vehicle's Wi-Fi network.

1. Follow the directions to register your MAX 360c, download the ESCORT Live app and pair the MAX 360c to your smartphone.
2. Connect your smartphone to your connected vehicle's Wi-Fi hotspot.
3. In the ESCORT Live app press Settings, select Wi-Fi Settings then Connect to Wi-Fi Network.
4. Enter your connected vehicle's Wi-Fi network password.

The speed limit indicator on the MAX 360c display will change to white indicating that it is connected to a Wi-Fi network.

Earphone Jack

Using SmartCord USB

• Mute Button:
  • Press to mute the audio for a specific alert.
  • Press three times to lock out a false alert.
  • Press twice while receiving a locked-out alert to unlock.
  • When connected to ESCORT Live press and hold mute button on unit or cord to manually report to other users a verified X or K-band alert, or a police officer observing traffic.
• Alert Light: Blinks red when receiving a radar or laser alert.
• Power Light: Lights green when receiving power.
• USB Charging Port: Charge smartphones, tablets and other USB-charged Devices.


Controls & Features

Settings & Preferences

Press and hold the SEN and BRT buttons to access Preferences. To exit Preferences, simply wait a few seconds without pressing a button. The unit will display Completed to confirm your selections.

NOTE selecting Russian language during first startup uses default band settings with the following exceptions: Strelka On, Ka Band Off.

Notes for Settings & Preferences

For descriptions of features and functions available when connected to ESCORT Live, visit EscortRadar.com and download the MAX 360c Owner's Manual. To view serial number and software revision press MRK and MUTE while powering on detector.

To restore MAX 360c to its original factory Settings, press and hold MRK and BRT while turning the power on. A "Restored" message will display, acknowledging the reset.

Software Updates

In its factory default setting, immediately after MAX 360c has connected to a Wi-Fi network you will be prompted to install any available firmware and database updates. See Using Wi-Fi Connect for connection instructions.

The MAX 360c operating firmware and red light and speed camera database can also be updated using a USB A/Mini B cable (not included) connected to a computer using our detector software tools found on our web site. In order to have access to these updates, please register your MAX 360c at www.EscortRadar.com

Warranty

ESCORT One Year Limited Warranty
What this warranty covers: Escort, Inc. ("Escort") warrants your Product against all defects in materials and workmanship.

For how long: One (1) year from the date of original purchase from an authorized Escort dealer.

To obtain service:

1. Contact ESCORT (1-800-543-1608) to obtain a Return Authorization Number.
2. Properly pack your Product and include: your name, complete return address, written description of the problem with your Product, daytime telephone number, and a copy of the original proof of purchase or receipt.
3. Label the outside of the package clearly with your Return Authorization Number. Ship the Product pre- paid (insured, for your protection) to: ESCORT, Inc., 5440 West Chester Rd., West Chester, OH 45069.

Contact Us

Accessories:
800.433.3487
EscortRadar.com

Designed in the USA by Escort, Inc.
Manufactured in the Philippines ESCORT Inc.
5440 West Chester Road
West Chester OH 45069
Sales / Service 800.433.3487
www.EscortRadar.com

©2018 ESCORT Inc. ESCORT®, MAX 360c®, Defender®, AutoLearn®, TrueLock™, AutoSensitivity™, SpecDisplay™, ExpertMeter™, ESCORT Live™, IVT Filter™, SmartMute™ and EZ Mag Mount™ are trademarks of ESCORT, Inc.

FCC NOTE: Modifications not expressly approved by the manufacturer could void the user's FCC granted authority to operate the equipment.
FCC ID:QKLM6C.CONTAINS FCC ID:TFB-1003.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that may cause undesired operation.

ESCORT Live Compatible

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ESCORT is under license.
