2

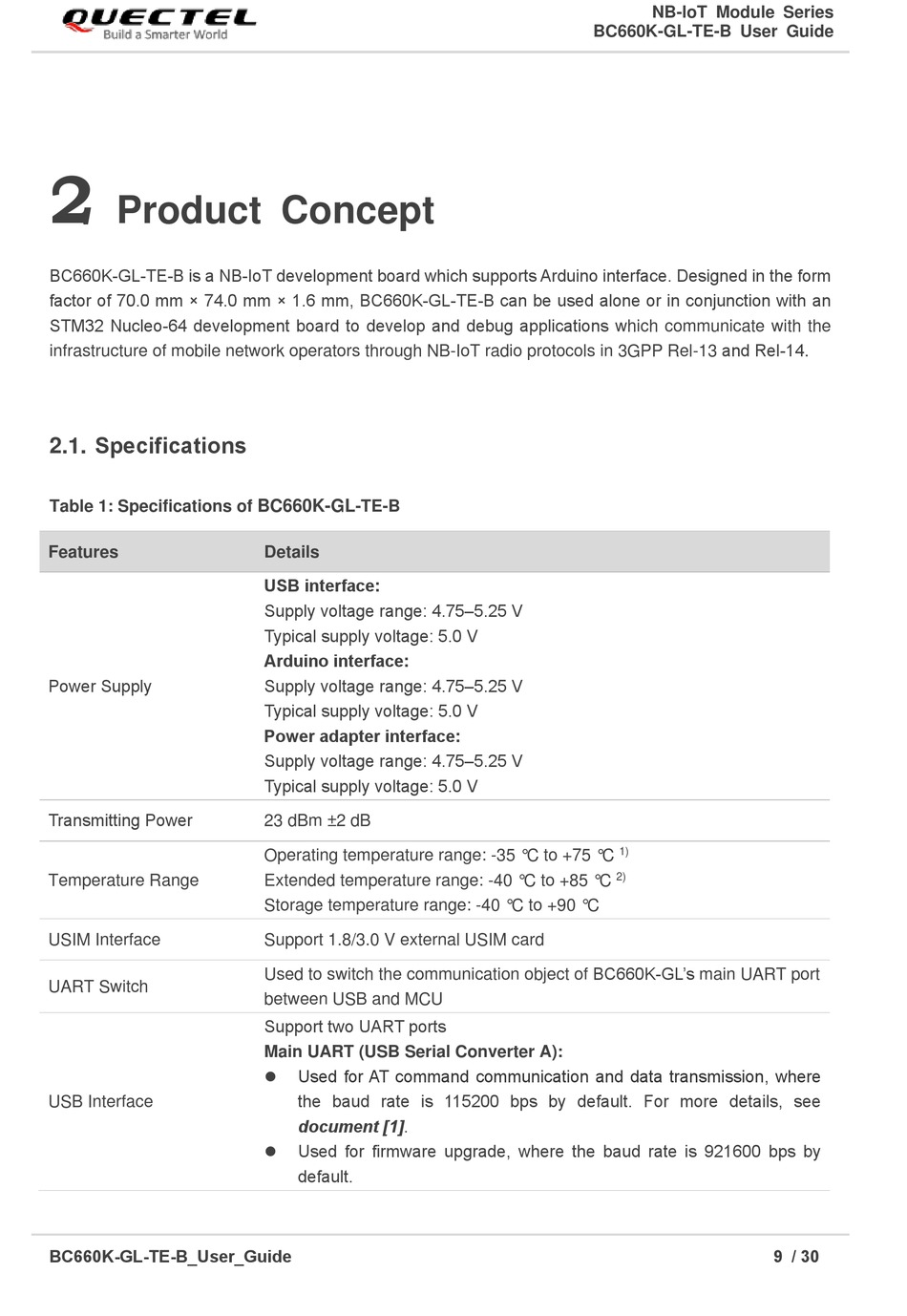

Product Concept
BC660K-GL-TE-B is a NB-IoT development board which supports Arduino interface. Designed in the form
factor of 70.0 mm × 74.0 mm × 1.6 mm, BC660K-GL-TE-B can be used alone or in conjunction with an
STM32 Nucleo-64 development board to develop and debug applications which communicate with the
infrastructure of mobile network operators through NB-IoT radio protocols in 3GPP Rel-13 and Rel-14.
2.1. Specifications
Table 1: Specifications of BC660K-GL -TE-B
Features
Power Supply
Transmitting Power
Temperature Range
USIM Interface
UART Switch
USB Interface
BC660K-GL-TE-B_User_Guide
Details
USB interface:
Supply voltage range: 4.75–5.25 V
Typical supply voltage: 5.0 V
Arduino interface:
Supply voltage range: 4.75–5.25 V
Typical supply voltage: 5.0 V
Power adapter interface:
Supply voltage range: 4.75–5.25 V
Typical supply voltage: 5.0 V
23 dBm ± 2 dB
Operating temperature range: -35 ° C to +75 ° C
Extended temperature range: -40 ° C to +85 ° C
Storage temperature range: -40 ° C to +90 ° C
Support 1.8/3.0 V external USIM card
Used to switch the communication object of BC660K-GL's main UART port
between USB and MCU
Support two UART ports
Main UART (USB Serial Converter A):
⚫
Used for AT command communication and data transmission, where
the baud rate is 115200 bps by default. For more details, see
document [1].
⚫
Used for firmware upgrade, where the baud rate is 921600 bps by
default.
NB-loT Module Series
BC660K-GL-TE-B User Guide
1)
2)
9 / 30
