*Included with select models only. Also available as an optional accessory.
**The Bowl design and material depend on the Stand Mixer model.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:
You can be killed or seriously injured if you don't immediately follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
When using electrical appliances, basic safety precautions should always be followed, including the following:
SAVE THESE INSTRUCTIONS
This product is designed for household use only.
![]() |

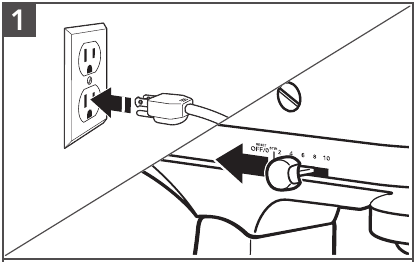

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. |
Voltage: 120 V
Frequency: 60 Hz
Wattage: 275 Watts MAX for models K45, KSM45-KSM80
300 Watts MAX for models KSM85-KSM110
325 Watts MAX for models KSM120-KSM200
NOTE: The power rating for your Stand Mixer is printed on the serial plate.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service technician install an outlet near the appliance.
The maximum rating is based on the attachment that draws the greatest load (power). Other recommended attachments may draw significantly less power.
Accessories | Use to mix | Suggested items |
Flat Beater Flex Edge Beater* | Normal to heavy mixtures | Cakes, creamed frostings, candies, cookies, biscuits, pie pastry, meatloaf, mashed potatoes. |
Wire Whip | Mixtures that need air incorporated | Eggs, egg whites, heavy cream, boiled frostings, sponge cakes, mayonnaise, some candies. |
Dough Hook | Mixing and kneading yeast doughs | Breads, rolls, pizza dough, buns. |
*Included with select models only. Also available as an optional accessory.
Note: The speed control can be set to obtain speeds 1, 3, 5, 7, and 9 if a finer adjustment is required. Do not exceed Speed 2 when preparing yeast doughs as this may cause damage to the Stand Mixer.
Speed | Accessory | Action | Description |
Stir | Flat Beater Flex Edge Beater* | Stir | For starting all mixing procedures, slow stirring, combining, and mashing. |
1 | |||
2 | Flat Beater Flex Edge Beater* | Slow mixing | For slow mixing, mashing, and faster stirring. |
Dough Hook | To mix and knead yeast doughs, heavy batters, and candies; mix thin or splashy batters. | ||
4 | Flat Beater Flex Edge Beater* | Mixing, beating | For mixing semi-heavy batters, such as cookies, or to combine sugar and shortening. Medium speed for cake mixes. |
Wire Whip | For adding sugar to egg whites for meringues. | ||
6 | Flat Beater Flex Edge Beater* | Beating, creaming | For medium-fast beating (creaming), or whipping. Use to finish mixing cake, doughnut, and other batters. High speed for cake mixes. |
Wire Whip | For medium-fast whipping of ingredients requiring incorporation of air, such as egg whites. | ||
8 | Wire Whip | Fast beating, whipping | For whipping cream, egg whites, and boiled frostings. |
NOTE: To move the Speed Control Lever with ease, lift slightly up as you move it across the settings in either direction.

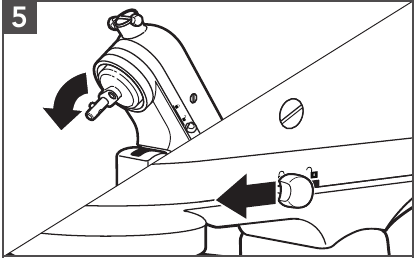

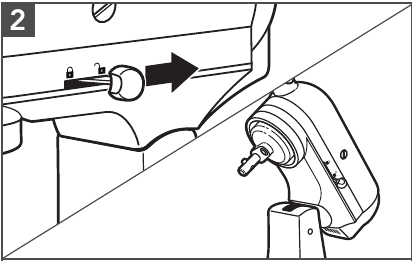

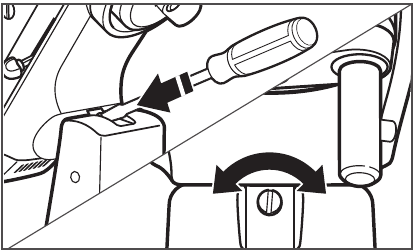

(OPTIONAL) To adjust Beater to Bowl Clearance: Tilt and lock** the Motor Head back. Turn the screw slightly counterclockwise (left) to raise the beater, or clockwise (right) to lower it.
NOTE: If you over-adjust the screw, the Bowl lock lever may not lock into place.

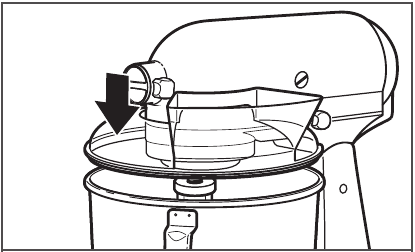

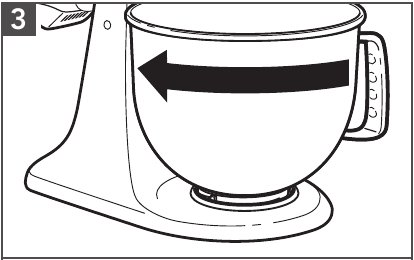

(OPTIONAL) Place the Pouring Shield*: Slide the Pouring Shield* from front of the Stand Mixer over the Vowl. The bottom rim of the Pouring Shield* fits inside of the Bowl*.
*Included with select models only. Also available as an optional accessory.
**Locking option is available on selected models.
***The Bowl design and material depend on the Stand Mixer model.
![]() |

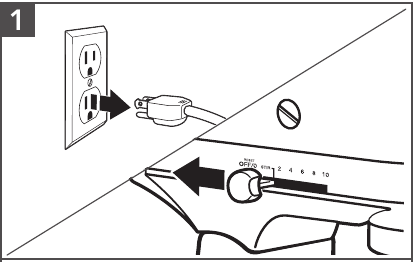

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. |

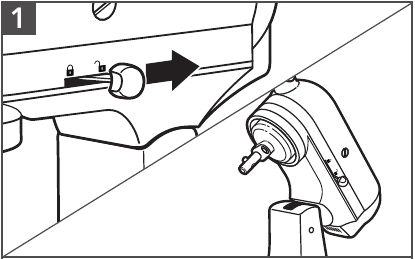

Injury Hazard Unplug mixer before touching beaters. Failure to do so can result in broken bones, cuts, or bruises. |

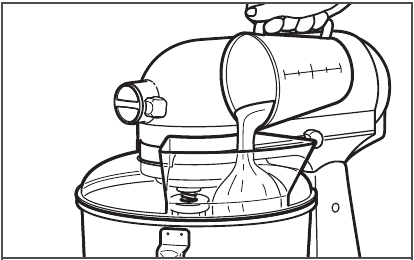

(OPTIONAL): Pour ingredients into the Bowl* through the Pouring Chute.
*The Bowl design and material depend on the Stand Mixer model.
*Locking option is available on selected models.
**Included with select models only. Also available as an optional accessory.
***The Bowl design and material depend on the Stand Mixer model.

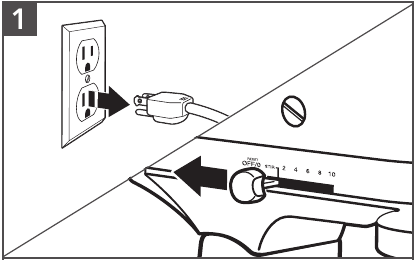

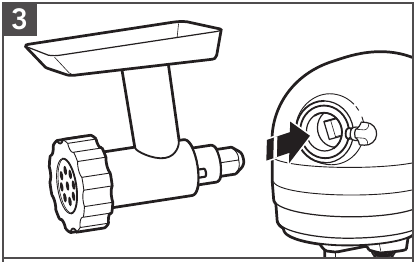

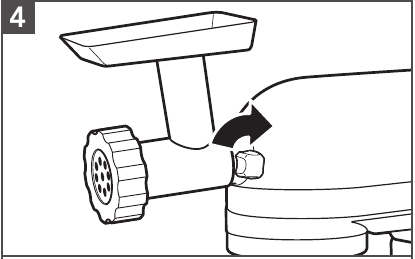

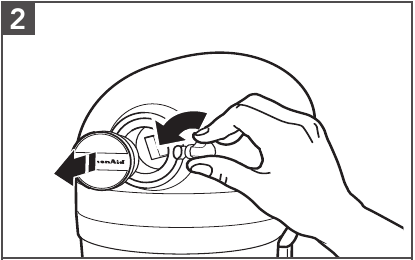

KitchenAid® offers a wide range of optional attachments such as the Spiralizer, Pasta Cutters, or Food Grinder that may be attached to the Stand Mixer attachment power hub as shown here.

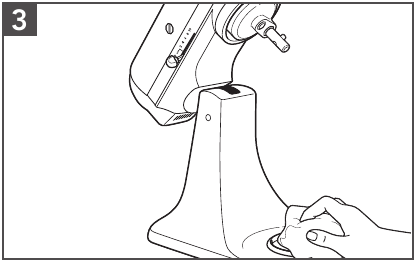

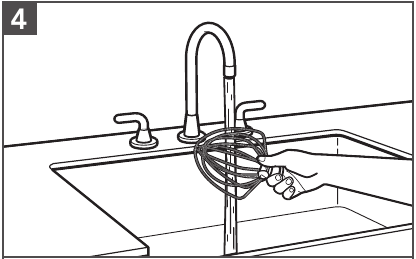

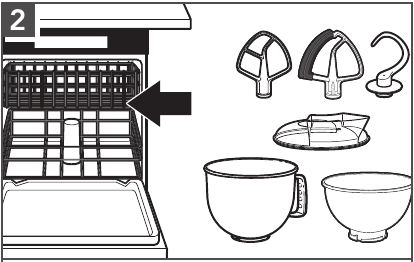

Do not immerse the Stand Mixer body in water or other liquids.
*Included with select models only. Also available as an optional accessory.
![]() | ||||

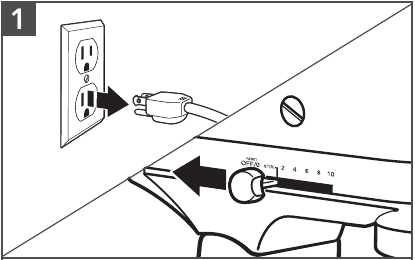

Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. | ||||
Problem | Solution | |||
If Stand Mixer warms up during use: | Under heavy loads with extended mixing time periods, you may not be able to comfortably touch the top of the unit. This is normal. | |||
If the Flat Beater hits the bowl: | Stop the Stand Mixer. See the "Product Assembly" section and adjust the Beater to Bowl Clearance. | |||
The Speed Control Lever does not move smoothly or easily: | To move the Speed Control Lever with ease, lift slightly up as you move it across the settings in either direction. | |||
If your Stand Mixer should fail to operate, please check the following: | Is the Stand Mixer plugged in? | |||
Is the fuse in the circuit to the Stand Mixer in working order? If you have a Circuit Breaker Box, be sure the circuit is closed. | ||||
Turn off the Stand Mixer for 10-15 seconds, then turn it back on. If the Stand Mixer still does not start, allow it to cool for 30 minutes before turning it back on. |
Note: If the problem cannot be corrected, See the "Warranty and Service" section. Do not return the Stand Mixer to the retailer; retailers do not provide service.
