KitchenAid KV25G0XAQ 5 Plus Series 5 Quart Bowl-Lift Stand Mixer Manual

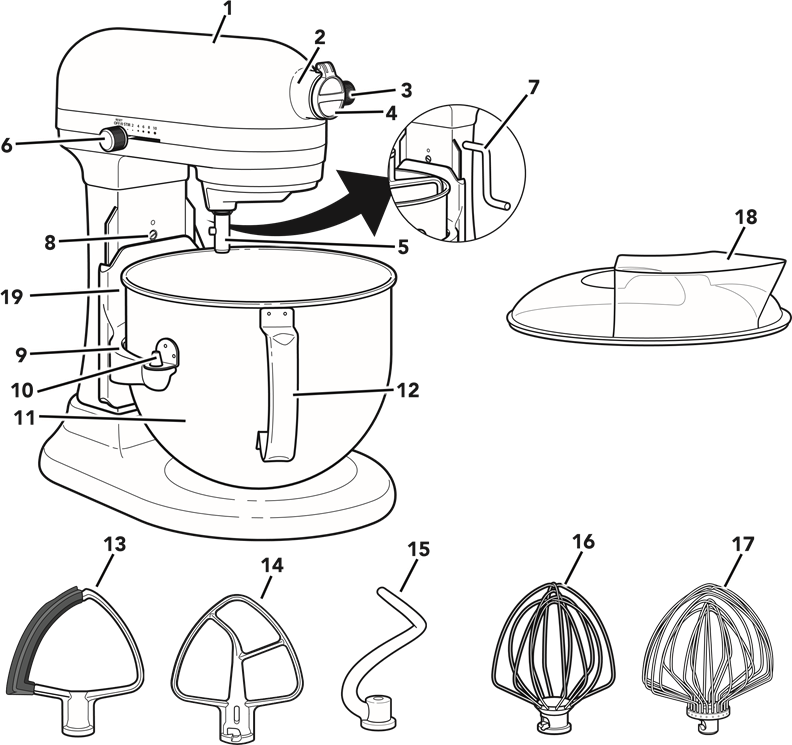

PARTS AND FEATURES

PARTS AND FEATURES

  1. Motor Head
  2. Attachment Hub
  3. Attachment Knob
  4. Hinged Hub Cover
  5. Beater Shaft
  6. Speed Control
  7. Bowl Lift Lever
  8. Beater Height Adjustment Screw
  9. Bowl Support
  10. Locating Pins
  11. Bowl*
  12. Bowl Handle*
  13. Flex Edge Beater**
  14. Flat Beater**
  15. Spiral Dough Hook**
  16. Wire Whip**
  17. 11-Wire Stainless Steel Elliptical Whip**
  18. Pouring Shield**
  19. Spring Latch and Bowl Pin (Not Shown)

*Bowl type may vary. Bowls are also available for purchase as separate accessories.
** Included with select models. Picture/Style may vary from product depending on model.

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance Always read and obey all safety messages.
warning This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:


You can be killed or seriously injured if you don't immediately follow instructions.


You can be killed or seriously injured if you don't follow instructions.

All safety messages will te you wnat the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

  1. Read all instructions.
  2. To protect against the risk of electrical shock do not put Stand Mixer in water or other liquid.
  3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they are closely supervised and instructed concerning the use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
  4. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
  5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beater during operation to reduce the risk of injury to persons and/or damage to the Stand Mixer.
  6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
  7. The use of accessories or attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
  8. Do not use the Stand Mixer outdoors.
  9. Do not let the cord hang over the edge of table or counter.
  10. Remove the flat beater, wire whip, or spiral dough hook from the Stand Mixer before washing.

SAVE THESE INSTRUCTIONS
This product is designed for household use only.

PRODUCT SAFETY

ELECTRICAL REQUIREMENTS


Voltage: 120 V
Frequency: 60 Hz

warning NOTE: The power rating for your Stand Mixer is printed on the serial plate.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or service person install an outlet near the appliance.
The maximum rating is based on the attachment that draws the greatest load (power). Other recommended attachments may draw significantly less power.

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

ACCESSORY GUIDE

Accessory Use to mix Description
Flat beater*
Flex Edge Beater*
Normal to heavy mixtures Cakes, creamed frostings, candies, cookies, biscuits, pie pastry, meat loaf, mashed potatoes
Spiral Dough Hook* Mixing and kneading yeast doughs Breads, rolls, pizza dough, coffee cakes buns
Wire Whip*
11-Wire Elliptical Whip*
Mixtures that need air incorporated Eggs, egg whites, heavy cream, boiled frostings, sponge cakes, mayonnaise, some candies

*Available as an accessory purchase with selected models only.

SPEED CONTROL GUIDE

All speeds features Soft Start® which allows the Stand Mixer to start at a lower speed to help avoid ingredient splash-out and "flour puff" at start-up, then increases to the selected speed.

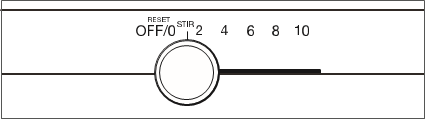

SPEED CONTROL
The speed control can be set between the speeds listed in the chart to obtain speeds 1, 3, 5, 7, and 9 if a finer adjustment is required.

Speed Accessory Action Description
Stir Flat Beater
Flex Edge Beater
Stirring For slow stirring, combining, mashing, and starting all mixing procedures. Use to add flour and dry ingredients to batter, and add liquids to dry ingredients. Do not use STIR speed to mix or knead yeast doughs.
2 Flat Beater
Flex Edge Beater
Spiral Dough Hook
Slow mixing, Kneading For slow mixing, mashing, and faster stirring. Use to mix and knead yeast doughs, heavy batters, and candies; start mashing potatoes or other vegetables; cut shortening into flour; mix thin or splashy batters.
4 Flat Beater
Flex Edge Beater
Wire Whip
11-Wire Elliptical Whip
Mixing, beating For mixing semi-heavy batters, such as cookies. Use to combine sugar and shortening and to add sugar to egg whites for meringues. Medium speed for cake mixes. Use with: food grinder, rotor slicer/ shredder, pasta roller, and fruit/vegetable strainer.
6 Flat Beater
Flex Edge Beater
Wire Whip
11-Wire Elliptical Whip
Beating, creaming For medium-fast beating (creaming) or whipping. Use to finish mixing cake, doughnut, and other batters. High speed for cake mixes.
8-10 Wire Whip
11-Wire Elliptical Whip
Fast beating, Whipping For whipping cream, egg whites, and boiled frostings. For whipping small amounts of cream, egg whites, or for final whipping of mashed potatoes.

warning NOTE: Use Speed 2 to mix or knead yeast doughs. Use of any other speed creates high potential for Stand Mixer failure. The PowerKnead™ spiral dough hook efficiently kneads most yeast dough within 4 minutes.

Capacity Chart
5-5.5 Quart 6-6.5 Quart 7-7.5 Quart
Cookies 9-10 dozen 13 dozen 14 dozen

PRODUCT ASSEMBLY

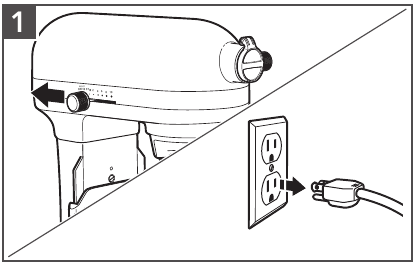

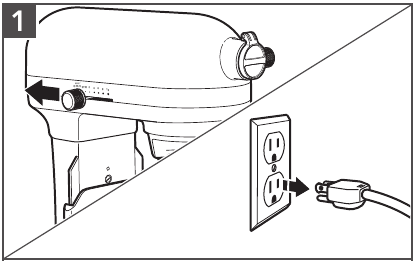

  1. Turn the Stand Mixer to "OFF/ 0" and then unplug.
    Turn the Stand Mixer to

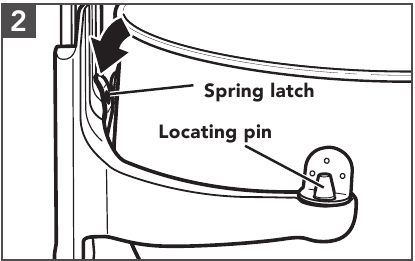

  2. To attach the bowl: Fit the bowl supports over locating pins and press down on back of the bowl until bowl pin snaps into spring latch.
    To attach the bowl

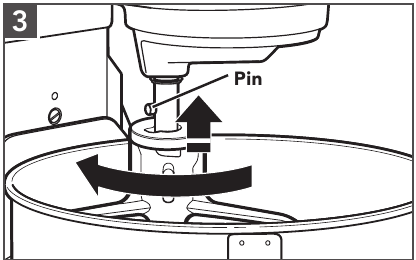

  3. To attach the accessory: Slip the accessory onto the shaft. Turn to hook it over the pin on the shaft.
    To attach the accessory
  4. To raise the bowl: Rotate the bowl lift lever to the straight up position. The bowl must always be in the raised position when mixing.
    To raise the bowl

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter. Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
  1. Test the beater to bowl clearance: Plug the Stand Mixer into a grounded 3 prong outlet. Turn Stand Mixer ON and test each speed, making sure the beater does not touch the bowl during operation. If the beater is too far away from the bottom or is hitting the bowl, proceed to next step to make adjustments.
    Test the beater to bowl clearance
  2. (OPTIONAL) To adjust beater to bowl clearance: Lower the bowl to the down position. Turn the screw slightly counterclockwise (left) to raise the beater, or clockwise (right) to lower it. Adjust the beater so that it just clears the surface of the bowl. Check again the clearance of the beater to the bowl.
    (OPTIONAL) To adjust beater to bowl clearance


When properly adjusted, the flat beater will not strike on the bottom or sides of the bowl. If the flat beater or the wire whip is so close that it strikes the bottom of the bowl, coating may wear off the beater or wires on the whip may wear.

USING THE POURING SHIELD*

Use the pouring shield to avoid having ingredients splashing out of the bowl when mixing, as well as to easily pour ingredients into the bowl while mixing.

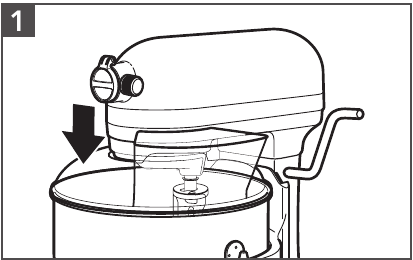

  1. To attach the pouring shield*: Slide the pouring shield from the front of the Stand Mixer over the bowl. The bottom rim of the pouring shield* fits inside of the bowl.
    To attach the pouring shield

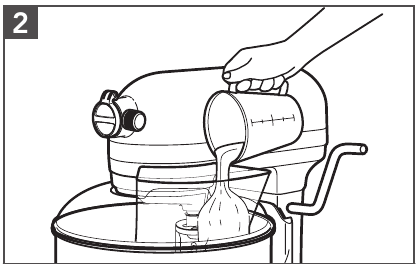

  2. Pour the ingredients into the bowl through the pouring chute.
    Pour the ingredients into the bowl.

*Available with select models only and available as an accessory purchase.

PRODUCT USAGE


Electrical Shock Hazard
Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.


Injury Hazard

Unplug mixer before touching beaters.
Failure to do so can result in broken bones, cuts, or bruises.

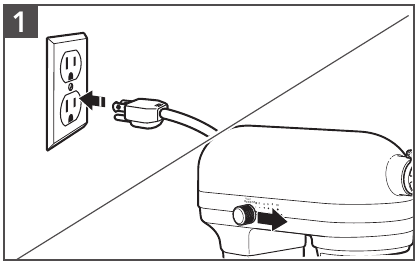

  1. Plug the Stand Mixer into a grounded 3 prong outlet. Start with lower speed to avoid splashing and increase it gradually. Refer to the "Speed Control Guide".
    Plug the Stand Mixer into a grounded 3 prong outlet.

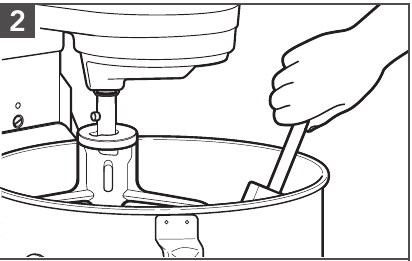

  2. Do not scrape the bowl while operating. Scraping the bowl once or twice during mixing is usually sufficient.
    Do not scrape the bowl while operating.

OPTIONAL ATTACHMENTS

KitchenAid® offers a wide range of optional attachments such as the Spiralizer, Pasta Cutters, or Food Grinder that may be attached to the Stand Mixer attachment power hub.

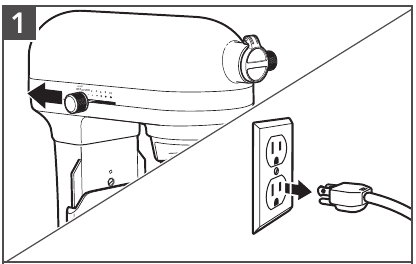

  1. Turn the Stand Mixer to "OFF/ 0" and then unplug.
    Turn the Stand Mixer to

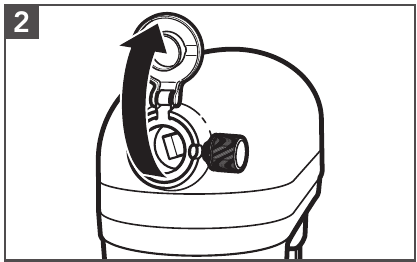

  2. Flip up hinge attachment hub cover to open.
    Flip up hinge attachment hub cover to open.

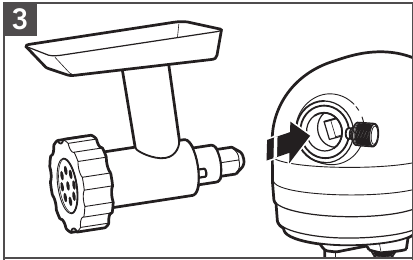

  3. Insert attachment into attachment hub, making certain that attachment power shaft fits into the square attachment hub socket.
    Insert attachment into attachment hub

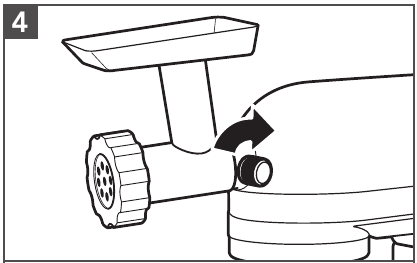

  4. Tighten the attachment knob by turning it clockwise until the attachment is secured to the Stand Mixer.
    Tighten the attachment knob

warning NOTE: See the Use and Care Guide of each specific attachment for more details.

PRODUCT DISASSEMBLY

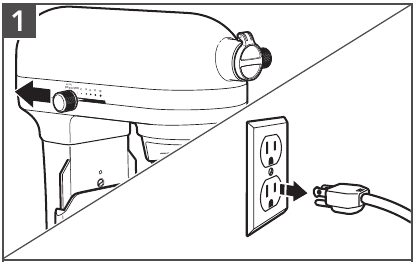

  1. Turn the Stand Mixer to "OFF/ 0" and then unplug.
    Turn the Stand Mixer to

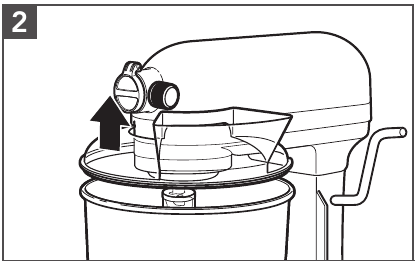

  2. Remove Pouring shield: Lift the front of the pouring shield* clear of the rim of the bowl. Pull away from the Stand Mixer.
    Remove Pouring shield

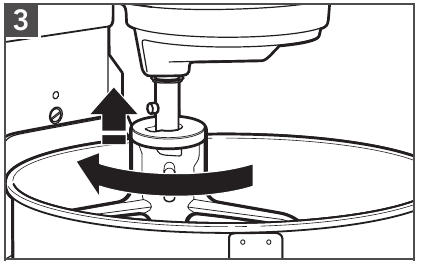

  3. Remove the accessory: Press accessory upward and turn to the left. Pull down the accessory from beater shaft.
    Remove the accessory

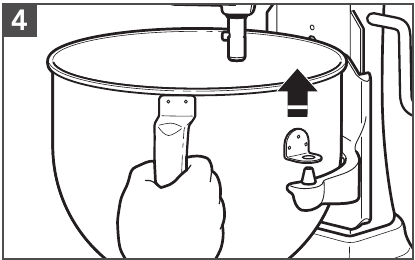

  4. To Remove Bowl: Place bowl-lift lever in the down position. Grasp bowl handle and lift straight up and off locating pins.
    To Remove Bowl

CARE AND CLEANING


Do not immerse the Stand Mixer body in water or other liquids.

  1. Turn the Stand Mixer to "OFF/ 0" and then unplug.
    Turn the Stand Mixer to

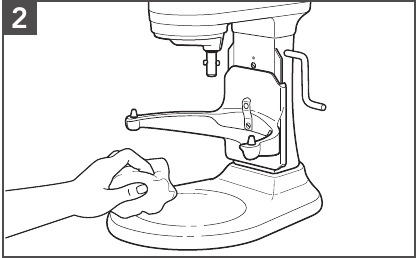

  2. Wipe the Stand Mixer body with a soft, damp cloth.
    Wipe the Stand Mixer body with a soft, damp cloth.

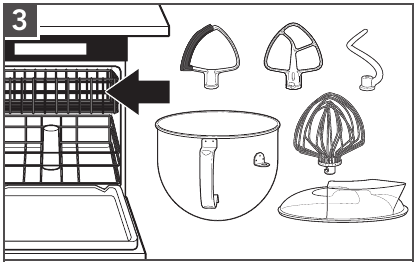

  3. The following parts are dishwasher-safe, top rack only: Bowl, Flat beater, Flex edge beater *, Spiral dough hook, 11 wire elliptical whip * and Pouring shield *.
    Dishwasher-safe, top rack only

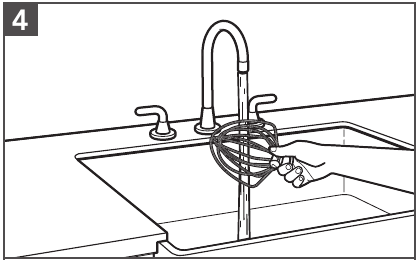

  4. The following part should be hand-washed only, using warm, soapy water and drying thoroughly: Wire whip only.
    The following part should be hand-washed only

*Available with select models only and available as an accessory purchase.

FOR DETAILED INFORMATION OF THE STAND MIXER

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use and clean your Stand Mixer and accessories.

TROUBLESHOOTING GUIDE


Electrical Shock Hazard
Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

TROUBLESHOOTING

Problem Solution
If Stand Mixer warms up during use: Under heavy loads with extended mixing time periods, you may not be able to comfortably touch the top of the Stand Mixer. This is normal.
If Stand Mixer emits a pungent odor during initial use: This is normal. This is common with electric motors.
If the flat beater hits the bowl: Stop the Stand Mixer. See the "Product Assembly" section and adjust the beater to bowl clearance.
The speed control lever does not move smoothly or easily: To move the speed control lever with ease, lift slightly up as you move it across the settings in either direction.
If your Stand Mixer should fail to operate, please check the
following:
Is the Stand Mixer plugged in?
Is the fuse in the circuit to the Stand Mixer in working order? If you have a circuit breaker box, be sure the circuit is closed.
Turn off the Stand Mixer for 10-15 seconds, then turn it back on. If the Stand Mixer still does not start, allow it to cool for 30 minutes before turning it back on.

warning Note: If the problem cannot be corrected, See the "Warranty and Service" section.
Do not return the Stand Mixer to the retailer; retailers do not provide service.
