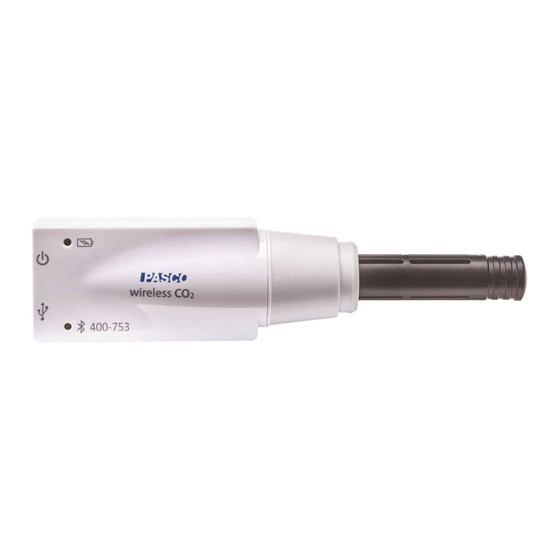

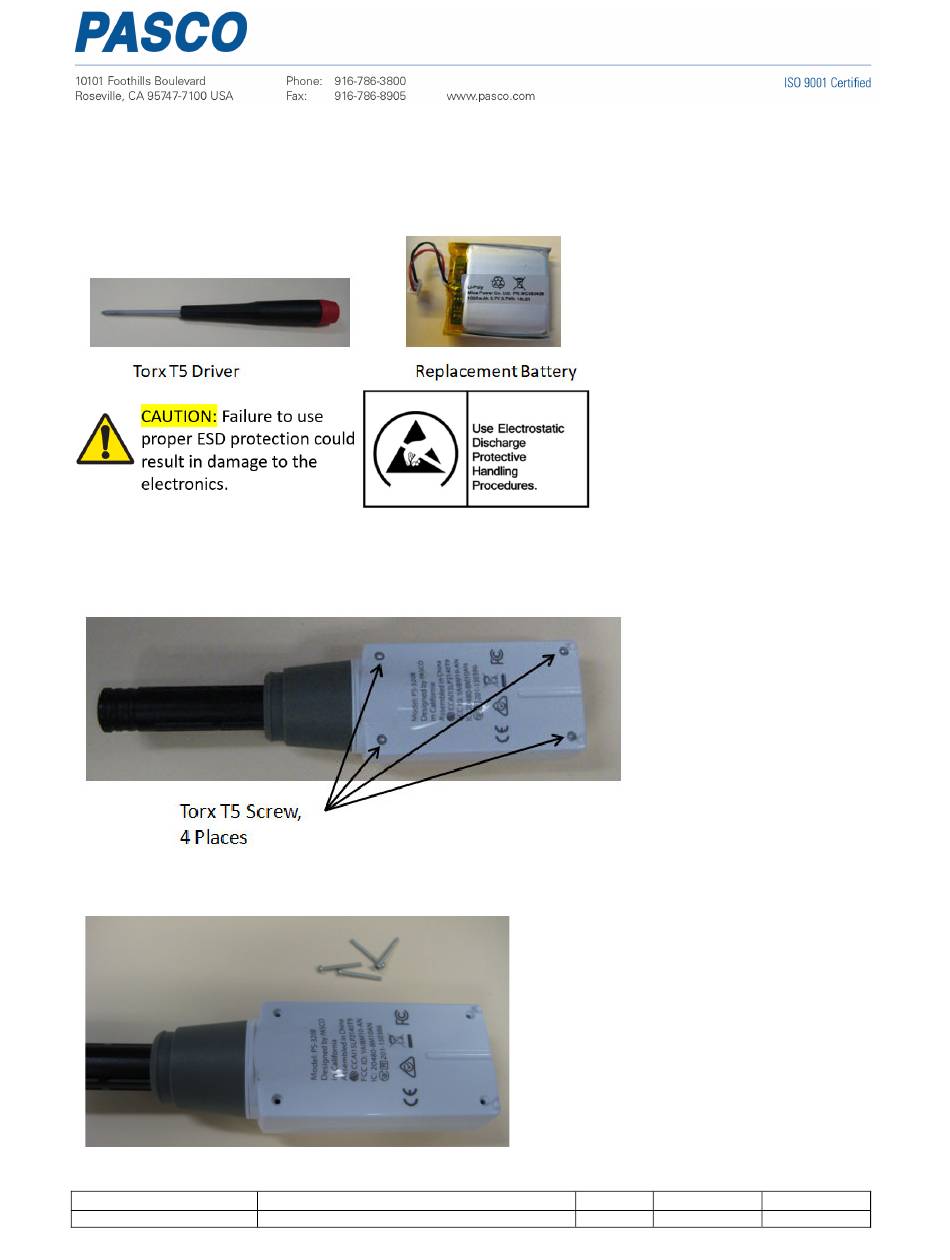

PS‐3208; Wireless CO2 Sensor Battery Replacement Instructions
Reference: Battery part number 540‐113; Li‐Poly 1000 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
Step 1:
Position the Sensor on a surface as shown. Note the location of the (4) Torx T5
Screws.
Step 2:
Unscrew and remove the 4 Torx Screws with the Torx T5 Screwdriver.
PASCO Form Number
013-16106
Description
PS-3208 Battery Replacement Instructions
Date
05-05-22
Page 1 of 3
Revision
B
