PASCO PS-3204 Product Manual

Wir Wireless pH Sensor eless pH Sensor
PS-3204
About the Product About the Pr oduct

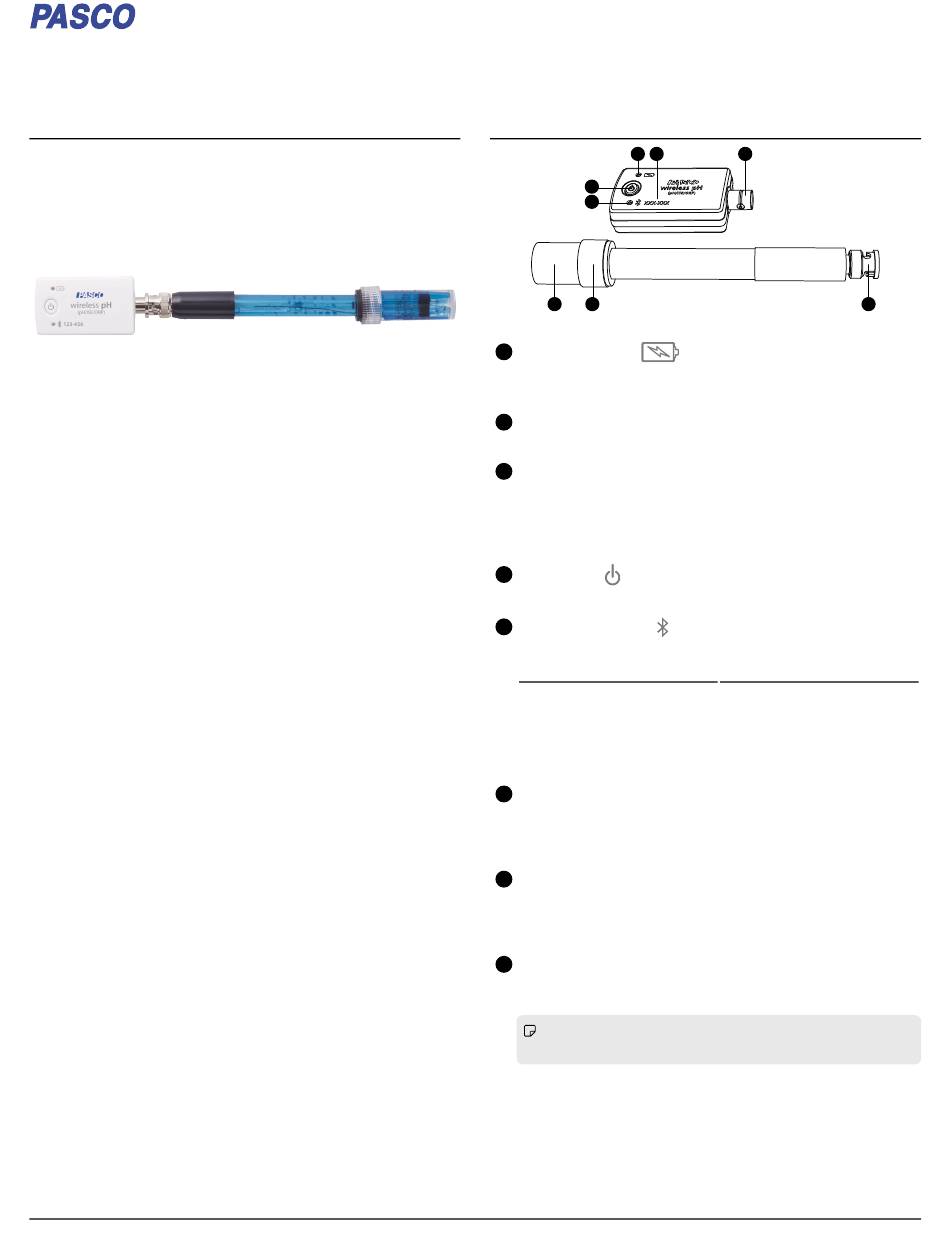

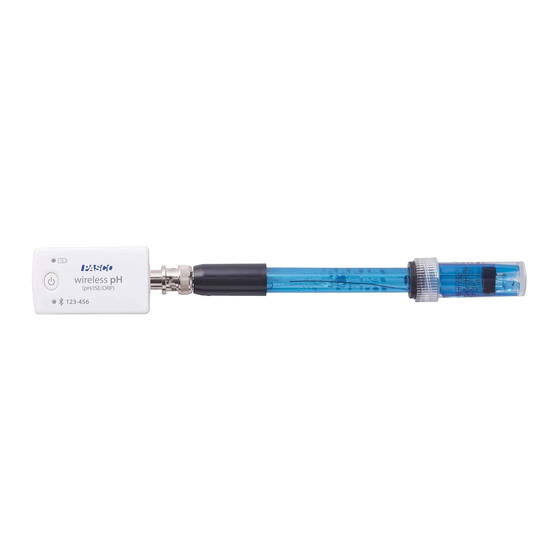

The Wireless pH Sensor measures the pH of a solution within a range
between 0 and 14 pH. The pH measurement is transmitted wirelessly
through Bluetooth and displayed in PASCO data collection software.
The pH Sensor can also be used with alternative probes, such as Ion
Selective Electrodes (ISE) and the Oxidation Reduction Potential
Probe.
What's Included What' s Included
• Wireless pH Sensor
• pH Probe
Requir Required Items ed Items
• Data Collection Software Data Collection Software
This product requires PASCO software for data collection and
analysis. Either SPARKvue or PASCO Capstone can be used.
P P ar art names and descriptions t names and descriptions
1 2
4
5
6 7
Battery Status Light Battery Status Light
1
When the light blinks red, the battery is near the end of its life
and will need to be replaced soon.
Device ID Device ID
2
Use to identify the sensor when connecting using Bluetooth.
BNC Connector (Sensor) BNC Connector (Sensor)
3
Use to connect the sensor to the pH probe. Can also be used for
connecting various ion selective electrodes, the Oxidation
Reduction Potential Probe (PS-3515), and the Flat pH Probe
(PS-3514).
Power Button Power Button
4
Press and hold for one second to turn the sensor on or off.
Bluetooth Status Light Bluetooth Status Light
5
Indicates the status of the Bluetooth connection.
L L
IGHT
Red (blink)
Green (blink)
Yellow (blink)
Storage Bottle Storage Bottle
6
Contains pH storage solution to keep the probe hydrated while
not in use. Remove the storage bottle from the probe before
taking measurements.
Storage Bottle Cap Storage Bottle Cap
7
The cap can remain on the pH probe when the storage bottle is
removed. Push the cap to the top of the pH probe when taking
measurements.
BNC Connector (pH Probe) BNC Connector (pH Probe)
8
Use to connect the probe to the pH sensor. Push and turn
clockwise until the connector locks in place.
Note: When connecting the probe, hold it by the connector
and not by the shaft. Twisting the shaft can damage the probe.
Product Guide
012-14662C
3
8
S S
TATUS
Ready to pair
Paired
Remotely logging data
Wireless pH Sensor | 1
