WARNING: DO NOT CONNECT THE WIRELESS CURRENT SENSOR DIRECTLY ACROSS A
BATTERY OR OTHER VOLTAGE SOURCE. MAKE SURE THAT THERE IS A RESISTOR OR SOME
KIND OF "LOAD" IN SERIES WITH THE SENSOR. SEE PAGE 3.
2
1
1
Device ID Number
2
Bluetooth Status LED
3
Battery Status LED
4
ON Button
Hardware
Included Equipment

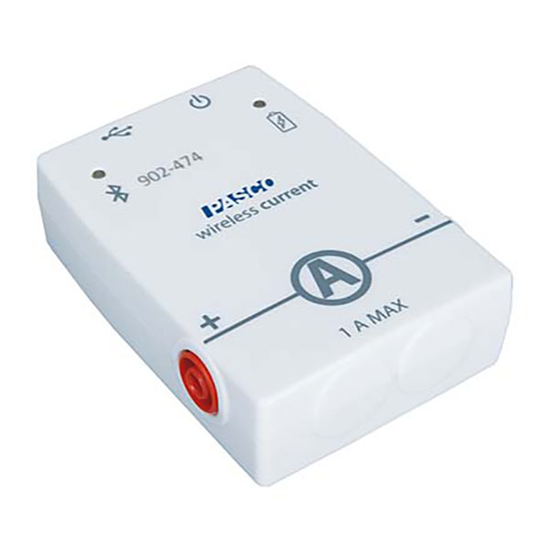

Wireless Current Sensor
Micro USB Cable (1 meter)
Introduction
The Wireless Current Sensor is a combination wireless
and USB sensor that connects to a computer or tablet
800-772-8700 (US)
www.pasco.com
®
Wireless Current Sensor
3
Part Number
PS-3212
PS-3212
4
5
5
Micro USB Port
6
Red Test Lead Jack
7
Micro USB Cable
device through
computer with a USB cable (included). The sensor
measures current in two ranges: between -1 ampere (A)
and +1 A, and between - 0.1 A and + 0.1 A. The PASCO
Data Collection Software will display and analyze the
measurements from the sensor. NOTE: The software
also supports "remote data logging" for long term experi-
ments.
The sensor is designed to optimize the battery usage
time. Since each sensor has a unique Device ID
number, more than one can be connected to a computer
or tablet at the same time.
Re fe rence G u id e
013-14986B
Power: Rechargeable Battery
Connection:
OR
USB Cable
6
7
, and can also connect to a
+1 916 462 8384
support@pasco.com
