PASCO PS-3204 Reference Manual

PASCO PS-3204 Reference Manual

Wireless ph sensor
Hide thumbs Also See for PS-3204:

Advertisement

Quick Links

Battery status LED
ON button
Bluetooth status LED
Gasket (water resistant)
Storage
Cap
bottle
Hardware
Included Equipment

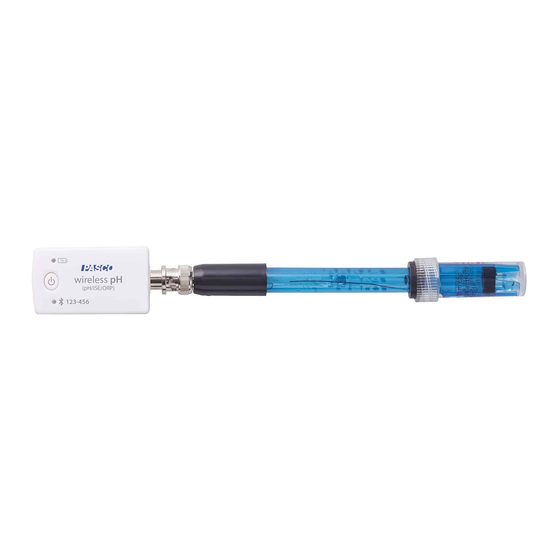

Wireless pH Sensor
pH Probe
Introduction
The Wireless pH Sensor measures the pH of a solution
within a range between 0 and 14 pH. The pH of a solution
is a numeric scale used to specify the acidity or alkalinity of
an aqueous solution. The pH of pure water is 7, the pH of
an acidic solution is generally between 7 and 0, and the pH
of a basic solution is generally between 7 and 14. The pH
measurement is transmitted wirelessly through
and recorded and displayed by the PASCO
software on a connected wireless device such as a tablet or
computer. The Wireless pH Sensor is powered by a
replaceable three volt coin cell battery (included) and is
well-suited for continuous recording and discrete
measurements. The sensor is designed to optimize the
battery usage time.
Since each sensor has a unique Device ID number, more
than one can be connected to a computer or tablet at the
same time.
The pH Sensor can also be used with alternative probes,
such as Ion Selective Electrodes (ISE) and the
800-772-8700 (US)
www.pasco.com
®
Wireless pH Sensor
Rubber washer
Part Number
PS-3204
PS-3204
Device ID
BNC connector
Sensor Housing
pH
pH Probe
Oxidation-Reduction Potent (ORP) Probe. (See Alternative
Probes, page 4.)
The pH sensor housing is water resistant (depth of 1 meter
in water for 30 minutes). However, immersing it in water or
other fluids may cause a loss of wireless connection. Put
only the end of the included pH Probe into the substance
being measured.
ON/OFF Information
To turn the sensor on, press and hold the ON button
temporarily until the status LEDs start blinking. To turn the
sensor off, press and hold the ON button for a moment until
the status LEDs stop blinking. The sensor puts itself to
sleep after a period of about one hour of inactivity if
connected, and several minutes of inactivity if not
connected.
Reference Guide
013-14662B
Power: Replaceable Battery
Connection:
+1 916 462 8384
support@pasco.com
BNC
connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-3204 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PASCO PS-3204

  • Page 1 PASCO connected. software on a connected wireless device such as a tablet or computer.
  • Page 2: Removing The Storage Bottle

    • Android • Chromebook See the PASCO web site at www.pasco.com/software for help in selecting the right PASCO software and to check the latest versions. 1. Align tab and slot 2. Push probe onto BNC Compatibility connector 3. Twist probe BNC...
  • Page 3 Home Screen. A graph of the sensor simple and always ready to use, so all of the measurement versus time opens. PASCO wireless products are designed for long battery life. For example, the sensor turns itself off after a short time of •...
  • Page 4: Ph Probe Maintenance

    Wireless pH Sensor PS-3204 Remove the Battery Compartment Door and briefly hold the button until the status LEDs blink, and then release the button Hold the sensor bottom-side up. Use a coin in the slot to turn the • If the sensor stops communicating with the computer...
  • Page 5: Suggested Experiments

    Note: The Oxidation Reduction Potential Probe is used to Limited Warranty monitor solutions during oxidation-reduction titrations, For a description of the product warranty, see the PASCO catalog. For perform water quality studies, and measure the effects of more information visit www.pasco.com/legal.
  • Page 6 Trademarks PASCO, PASCO scientific, PASCO Capstone, PASPORT, and SPARKvue are trademarks or registered trademarks of PASCO scientific, in the United States and/or in other countries. All other brands, products, or service names are or may be trademarks or service marks of, and are used to identify, products or services of their respective owners.
  • Page 7 Exception: Before you upgrade to El Capitan (Mac OS X www.pasco.com/compatibility 10.11.x), if you have a Macintosh with LMP version “0x4” that requires the PS-3500 USB Bluetooth 4.0 Adapter, for the latest information on Bluetooth SMART please contact PASCO Technical Support for further compatibility. instructions. ® Platform...
  • Page 8: Appendix B: Calibration

    Containers such as 100 ml and 1000 ml beakers are Using PASCO Capstone for Calibration available from PASCO. NOTE: Check the on line Help System in PASCO Capstone • Make two buffer solutions with pH values that “bracket” for the most up-to-date information.
  • Page 9: Theory Of Calibration

    Theory of Calibration One of the functions of the PASCO Data Collection Software is to take the stream of raw data from a sensor and transform it into the calibrated data that you see in the Graph, Table, and other displays.
