PASCO PS-3201 Reference Manual

Wireless Temperature Sensor
Battery status LED
ON
button
Bluetooth status LED
Hardware
Included Equipment
Wireless Temperature Sensor
Introduction

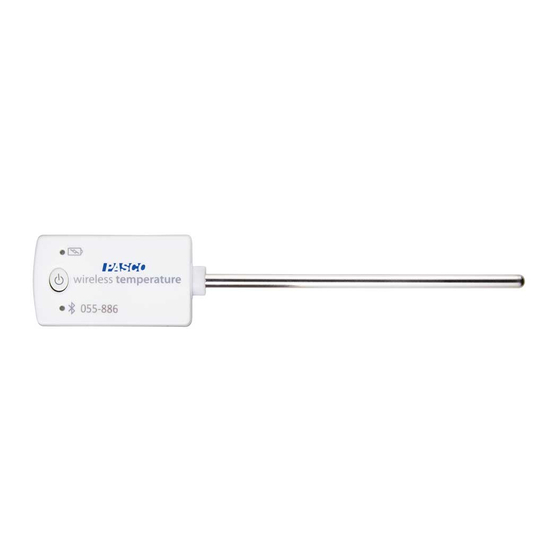

The Wireless Temperature Sensor measures
temperature over a range from -40° C to +125°C. The
stainless steel temperature probe is more durable than a
glass thermometer and is able to work in a variety of
situations. The temperature measurement is transmitted
wirelessly through
displayed by the PASCO software on a connected
wireless device such as a tablet or computer. The
Wireless Temperature Sensor is powered by a
replaceable three volt coin cell battery (included) and is
well-suited for continuous recording and discrete
measurements. The sensor is designed to optimize the
battery usage time.
Since each sensor has a unique Device ID number,
more than one can be connected to a computer or tablet
at the same time.
The sensor housing is water resistant, but immersing it
in water may cause a loss of wireless connection. Do not
immerse the sensor housing in boiling hot water. Put
only the Temperature Probe into the substance being
measured.
800-772-8700 (US)
www.pasco.com
®
Gasket (water resistant)
Device ID Sensor Housing (-15°C to +50°C)
Part Number
PS-3201
and recorded and
PS-3201
Temperature Probe (-40°C to +125°C)
ON/OFF Information
To turn the sensor on, press and hold the ON button
until the status LEDs start blinking. To turn the sensor
off, press and momentarily hold the ON button until the
status LEDs stop blinking. (See the LED information.)
The sensor puts itself to sleep after several minutes of
inactivity if not connected, and after about one hour of
inactivity if connected.
Data Collection Software
PASCO Capstone
• Mac OS X
• Windows
See the PASCO web site at www.pasco.com/software for help in
selecting the right PASCO software and to check the latest versions.
Software Help
See the SPARKvue Help or PASCO Capstone Help for
information about collecting, displaying, and analyzing
data.
Re fe rence G u id e
Power: Replaceable Battery
Connection:
SPARKvue
• Mac OS X
• Windows
• iOS
• Android
• Chromebook
+1 916 462 8384
support@pasco.com
013-14647C
