Getting Started
When contacting technical support: please
provide the information
listed on the following label,
which is located on the top
right front side of the
chassis.
1

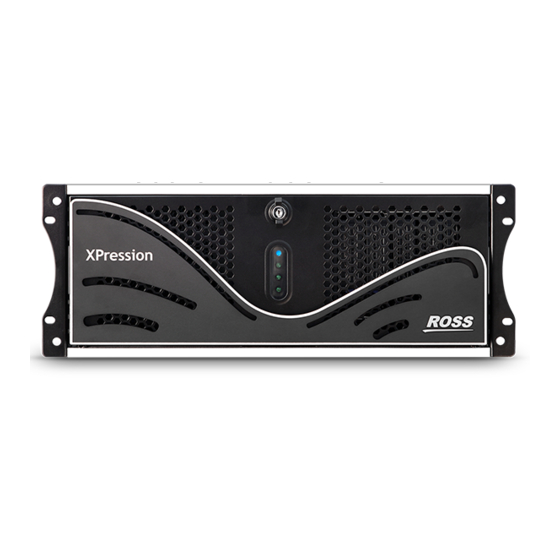

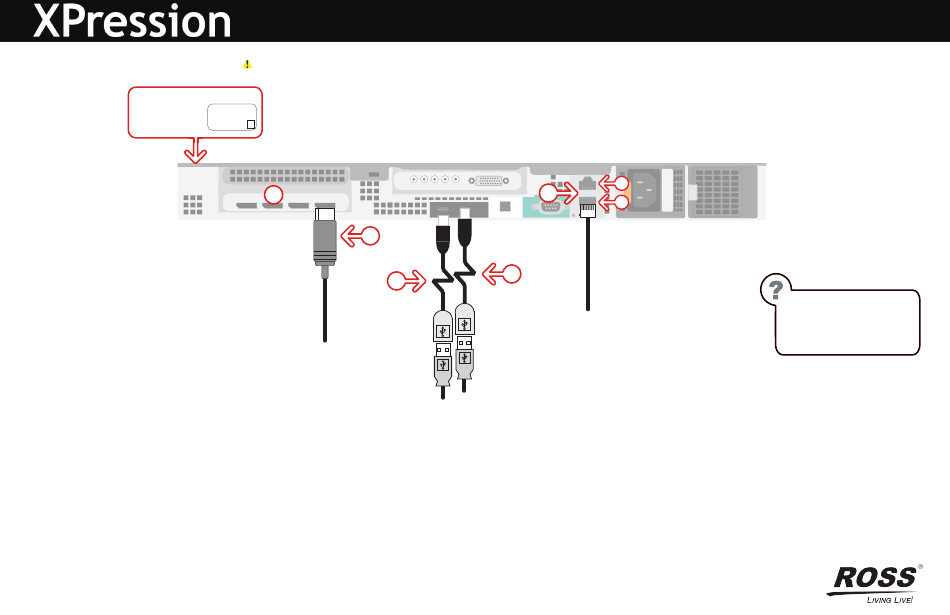

Use the supplied Rack Mount Kit to mount the XPression system in a 19'' EIA equipment rack.
For information on installing the XPression chassis in a rack, see the provided document "Installing the
Chassis in a Rack".
2
Plug the supplied Keyboard into one of the USB-C ports using the supplied USB-C to USB-A adapter.
3
Plug the supplied Mouse into one of the USB ports using the supplied USB-C to USB-A adapter.
4
Connect a Monitor (customer supplied) to a Display Port.
KVM extenders (customer supplied) are required when the XPression system monitor, keyboard, and
mouse are located remotely from the rack room.
5
(Optional) Connect a second monitor to any of the remaining display ports to use a second display.
If using analog output, connect a second monitor to a display port connector using display port to VGA
converter.
3508DR-008-02 ©2019 Ross Video Limited, Ross®, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other trademarks are the property of their respective companies.
PATENTS ISSUED and PENDING. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,mechanical, photocopying, recording or
otherwise, without the prior written permission of Ross Video. While every precaution has been taken in the preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the information contained herein.
CAUTION: Before you set up and operate this product, see the "Important Safety Instructions" in your Manual.
Ross Video Ltd.
Part #: ###-###-##
Issue: #
Serial #: ########
#/#
5
4
6
3
2
6
Plug an Ethernet cable from your Local Area Network into either the 1G (a) or 10G (b) Ethernet port.
XPression systems can run standalone or accept a connection to a production network. The
network connection is also used for the RossTalk / Smart GPI Feature.
If you are configuring an XPression Workstation or Designer system, skip ahead
to step 11.
Continued on other side...
