Summary of Contents for Ross MUX-8552A

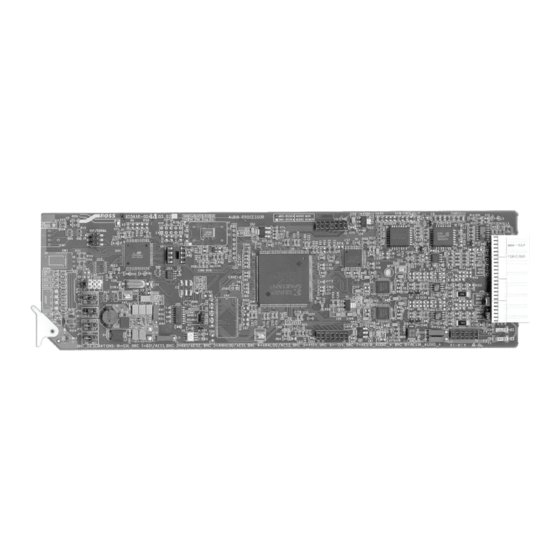

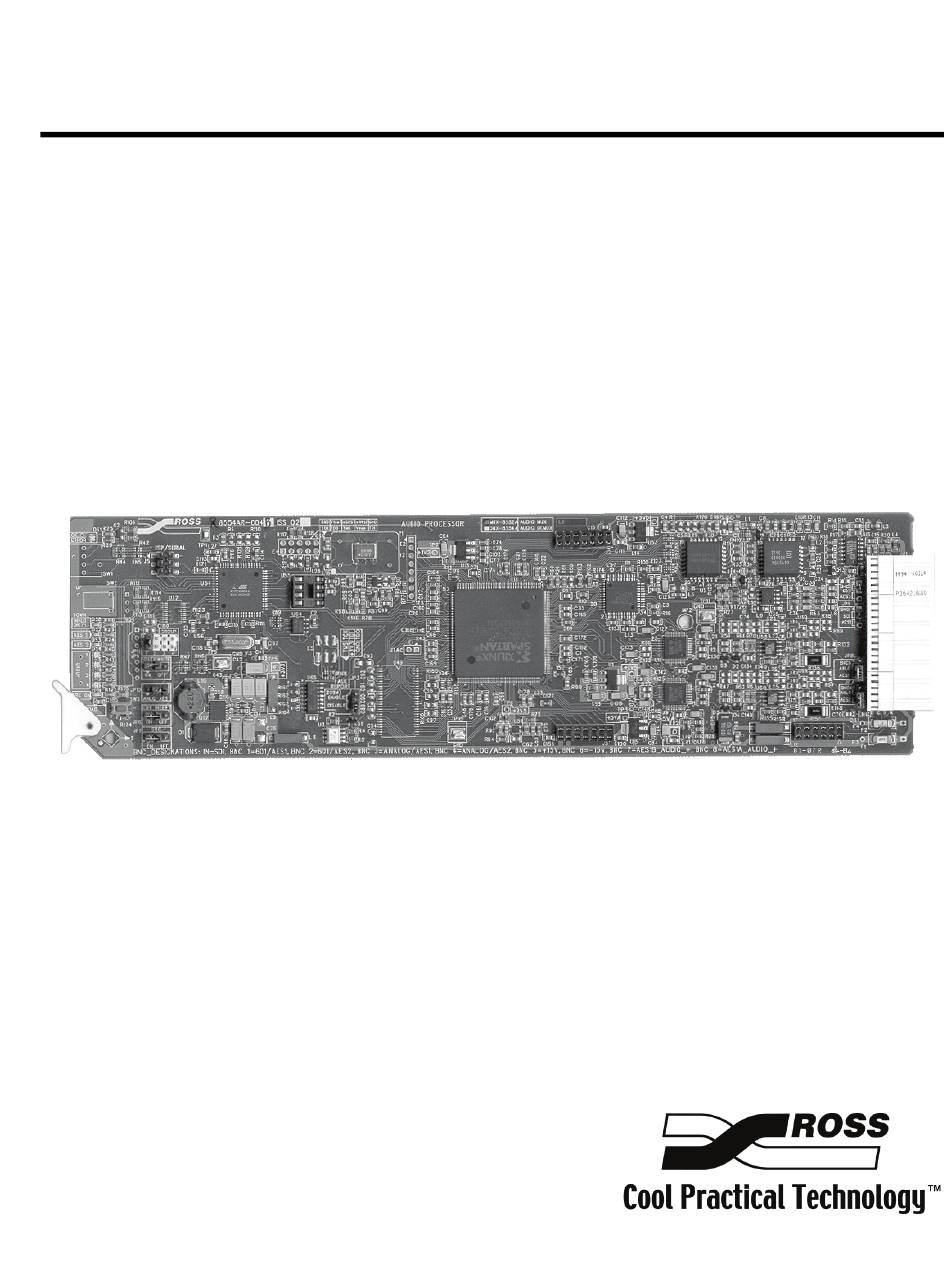

- Page 1 Ross Video Limited MUX-8552A(-C) AES/EBU Embedder/Multiplexer User Manual Ross Part Number: 8552ADR-004 Issue: 01...
- Page 2 The information contained in this User Manual is subject to change without notice or obligation. Copyright © 2007 Ross Video Limited. All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Ross Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited. Notice The material in this manual is furnished for informational use only.
- Page 3 Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below so as to avoid personnel injury and to prevent product damage. Products may require specific equipment, and /or installation procedures be carried out to satisfy certain regulatory compliance requirements.
- Page 4 Operation of this equipment in a residential area is likely to cause harmful interference in which case users will be required to correct the interference at their own expense. Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the user’s authority to operate this equipment.
- Page 5 The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
-
Page 7: Table Of Contents
Jumper Setup ......................4-2 Frame Connections....................4-2 Details........................4-2 Specifications In This Chapter ........................5-1 MUX-8552A Technical Specifications ..............5-2 AAM-8552A Technical Specifications ..............5-3 Channel Status Data Table for Analog Mode............5-4 Channel Status Data for AES Mode.................5-4 Contents • i MUX-8552A User Manual (Iss. 01) - Page 8 Service Information In This Chapter ........................6-1 Troubleshooting Checklist..................6-1 Warranty and Repair Policy ..................6-2 Ordering Information In This Chapter ........................7-1 MUX-8552A and Related Products................. 7-1 ii • Contents MUX-8552A User Manual (Iss. 01)
-
Page 9: Introduction
A Word of Thanks Congratulations on purchasing the Ross Video MUX-8552A, AES/EBU Embedder/Multiplexer. The MUX-8552A family is part of a full line of RossGear Digital products, backed by Ross Video’s experience in engineering and design expertise since 1974. You will be pleased at how easily your new MUX-8552A fits into your overall working environment. -
Page 10: Mux-8552A Overview
8552A provides automatic equalization for 300m of Belden 8281 cable. Two SDI outputs are provided. The MUX-8552A can embed one AES group into any one of the four AES groups available. The group to be embedded is selected via a card edge jumper. Front panel LED’s provide information on which groups are already present in the incoming SDI stream. -
Page 11: Features
Features The MUX-8552A AES/EBU Embedder/Multiplexer is part of a full line of RossGear digital and analog distribution products engineered to satisfy the highest quality broadcast standards and the most demanding requirements of your facility. The following features make the MUX-8552A the most... -
Page 12: Functional Block Diagram
DFR-8104A-C and DFR-8110A-C versions with the cooling fan option. See the respective User Manuals for details. • “Operator” and “User” both refer to the person who uses the MUX-8552A. • “Board”, “Card”, and “Module” all refer to the MUX-8552A board itself, including all components and switches. -
Page 13: Installation And Setup
Unpacking Unpack each MUX-8552A from the shipping container and check the contents to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. -
Page 14: Board Installation
Board Installation Note the following points when installing the configured MUX-8552A card in a RossGear 8000 or 8000A series digital distribution frame: The MUX-8552A-C card configuration must be installed in a Ross Video 8000A series digital distribution frame with a cooling module option installed. -
Page 15: Mux-8552A-C Cable Connections
AES Input The MUX-8552A can accommodate two synchronous AES-3id input streams at 48 kHz or any asynchronous AES stream from 20kHz to 103kHz with sample rate conversion (SRC) enabled. SRC should only be used with PCM (Pulse Code mOdulate) digiatal audio and not any form of conpression ie. - Page 16 Once the cables have been wired to the connectors, install the connectors to the sockets on the CON- 8552 adapter so that the slotted tongue fits in the grooves on the adapter socket. 2-4 • Installation and Setup MUX-8552A User Manual (Iss. 01)
-
Page 17: User Controls
User Controls In This Chapter This chapter contains the following sections: • MUX-8552A Jumper Locations • MUX-8554A-C Jumper Locations • MUX-8552A-C Gain Adjustment • LEDs User Controls • 3-1 MUX-8552A User Manual (Iss. 01) -
Page 18: Mux-8552A Jumper Locations
SRC Select – JP1 Select SRC ON or OFF, via JP1, to enable the Sample Rate conversion. Select ON to enable the MUX-8552A to automatically synchronize and convert to 48kHz any AES input from 20kHz to 103kHz. The default is ON. -
Page 19: Mux-8552A-C Jumper Locations
Analog/AES Audio – JP7, JP8, JP10 On the MUX-8552A card, select ANALOG on JP7, JP8, and JP10 if the input is to be analog audio. Note that you must have the AAM-8552A and CON-8552 installed to input four analog audio channels instead of two AES digital audio channels into the MUX. -
Page 20: Mux-8552A-C Gain Adjustment
LEDs will indicate which groups have embedded audio. Figure 7. Card-edge LEDs The front card edge has LEDs that display the status of input signals. The LED displays are described in the preceding figure and the following table: 3-4 • User Controls MUX-8552A User Manual (Iss. 01) - Page 21 Indicates no valid SDI input, or card not locked to SDI input. When flashing red, this LED indicates that group select jumper JP11 is set to overwrite pre-existing audio on the selected AES group without jumper JP7 being set to overwrite. User Controls • 3-5 MUX-8552A User Manual (Iss. 01)
- Page 22 When flashing yellow and green, this LED indicates that the pre-existing audio Yellow/Green group is being overwritten. When lit, this LED indicates that jumper JP1-SRC Select is set to ON and the SRC ON Yellow audio input is AES. 3-6 • User Controls MUX-8552A User Manual (Iss. 01)
-
Page 23: Smpte 269M Fault Reporting
The SMPTE 269M Fault Reporting system, also known as an SMPTE “alarm”, provides indication if one or more frame modules encounter a fault or an abnormal condition. The MUX-8552A module provides a jumper to enable SMPTE 269M fault reporting. The card connects by means of an internal interface circuit to an auxiliary telco connector on RossGear 8000 and 8000A series frames. -
Page 24: Jumper Setup
Jumper Setup If fault reporting for the MUX-8552A is desired, use main card jumper JP3 - 269M FAULT REPORT to set up the card. 1. To access the jumper, remove the card from the frame by pressing down the white card ejector tab and pulling the card from the frame slot. -
Page 25: Specifications
In This Chapter This chapter contains the following sections: • MUX-8552A Technical Specifications • AAM-8552A Technical Specifications • Channel Status Data Table for Analog Mode • Channel Status Data for AES Mode Specifications • 5-1 MUX-8552A User Manual (Iss. 01) -
Page 26: Mux-8552A Technical Specifications
MUX-8552A Technical Specifications Table 2. MUX-8552A Technical Specifications Category Parameter Specification Number of Inputs 1 SMPTE 259M-C 270Mb/s Input Impedance 75Ω SDI Input Connector Equalization Automatic, up to 300m (1000') Belden 8281 cable Input Return Loss >18dB to 270MHz Number of Outputs... -
Page 27: Aam-8552A Technical Specifications
Reference Levels Headroom -27dBFS to -15dBFS 24dB or 18dB Headroom Select User-set Parameters ±3dB Gain Adjustment Environmental 5 °C – 40 °C ambient Operating Range Specifications are subject to change without notice. Specifications • 5-3 MUX-8552A User Manual (Iss. 01) -
Page 28: Channel Status Data Table For Analog Mode
Channel Status Data for AES Mode In AES Mode with SRC set to OFF, channel status and user bits come from the AES input stream and are embedded as they are received. 5-4 • Specifications MUX-8552A User Manual (Iss. 01) -
Page 29: Service Information
Routine maintenance of this RossGear product is not required. In the event of problems with your MUX-8552A, the following basic troubleshooting checklist may help identify the source of the problem. If the module still does not appear to be working properly after checking all possible causes, please contact your Ross Video products distributor, or Ross Video Technical Support department at the numbers listed under the “Contact Us”... -
Page 30: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your RossGear MUX-8552A proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. -
Page 31: Ordering Information
EXT-8100 Extender Board (module servicing extension) Your MUX-8552A, AES/EBU Embedder/Multiplexer is a part of the RossGear family of products. Ross Video offers a full line of RossGear terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, AES, keyers, switches, as well as analog audio and video products. - Page 32 613 • 349 • 0006 613 • 652 • 4425 General Information solutions@rossvideo.com E-MAIL Technical Support techsupport@rossvideo.com 8 John Street, Ross Video Limited Iroquois, Ontario, Canada POSTAL K0E 1K0 SERVICE P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669-...
