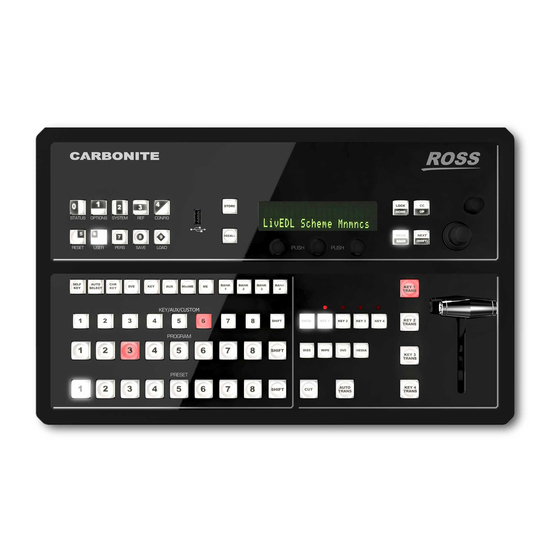

Carbonite Black Solo
Operation Manual
v2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carbonite Black Solo and is the answer not in the manual?

Questions and answers

Related Manuals for Ross Carbonite Black Solo

Summary of Contents for Ross Carbonite Black Solo

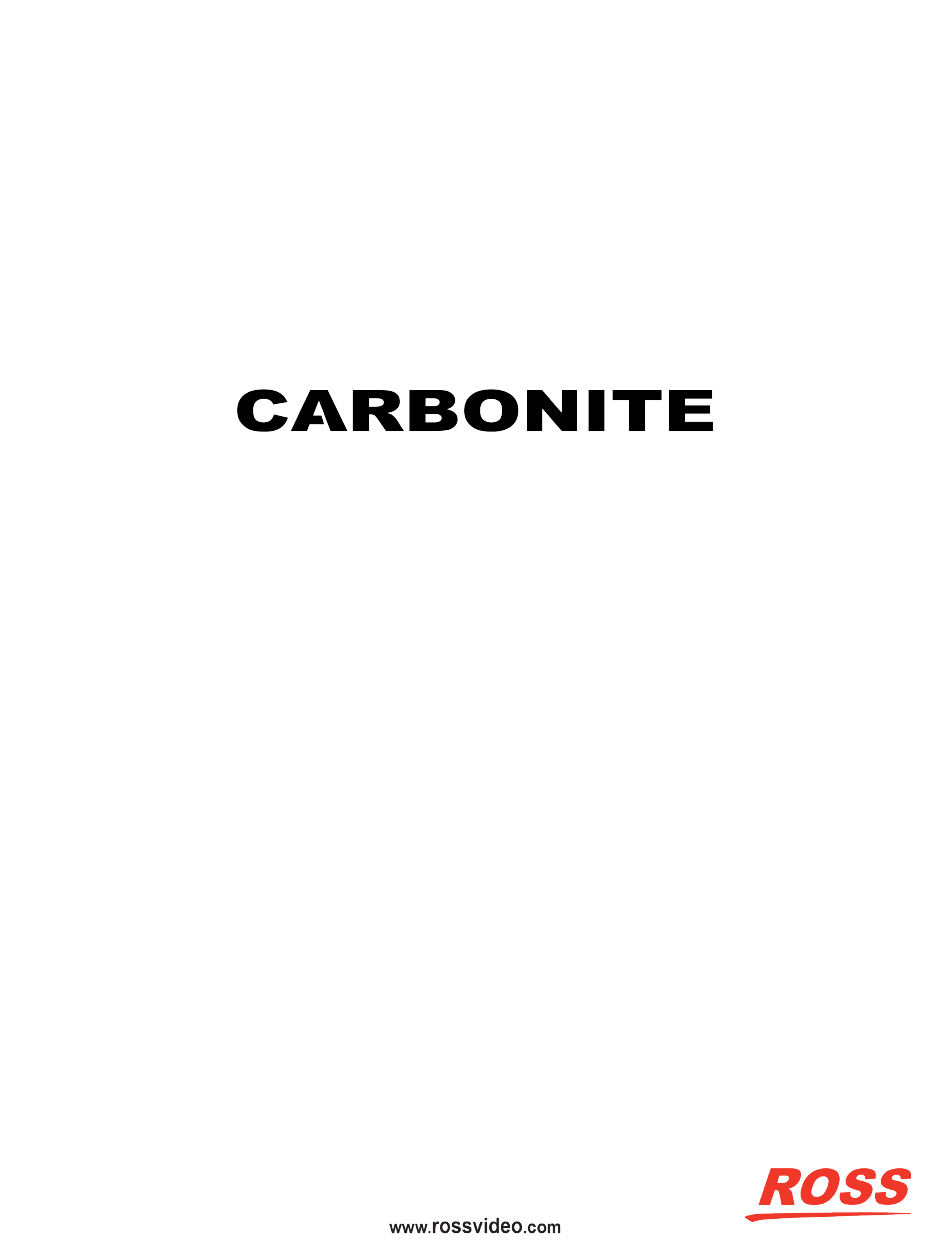

  • Page 1 Carbonite Black Solo Operation Manual v2.0...
  • Page 2 6. We will keep our promises. 7. We will treat the competition with respect. ii • Thank You For Choosing Ross — Carbonite Black Solo Operation Manual (v2.0)
  • Page 3 “ Important Safety User/Installation Manual installation Instructions ” listed in the front of your Setup instructions. Manual to avoid personnel injury and to prevent product damage. Carbonite Black Solo Operation Manual (v2.0) — Document Information • iii...
  • Page 4 Radiocommunications Labelling This product has been determined to be (Electromagnetic Compatibility) Notice 2008. compliant with the applicable standards, regulations, and directives for the countries where the product is marketed. iv • Document Information — Carbonite Black Solo Operation Manual (v2.0)
  • Page 5 If you need more information on the collection, basis, plug in circuit boards or other reuse, and recycling systems, please contact replacement parts may be supplied free of your local or regional waste administration. Carbonite Black Solo Operation Manual (v2.0) — Document Information • v...
  • Page 6 Carbonite Black Solo Toll Free Technical +800 1005 0100 • Upgrade Notes (4840DR-500) — upgrade Support instructions, new features, and known issues (International): for a given software version Technical Support: (+1)613-652-4886 vi • Document Information — Carbonite Black Solo Operation Manual (v2.0)
  • Page 7 • Configuration Guide (4840DR-100) — product description and marketing codes for switchers and options • CarboNET Installation (4805DR-100) — installation instructions for the Carbonite PMC translator. Carbonite Black Solo Operation Manual (v2.0) — Document Information • vii...

  • Page 8: Table Of Contents

    Live Assist................19 DVE Keys..................38 PaneLINK..............19 To Set Up a DVE Key..........38 Custom Controls..............19 To Apply a DVE to a Key (Fly Key)......39 MediaManager...............19 To Apply a Border to a DVE Key......39 viii • Contents — Carbonite Black Solo Operation Manual (v2.0)
  • Page 9 To Capture a Still............50 Media-Store Attributes............50 Understanding the Attributes Menu....50 To Set Media-Store File Attributes.......50 To Lock a Media Number Place and Bank..............51 MediaManager...............51 Using MediaManager ...........51 The MediaManager Window........52 Carbonite Black Solo Operation Manual (v2.0) — Contents • ix...

  • Page 10: Features

    A matte generator and complex wash generator create the look you want, or you can use one of per ME, capable of multi-color washes comes 10 • Features — Carbonite Black Solo Operation Manual (v2.0)

  • Page 11: Me Effect System

    Transition area and Preview bus for the MiniME 1 MiniME 2 background and keyers so that the next Note: No edge blending is available. transition takes the same sources on-air that were on-air in the memory. Carbonite Black Solo Operation Manual (v2.0) — Features • 11...

  • Page 12: Multiviewer

    Most wipes can be rotated, bordered, multiplied, aspectized, and repositioned. Tally Outputs The switcher has 16 assignable tally relays. Each tally can be assigned to any number of combinations of input and output or bus. 12 • Features — Carbonite Black Solo Operation Manual (v2.0)

  • Page 13: Control Panel Overview

    6. Positioner — The positioner is used to number of ports and connectors that are used control some wipe, border, and wash for power, signal input/output, and external parameters, as well as some external communications. Carbonite Black Solo Operation Manual (v2.0) — Control Panel Overview • 13...
  • Page 14 12. Output BNCs — provide 5 configurable SDI outputs. 13. Input BNCs — provide 6 configurable SDI inputs. 14. Reference In — supports house sync using selectable tri-level sync or analog black burst. 14 • Control Panel Overview — Carbonite Black Solo Operation Manual (v2.0)

  • Page 15: Menu System

    If you select a source button that an external device is assigned to, the peripheral control menu for that specific device is shown. Carbonite Black Solo Operation Manual (v2.0) — Menu System • 15...

  • Page 16: Switcher Basics

    • Internal — Internal video sources come from internally generated video, such as Media-Store channels, matte color, and black. 16 • Switcher Basics — Carbonite Black Solo Operation Manual (v2.0)

  • Page 17: To Select A Source On A Bus

    FlexiClean provides a second program output will not be able to select the bus on the ME, MiniME ™ , Aux, that is derived from a different location than chroma key, or keyer. Carbonite Black Solo Operation Manual (v2.0) — Switcher Basics • 17...

  • Page 18: Video Preview

    Copy. 2. Click a Source button to select the source you want to copy. 3. Click a Destination button to select the destination that you want to copy to. 18 • Switcher Basics — Carbonite Black Solo Operation Manual (v2.0)

  • Page 19: Dashboard

    DashBoard, you must have Microsoft ® Internet Explorer ® 10, or • RossTalk Server Port — the network port higher, installed. that the switcher is listening on for RossTalk commands. Carbonite Black Solo Operation Manual (v2.0) — DashBoard • 19...
  • Page 20 20 • DashBoard — Carbonite Black Solo Operation Manual (v2.0)

  • Page 21: Viewcontrol

    The bus selection buttons allow you to select the different buses on different ME outputs of the switcher. To select a source on a bus, press the bus selection button, and press the MultiViewer box Carbonite Black Solo Operation Manual (v2.0) — ViewControl • 21...

  • Page 22: Custom Control Button Setup

    3. Enter a name for the button in the Button Name field. Tip: You can change the name of a tab by selecting a button on the tab and then entering a new name in the Group Name field. 22 • ViewControl — Carbonite Black Solo Operation Manual (v2.0)

  • Page 23: Transitions

    • On a MiniME , Background and key 2 only Effect selects the pattern for the DVE transition support Dissolve and Cut transitions. ™ • There is no preview output for a MiniME Carbonite Black Solo Operation Manual (v2.0) — Transitions • 23...

  • Page 24: To Perform A Transition

    Figure 16: Example Cut Transition A cut is performed either by selecting different sources on a background or key bus, or by pressing a CUT button. 24 • Transitions — Carbonite Black Solo Operation Manual (v2.0)

  • Page 25: Dissolve Transitions

    A wipe transition requires that you select a wipe 1. Press DISS. pattern, set the direction and number/size of wipe pattern, as well as set a background and Carbonite Black Solo Operation Manual (v2.0) — Transitions • 25...

  • Page 26: To Apply A Border To A Pattern

    4. Press NEXT. • PushL — Push Left (0) 5. Select a default or custom color for the • PushR — Push Right (double-press 0) border. • PushU — Push Up (1) 26 • Transitions — Carbonite Black Solo Operation Manual (v2.0)

  • Page 27: Mediawipe Transitions

    Wipe border is not supported. the transition manually could result in jumps • DVE (3) — Use the Start knob to select in the animation. the point where the dissolve starts and Carbonite Black Solo Operation Manual (v2.0) — Transitions • 27...

  • Page 28: Transition Limits

    GPI output triggering. transition limit point. 1. Prepare the transition as required, but do 4. Toggle the Limit knob (On) to set the not perform the transition. transition limit point. 28 • Transitions — Carbonite Black Solo Operation Manual (v2.0)
  • Page 29 2. Press the transition type button again to bring up the transition menus. 3. Use the RlClip knob to select whether the GPI output is triggered (On), or is not triggered (Off). Carbonite Black Solo Operation Manual (v2.0) — Transitions • 29...

  • Page 30: Patterns, Washes, And Mattes

    6. Use the Border knob to apply a border to of the second custom color. the wipe. Tip: Use the Soft and NEXT > Load knobs to configure the border. 30 • Patterns, Washes, and Mattes — Carbonite Black Solo Operation Manual (v2.0)

  • Page 31: Mattes

    6. Use the Sat knob to adjust the saturation of your custom color. 7. Use the Lum knob to adjust the luminance of your custom color. Carbonite Black Solo Operation Manual (v2.0) — Patterns, Washes, and Mattes • 31...

  • Page 32: Keying

    • L/Rght — adjusts the cropping of the right side of the box mask 32 • Keying — Carbonite Black Solo Operation Manual (v2.0)

  • Page 33: Self Keys

    • Full — set the alpha to fully opaque (white). The Clip, Gain, Make Linear, and Carbonite Black Solo Operation Manual (v2.0) — Keying • 33...

  • Page 34: Ultrachrome Chroma Key

    Every time the key is initialized, the switcher control over background/foreground resets all the Chroma Key parameters to transition areas. their default settings. 34 • Keying — Carbonite Black Solo Operation Manual (v2.0)

  • Page 35: Chroma Key Advanced Mode

    You can control the upper-end of the counter-clockwise around the color Translucency range by setting a wider wheel to select a base color. hue-range to constrain the area. You can also Carbonite Black Solo Operation Manual (v2.0) — Keying • 35...
  • Page 36 15. Use the Cntrl knob to select Clip and use the 6. Press the Init knob to initialize the chroma Value knob to adjust the foreground key. clipping. 36 • Keying — Carbonite Black Solo Operation Manual (v2.0)
  • Page 37 27. Use the Cntrl knob to select Reject and use semi-transparent reflections. the Value knob to include or reject adjacent 21. Use the Type knob to select Shadow. hues to the base. Carbonite Black Solo Operation Manual (v2.0) — Keying • 37...

  • Page 38: Dve Keys

    Status page in DashBoard. b) Press HCrop and use the Left/R knob to Keep the following in mind when working crop the key horizontally on the left side with a Fly Key: only. 38 • Keying — Carbonite Black Solo Operation Manual (v2.0)

  • Page 39: To Apply A Dve To A Key (Fly Key)

    • Custom — press NEXT and use the BHue, BSat, and BLum knobs to select your own Refer to the section To Apply a Border to a color. DVE Key on page 39 for information on borders. Carbonite Black Solo Operation Manual (v2.0) — Keying • 39...

  • Page 40: Masks

    11. Adjust the position of the top and bottom 14. Use the Border and Soft knobs to apply a sides of the box mask as follows: border to the mask. 40 • Keying — Carbonite Black Solo Operation Manual (v2.0)

  • Page 41: Split Keys

    If the new alpha source is not assigned to a source button, press any other button on the key bus and use the Alpha knob to select a different alpha source. Carbonite Black Solo Operation Manual (v2.0) — Keying • 41...

  • Page 42: Memory Functions

    FLOAT mode so that key elements may be recalled to other keys than originally stored. • 1 — ME • 3 — MiniME ™ 42 • Memory Functions — Carbonite Black Solo Operation Manual (v2.0)

  • Page 43: To Recall A Memory

    • Matte colors (background, wash or memory and then recall it as stored, or override borders) the attributes stored in the memory and apply different ones when the memory is recalled. A Carbonite Black Solo Operation Manual (v2.0) — Memory Functions • 43...

  • Page 44: To Set The Program Bus Source Attribute

    • Memory — settings come from the • NoRcl — shared pattern generator memory being recalled settings are not recalled • NoRcl — transition selections are not recalled 44 • Memory Functions — Carbonite Black Solo Operation Manual (v2.0)

  • Page 45: To Set The Key Bus Sources Attribute

    • NoRcl — camera shots are not recalled 3. Use the Key knob to select the keyer you • Recall — camera shots are recalled want to set the attribute for. (default) Carbonite Black Solo Operation Manual (v2.0) — Memory Functions • 45...

  • Page 46: To Set The Roll Gpo Attribute

    You cannot clear individual memory registers. To Clear the Memory Registers 1. Press MENU > RESET > NEXT > NEXT. 2. Press the Clear Mems knob to clear the memory registers. 46 • Memory Functions — Carbonite Black Solo Operation Manual (v2.0)

  • Page 47: Switcher Sets

    • All — store all registers to the set. • Mems — store only the memory registers to the set. Carbonite Black Solo Operation Manual (v2.0) — Switcher Sets • 47...

  • Page 48: Media-Store

    (00-99), and the Item Number (0-9). The Place is through the animation by turning the either 0 for internal stills, or 1 for external. positioner clockwise or anti-clockwise when the animation is stopped. Shuttle speed is 48 • Media-Store — Carbonite Black Solo Operation Manual (v2.0)

  • Page 49: Media-Store File Specifications

    For example, press 1051 to select the USB(1) selection. drive, Media 051. • <..> — up one 4. Press Select. • USB(1) — the USB drive • Internal(0) — the internal cache Carbonite Black Solo Operation Manual (v2.0) — Media-Store • 49...

  • Page 50: Media-Store Capture

    Understanding the Attributes Menu 3. Press NEXT. When you select a still or animation, the menu system displays a number of attributes that 50 • Media-Store — Carbonite Black Solo Operation Manual (v2.0)

  • Page 51: To Lock A Media Number Place And Bank

    Lock setting are specific to the and using the MediaManager: channel they are set on. • Ross Video recommends using Google Chrome ™ v14.0 running on Microsoft ® Carbonite Black Solo Operation Manual (v2.0) — Media-Store • 51...

  • Page 52: The Mediamanager Window

    The item in the playlist that is being shown on the Media-Store channel indicated with a check-mark. The playlist does not loop back to the top when it reaches the last item. 52 • Media-Store — Carbonite Black Solo Operation Manual (v2.0)
  • Page 53 If you delete a playlist that was loaded into a Media-Store channel, it does not clear that channel. Expand or Expand or Collapse the Collapse playlist area for the Media-Store channel. Carbonite Black Solo Operation Manual (v2.0) — Media-Store • 53...

  • Page 54: Clip Player

    Transport Controls 1080p 29.97Hz 1. Step Back — Step backwards by 1/10 second. 1080p 2. Play/Pause — Play the current clip forward 25Hz at 1-times normal speed. 1080pSF 29.97Hz 54 • Clip Player — Carbonite Black Solo Operation Manual (v2.0)

  • Page 55: To Load A Clip

    When you select the clip player on a bus on the control panel, the menu follows and allows you to select and cue a clip. Carbonite Black Solo Operation Manual (v2.0) — Clip Player • 55...

  • Page 56: Custom Controls

    1. Press MENU > BANK CC > START/STOP. inserted. 2. Use the Bank knob to select the bank that the custom control you want to record will be stored on. 56 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)

  • Page 57: To Insert A Special Event Into A Custom Control

    • GPO — use the Pin knob to select the GPI • A maximum of 128 custom controls can be output run at the same time. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 57...

  • Page 58: To Run A Custom Control

    • Copy — copy the entire custom control • Delete — delete the entire custom control 5. Press the Func knob to start editing. • Delete Event — delete the currently selected event 58 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)

  • Page 59: Custom Control Events

    Click the Source button (%) field. and select the source that you want on the selected bus. Cancel All CC Special > Cancel all running custom Cancel All controls. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 59...
  • Page 60 Click the Action button Click a Mode button to and select Cut. select whether you want the chroma key to operate in basic mode (Basic), or advanced (Advanced). 60 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 61 (Reset) the parameter. color you want to apply Some selections will not to the border. be available when you reset the parameter. Enter an aspect ratio in the Value (%) field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 61...
  • Page 62 (Absolute) or reset (Reset) the parameter. Some selections will not be available when you reset the parameter. Enter the amount of cropping in the Value (%) field. 62 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 63 Enter a new size in the Enter the amount of Value (%) field. cropping in the Value (%) field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 63...
  • Page 64 ME that you want to you want to use for the perform the event on. DVE wipe. Click Reset to reset the DVE wipe parameters. 64 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 65 Enter the DID value you be available when you want to use in the Value reset the parameter. field. Enter the SDID value you want to use in the Value field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 65...
  • Page 66 GPI output that you want to configure. Click a Level to select whether the level trigger uses a high (High) or low (Low) level trigger. 66 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 67 Click the Action button and select whether they key should perform a cut (Cut), or auto transition (Auto Trans). Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 67...
  • Page 68 (On) or key you want to swap. not (Off). Loop CC Special > Insert a loop into the custom Loop control. 68 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 69 (Absolute) or reset (Reset) the parameter. Some selections will not be available when you reset the parameter. Enter a new position in the Value (%) field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 69...
  • Page 70 Some selections will not reset the parameter. be available when you Enter a new position in reset the parameter. the Value (%) field. Enter a new position in the Value (%) field. 70 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 71 Enter a size for the Some selections will not border in the Value (%) be available when you field. reset the parameter. Enter a new position in the Value (%) field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 71...
  • Page 72 Pattern Click the ME button for multiplied in the Value Mask Reset the ME that you want to field. perform the event on. Click Reset Params. 72 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 73 Click the ME/Matte Color Reset button for the ME or aux that you want to perform the event on. For an ME, click the Matte button and select Matte. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 73...
  • Page 74 Channel button for the Media-Store channel you want to perform the event on. Enter the number you want to assign to the capture file in the Capture File field. 74 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 75 (Internal) or on the USB media item in the Value (USB). field. Enter the number of the media item you want to load in the Media Number field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 75...
  • Page 76 Click the Parameter button and select Playback Speed. Enter the speed, faster or slower than 100%, that you want the animation to play at in the Value (%) field. 76 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 77 X-Pos. button and select GPO. Enter a new position in Enter the GPI output the Value field. that you want to trigger with the MediaWipe in the Value field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 77...
  • Page 78 Set Media Cut. Click the ME button for the ME that you want to perform the event on. Click the Layer button to select what the MediaWipe animation covers. 78 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 79 Click the Value button memory that you want and select whether to recall. blending is applied edge (On) or not (Off). Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 79...
  • Page 80 (Reset) the parameter. Value (%) field. Some selections will not be available when you reset the parameter. Enter the amount of offset in the Value (%) field. 80 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 81 Some selections will not be available when you reset the parameter. Click a Value button and select whether the label on the selected box is on (On) or not (Off). Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 81...
  • Page 82 (On) or Click a Value button and not (Off). select whether the label on the selected box is at the top (Top) or bottom (Bottom). 82 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 83 HSL component you want to assign a value to. A value should be applied to all three components. Enter a value for the selected component in the Value (%) field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 83...
  • Page 84 (Absolute) or reset (Reset) the parameter. Some selections will not be available when you reset the parameter. Enter the horizontal position of the clock in the Value (%) field. 84 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 85 Click a MultiViewer button to select which MultiViewer you want that you want to perform the event on. Click the Layout button and select the layout you want to use. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 85...
  • Page 86 Enter the number of the • Cut — cut the function you want to transition to the end trigger in the Function field. 86 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 87 Enter the shot number you want to recall from Click the CC button and in the Shot field. select the custom control you want to play. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 87...
  • Page 88 Click the ME button and field. select the area that you want to perform the event on. Click the Value button and select whether roll clip is on (On) or not (Off). 88 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 89 Enter the layer that you Enter the take item id of want to resume in the the item you want to Layer field. have focus in the Take ID field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 89...
  • Page 90 Click Take. for the selected source, Click the RossTalk all those entries will be Device button and deleted. select the device you want to send the RossTalk command to. 90 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 91 Enter the point in the background and/or the transition that you want keys that you want to to place the trans limit include in the next in the Value (%) field. transition. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 91...
  • Page 92 Value (%) field. Click a Channel button to select the channel you want to send the command to. 92 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 93 (Off). reset the parameter. Click the Parameter button and select Direction. Click the Value button and select whether the wipe moves in a forward (Forward) or reverse (Reverse) direction. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 93...
  • Page 94 (Reset) the parameter. Some selections will not be available when you reset the parameter. Enter an amount of softness for the pattern or border in the Value (%) field. 94 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 95 (Absolute) or reset (Reset) the parameter. Some selections will not be available when you reset the parameter. Enter a new position in the Value (%) field. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 95...

  • Page 96: Naming Custom Controls

    4. Use the Func knob to select Rename. 4. Press Copy. 5. Press the Func knob. 6. Select a name as follows: 96 • Custom Controls — Carbonite Black Solo Operation Manual (v2.0)
  • Page 97 5. Select the custom control that you want to paste into. 6. Press Paste. Carbonite Black Solo Operation Manual (v2.0) — Custom Controls • 97...

  • Page 98: Switcher Soft Reset

    You can also press and hold MENU and press with a switcher reset Reset All. 5. Repeat this for the remaining Media-Store channels. 6. Use the Attrib knob to select Aux. 98 • Switcher Soft Reset — Carbonite Black Solo Operation Manual (v2.0)

  • Page 99: Factory Default Settings

    (X is the number of the aux bus) Menu double-press the the value for that knob is Items knob for the value reset you want to reset Carbonite Black Solo Operation Manual (v2.0) — Switcher Soft Reset • 99...

  • Page 100: Glossary

    Generally, increasing the gain for a specific color component causes the video signal colors to become increasingly saturated with that color. 100 • Glossary — Carbonite Black Solo Operation Manual (v2.0)
  • Page 101 By rotating colors around the wheel, hue values will shift. Carbonite Black Solo Operation Manual (v2.0) — Glossary • 101...
  • Page 102 A multiplicative key where the Key Alpha cuts a hole based on the gradient values of the alpha. Shades of gray are translated into transparency levels, giving the key a soft edge. Unshaped Key 102 • Glossary — Carbonite Black Solo Operation Manual (v2.0)

  • Page 103: Index

    Mask (Pattern) — Edge Softness Clean Feed Mask (Pattern) — Horizontal Multiplication Color Framing Mask (Pattern) — Pattern Cut Transition Mask (Pattern) — Reset DVE Freeze Mask (Pattern) — Rotation Carbonite Black Solo Operation Manual (v2.0) — Index • 103...
  • Page 104 MultiViewer Box — Border Trans Elements MultiViewer Box — Green Tally (Preview) Trans Limit — On/Off MultiViewer Box — Label Trans Limit — Reset MultiViewer Box — Label Mode Trans Limit — Set 104 • Index — Carbonite Black Solo Operation Manual (v2.0)
  • Page 105 Advanced CutKey Basic Cropping Hold 38–39 IncKey Freeze Loop Invert Pause Key Priority Resume Mask State Menu Overview TrnKey MiniME Custom Controls (CC) Self Key Cut Transitions Split Split Keys Carbonite Black Solo Operation Manual (v2.0) — Index • 105...
  • Page 106 Access Mode Selecting Attributes Sources, Layering Bus Hold Sources, Re-Entry Effects Dissolve Split Key MemoryAI Split Keys Recall Mode Status Storing Storing Memories Memories, clear Memory AI Menus Auto-Follow Navigating 106 • Index — Carbonite Black Solo Operation Manual (v2.0)
  • Page 107 Direction Custom Control Buttons Dissolves Keyer Transition Buttons Transition Buttons Flip-Flop GPO Trigger Limit Media Washes Menu Overview WhiteFlash MiniME Wipe Transitions Pause Performing Rate Roll Clip XPression Control Wipes Carbonite Black Solo Operation Manual (v2.0) — Index • 107...
