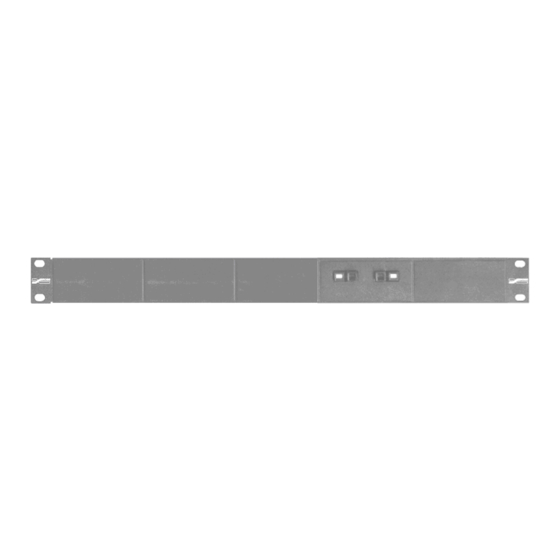

Summary of Contents for Ross RCS-8120

  • Page 1 Ross Video Limited RCS-8120 Remote Control Selector User Manual Ross Part Number: 8120SDR-004 Issue: 01A...
  • Page 2 The information contained in this User Manual is subject to change without notice or obligation. Copyright © 2005 Ross Video Limited. All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Ross Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited. Notice The material in this manual is furnished for informational use only.
  • Page 3 Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below so as to avoid personnel injury and to prevent product damage. Products may require specific equipment, and /or installation procedures be carried out to satisfy certain regulatory compliance requirements.
  • Page 4 Operation of this equipment in a residential area is likely to cause harmful interference in which case users will be required to correct the interference at their own expense. Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the user’s authority to operate this equipment.
  • Page 5 The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
  • Page 7: Table Of Contents

    Static Discharge......................2-1 Unpacking ........................2-1 Module Installation....................2-2 Cabling ........................2-4 Service Information In This Chapter ........................3-1 Troubleshooting Checklist ..................3-1 Warranty and Repair Policy ..................3-2 Ordering Information In This Chapter ........................4-1 RCS-8120 and Related Products ................4-1 Contents • i RCS-8120 User Manual (Iss. 01A)
  • Page 8 • Contents RCS-8120 User Manual (Iss. 01A)
  • Page 9: Introduction

    Ross Video’s experience in engineering and design expertise since 1974. You will be pleased at how easily your new RCS-8120 fits into your overall working environment. Equally pleasing is the product quality, reliability and functionality. Thank you for joining the group...
  • Page 10: Overview

    Each of the switches on the RCS-8120 can be used for one of two things: 1. To provide GPI control of a Ross utility switch. Connect a coax from GPI A BNC (GPI B BNC for the B switch) on the RCS-8120 to the DSS-8024 or AVS-8064 it is to control. To connect to an ADS-7864, use A Right for the A switch (B Right for the B switch).
  • Page 11: Installation And Setup

    Unpacking Unpack the RCS-8120 and related components you received from the shipping container, and check the contents against the packing list to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly.
  • Page 12: Module Installation

    Module Installation The RCS-8120 were designed to be mounted in the MRP-8120 1RU mounting panel (which can hold up to 5 modules), or mounted in desk with the DCA-8120 in desk mounting adapter. Blank cover plates are available for unused positions on the MRP-8120.
  • Page 13 6. Using a ¼” nut driver, install the four corner hex nuts to the bolts at the back of the module. 7. Install the DCA-8120 into the desk cut out. Installation and Setup • 2-3 RCS-8120 User Manual (Iss. 01A)
  • Page 14: Cabling

    Connect switch A of the RCS-8120 to the utility switch via J2 (for AVS-7864) or V1 (for DSS-8024 and AVS-8064). If using the 3 pin audio connector, use a good quality audio/control cable (i.e. Belden 1503A 22AWG shielded pair).
  • Page 15: Service Information

    Routine maintenance to this RossGear product is not required. In the event of problems with your RCS-8120, the following basic troubleshooting checklist may help identify the source of the problem. If the module still does not appear to be working properly after checking all possible causes, please contact your Ross Video products distributor, or the Ross Video Technical Support department at the numbers listed under the “Contact Us”...
  • Page 16: Warranty And Repair Policy

    FIVE (5) years from the date of shipment from our factory. In the event that your RossGear RCS-8120 proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics.
  • Page 17: Ordering Information

    • EXT-8100 Module Extender for Digital Modules Your RCS-8120 remote Control Selector is a part of the RossGear family of products. Ross Video offers a full line of RossGear terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, keyers, switchers, as well as analog audio and video products.
  • Page 18 Notes 4-2 • Ordering Information RCS-8120 User Manual (Iss. 01)
  • Page 19 Notes Ordering Information • 4-3 RCS-8120 User Manual (Iss. 01A)
  • Page 20 613 • 652 • 4886 ext. 333 After-hours Emergency 613 • 652 • 4425 General Information solutions@rossvideo.com E-MAIL Technical Support techsupport@rossvideo.com 8 John Street, Ross Video Limited Iroquois, Ontario, Canada POSTAL K0E 1K0 SERVICE P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669-0880...
