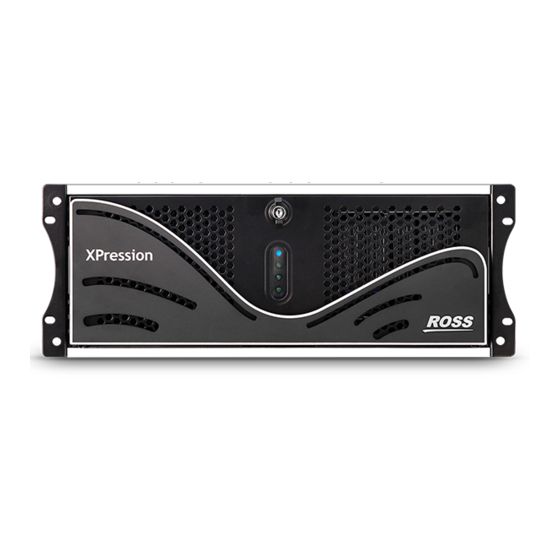

Ross XPression Getting Started

Getting Started
When contacting technical support: please
provide the information
listed on the following label,
which is located on the top
right front side of the
chassis.
Ross Video Ltd.
Part #: ###-###-##
Issue: #
Serial #: ########
#/#
1

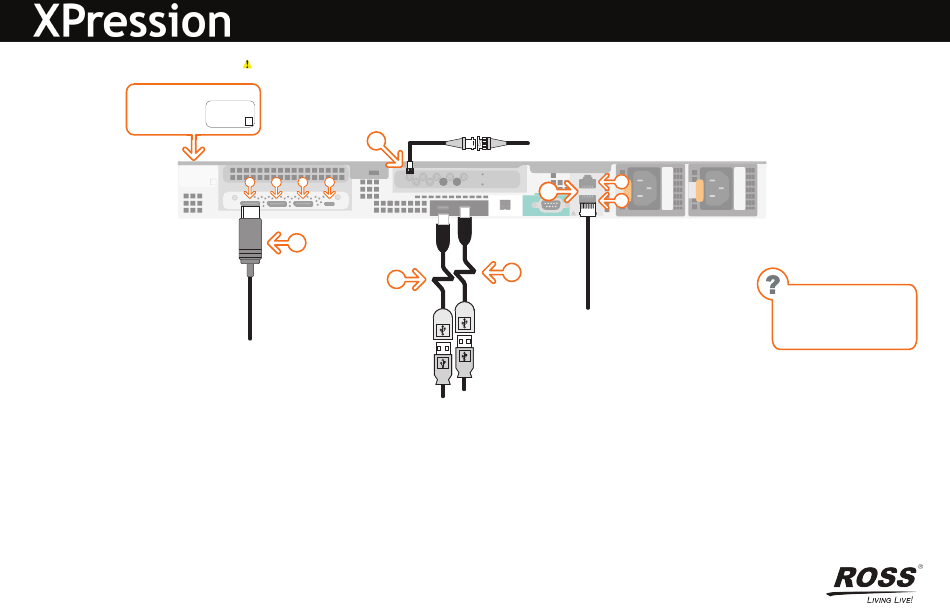

Use the supplied Rack Mount Kit to mount the Tessera system in a 19'' EIA equipment rack.
For information on installing the Tessera chassis in a rack, see the provided document "Installing the
Chassis in a Rack".
2
Plug the supplied Keyboard into one of the USB-C ports using the supplied USB-C to USB-A adapter.
3
Plug the supplied Mouse into one of the USB ports using the supplied USB-C to USB-A adapter.
4
Connect a Monitor (customer supplied) to any of the three display ports (a).
A monitor may also be connected to the USB-C port (b). When using display ports, ensure the correct
display port to DVI adapters are used (DVI-D or DVI-I).
KVM extenders (customer supplied) are required when the Tessera system monitor, keyboard, and
mouse are located remotely from the rack room.
3508DR-031-01 ©2021 Ross Video Limited, Ross®, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other trademarks are the property of their respective companies.
PATENTS ISSUED and PENDING. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,mechanical, photocopying, recording or
otherwise, without the prior written permission of Ross Video. While every precaution has been taken in the preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the information contained herein.
CAUTION: Before you set up and operate this product, see the "Important Safety Instructions" in your Manual.
Ross Video Ltd.
Part #: ###-###-##
Issue: #
Serial #: ########
#/#
6
a a a b
4
5 5
3
2
5
Plug an Ethernet cable from your Local Area Network into either the 1G (a) or 10G (b) Ethernet port.
Tessera systems can be connected to the Internet or restricted production network. The network
connection is also used to distribute assets and for the RossTalk/Smart GPI feature.
6
Connect your house reference Genlock signal to the REF mini-BNC connector.
Tessera systems accept analog blackburst or tri-level sync as reference inputs. Tri-level sync is
recommended for HD installations.
Continued on other side...
