jbc WS140 Instruction Manual

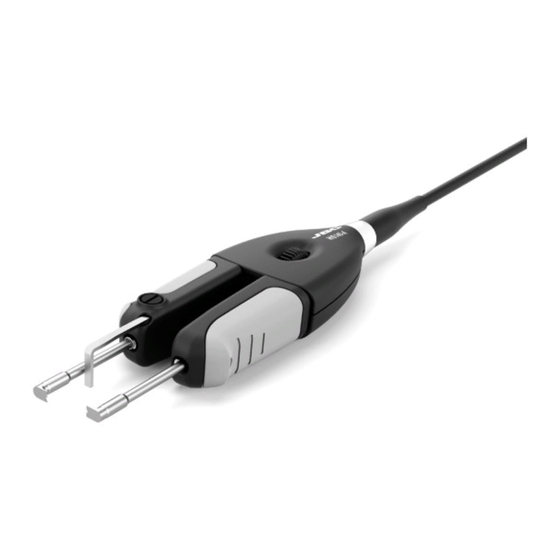

High-temperature precision wire stripper tweezers
Hide thumbs Also See for WS140:

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
WS140
High-Temperature Precision
Wire Stripper Tweezers

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc WS140

Summary of Contents for jbc WS140

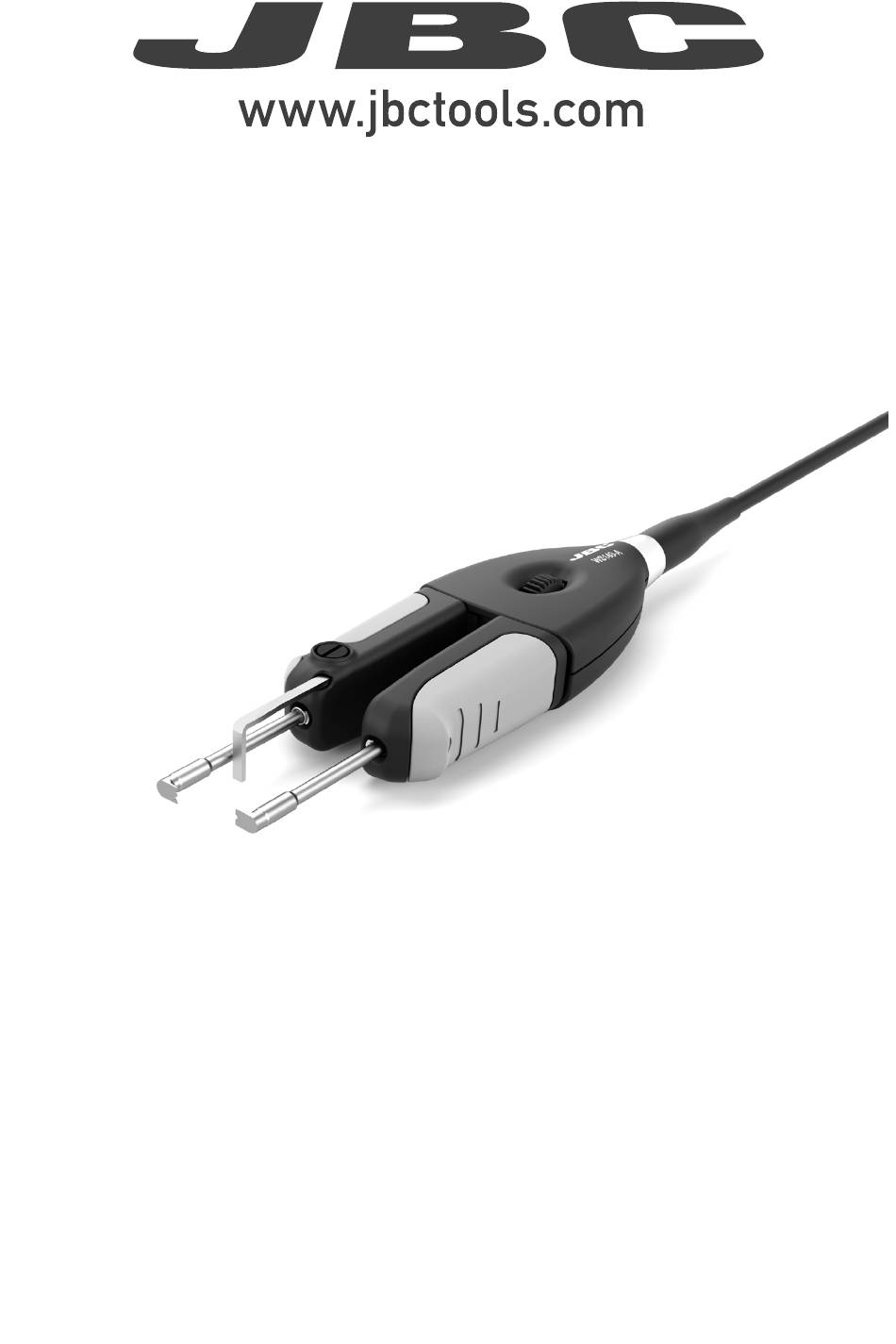

  • Page 1 INSTRUCTION MANUAL WS140 High-Temperature Precision Wire Stripper Tweezers...

  • Page 2: Packing List

    This manual corresponds to the following reference: WS140-A Packing List The following items are included: High-Temperature Precision Wire Stripper Tweezers ........ 1 unit Screw Driver ..........1 unit Ref. 0023511 Metal Brush..........1 unit Manual ..........1 unit Ref. 0022793 Ref. 0025147...

  • Page 3: Features And Connections

    USB Connector 80 mm 60 mm Equipotential Connector 50 mm Power Socket Main Switch Fuse 40 mm W140 Blade Cartridges Stand Cable (not included) Ref. 0024227 (not included) WSST WS140 Stand for High-Temperature WS140-A Precision Wire (not included) Stripper Tweezers...
  • Page 4 Changing W140 Cartridges 1. Removing 2. Inserting WS140 Reference Ring Loosen the screws and remove the cartridges. Insert the cartridge until the reference ring touches the wire stripper. Take the ring as a reference and check that both tips match.
  • Page 5 para manuales - color gris 200 mm Stripping a Wire 130 mm 130 mm 1. Adjust Arm Position 2. Align Wire 100 mm 80 mm 60 mm The wheel allows adjusting the wire stripper arm Place the wire touching the strip gauge. position according to the wire diameter.
  • Page 6 Cartridge Range WS140-A is compatible with W140 Blade Cartridge Range. Find the model that best suits your soldering needs on www.jbctools.com. Tip Hole ø Cartridge Ref. mm / in Solid Stranded W14040G W14038G W14037G W14036G W14034G 36 (7x44) 34 (7x42)
  • Page 7 80 mm 60 mm Cartridge Ref. mm / in 50 mm Flat Tip W14005F 5 / 0.197 10.5 mm 0.413 in 40 mm If an application requires a special tip design, contact JBC by mail customtips@jbctools.com for special blade cartridges.
  • Page 8 Accessories Flat Screw Driver* To loosen or tighten the wire stripper screws use the JBC Flat Screw Driver Ref. 0023511. Cartridge Extractor Pliers* To manipulate the cartridges use the JBC Cartridge Extractor Pliers Ref. PLR195. More Information at www.jbctools.com Removing Inserting and Positioning Remove cartridges with JBC pliers.
  • Page 9 para manuales - color gris 200 mm Safety 130 mm 130 mm Warning - Do not touch the blade or the metal parts around. 100 mm - Do not leave the blade close to flammable materials. - Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when wor- king to avoid personal harm.
  • Page 10 Notes Notes...
  • Page 11 para manuales - color gris 200 mm Notes Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...

  • Page 12: Specifications

    10.91 x 2.87 x 1.97 in / 0.35 lb Complies with CE standard ESD Safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
