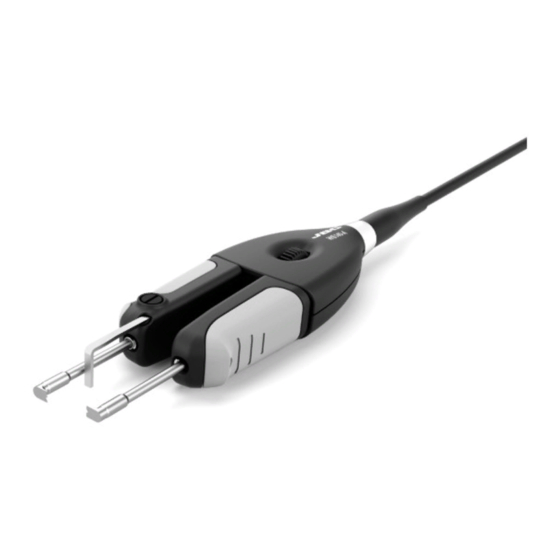

jbc WS140 Instruction Manual

High-temperature wire stipper
Hide thumbs Also See for WS140:

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
WS140
High-Temperature
Wire Stipper

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS140 and is the answer not in the manual?

Questions and answers

Related Manuals for jbc WS140

Summary of Contents for jbc WS140

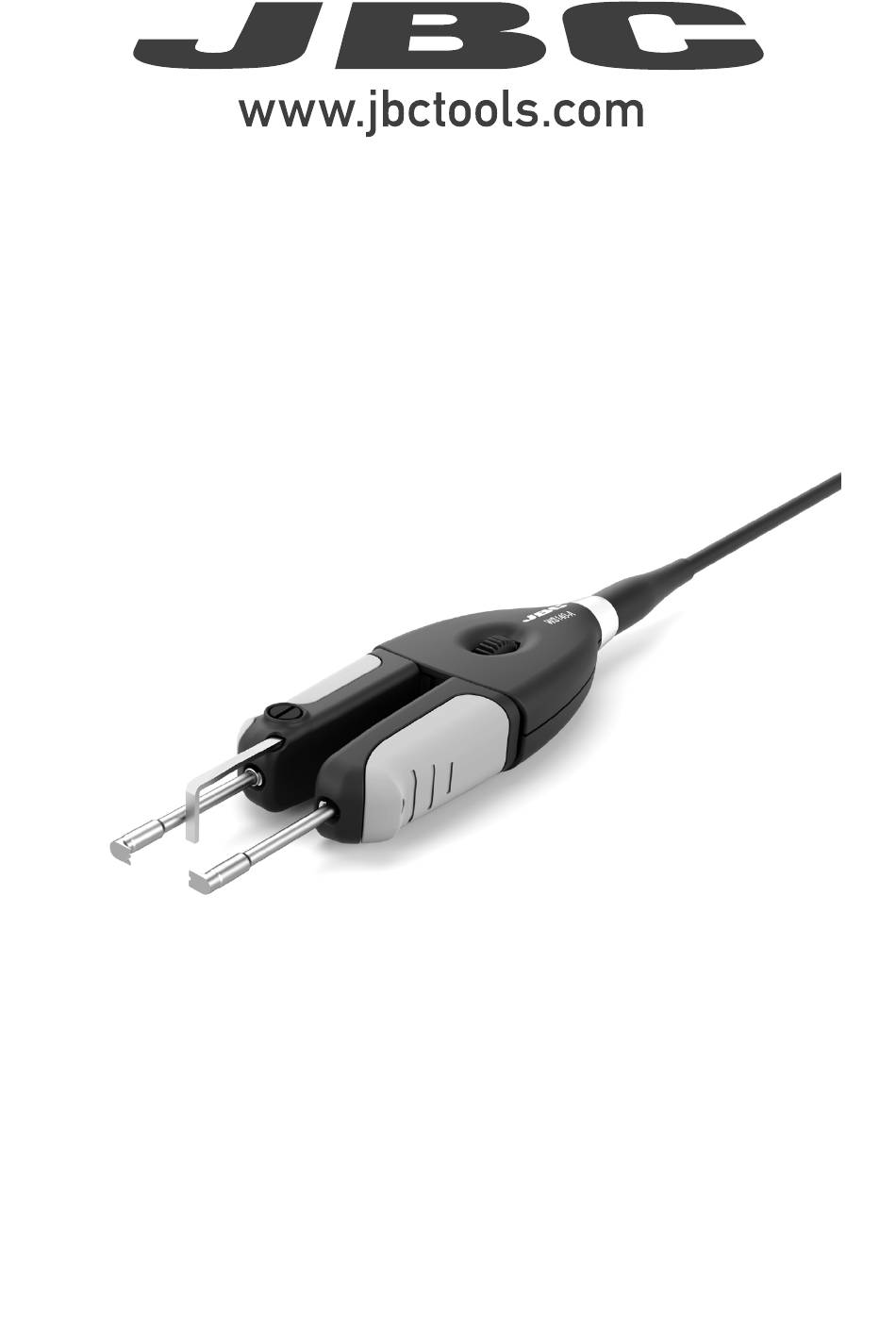

  • Page 1 INSTRUCTION MANUAL WS140 High-Temperature Wire Stipper...

  • Page 2: Table Of Contents

    Index Page 1. Packing List ........................3 2. Features & Connections ....................4 3. Changing Cartridges ......................5 4. Cartridge Range ......................6 5. Adjustable Strip Gauge ....................8 6. Stripping a Wire ....................... 8 7. Safety ..........................9 8. Specifications ........................12...

  • Page 3: Packing List

    This manual corresponds to the following reference: WS140-A Packing List The following items are included: High-Temperature Wire Stripper ..........1 unit Metal Brush..........1 unit Manual ..........1 unit Ref. 0022793 Ref. 0025147...

  • Page 4: Features & Connections

    Features and Connections WSU Control Unit (not included) USB Connector Equipotential Connector Power Socket Main Switch Fuse W140 Cartridges (not included) Stand Cable Ref. 0011283 (not included) High-Temperature Stand Wire Stripper Ref. WS-SB Ref. WS140-A (not included)

  • Page 5: Changing Cartridges

    Changing Cartridges 1. Removing 2. Inserting and Positioning WS140 Blade Cartridges Alignment Loosen the screws and remove the cartridges. Insert the new cartridges. Before tightening the screw, align the tip edges and fix the cartridges in working position.
  • Page 6 Accessories Flat Screw Driver To open or fix the Wire Stripper srews use the JBC Flat Screw Driver Ref. 0023074. Cartridge Extractor To manipulate the cartridges use the JBC Cartridge Extractor Pliers Ref. PLR195. More nformation at www@jbctools.com Removing Inserting and Positioning Remove cartriges with JBC pliers.

  • Page 7: Cartridge Range

    Cartridge Range The WS140-A works with W140 blade cartridges. Find the model that best suits your soldering needs on www.jbctools.com. Tip Hole ø Cartridge Ref. mm / in Solid Stranded W14040G W14038G W14037G W14036G W14034G 36 (7x44)
  • Page 8 1,63 / 0,0642 16 (7x24) 10.5 mm 0.413 in Cartridge Ref. mm / in Flat Tip W14005F 5 / 0.197 10.5 mm 0.413 in If an application require a special tip design, contact JBC on customtips@jbctools.com for special blade cartridges.

  • Page 9: Adjustable Strip Gauge

    w w w.jbctools.com Adjustable Strip Gauge Adjust the strip gauge according to your stripping requirements and tighten the screw. Strip Gauge Stripping a Wire 1. Adjust Arm Position 2. Align Wire The wheel allows to adjuste the Wire Stripper Place the wire touching the strip gauge. arm position accordig to the wire diameter.

  • Page 10: Safety

    Safety Warning - Do not touch the blade or the metal parts arround. - Do not allow the blade be close to flammable materials. - Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm. - This appliance can be used by children over the age of eight and also persons with reduced physi- cal, sensory or mental capabilities or lack of experience provided that they have been given adequa- te supervision or instruction concerning use of the appliance and understand the hazards involved.
  • Page 11 w w w.jbctools.com...

  • Page 12: Specifications

    In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
