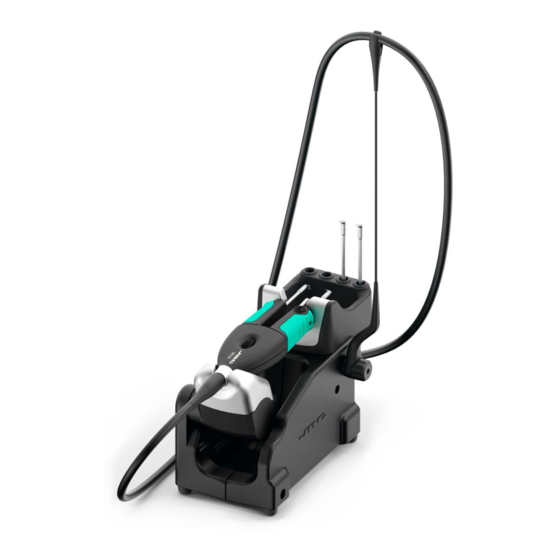

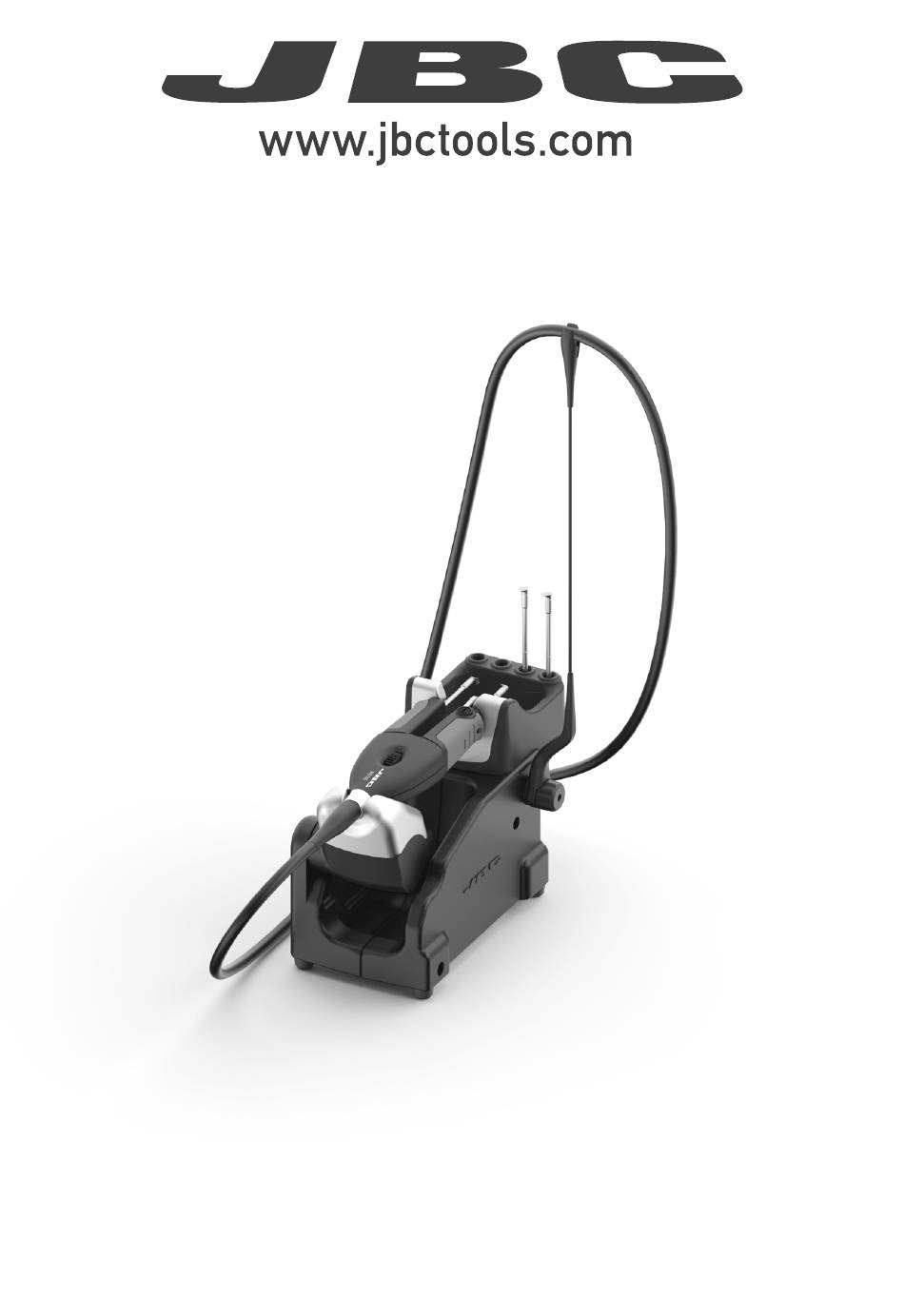

- Page 1 INSTRUCTION MANUAL WSST Stand for WS140...
-
Page 2: Packing List
This manual corresponds to the following reference: WSST-A Packing List The following items are included: Stand for WS140 ........................... 1 unit Stand Cable (1 meter length) ..... 1 unit Manual ............1 unit Ref. 0024227 Ref. 0027211... -
Page 3: Features And Connections
Control Unit* 100 mm USB Connector 80 mm 60 mm Equipotential Connector 50 mm Power Socket Main Switch Fuse 40 mm W140 Cartridges* Stand Cable Ref. 0024227 Precison High-Temperature Stand Wire Stripper Ref. WSST-A Tweezers* Ref. WS140-A * not included... - Page 4 Features and Assembly Cable Collector Cable Fastening WSST Cartridge Storage Flexible Cable Holder AP-SF HT-SF...
-
Page 5: Changing Cartridges
para manuales - color gris 200 mm Changing Cartridges 130 mm 130 mm 1. Removing 2. Inserting WS140 100 mm 80 mm Reference Ring 60 mm Loosen the screws and remove the cartridges. Insert the cartridge until the reference ring touch against the wire stripper. -
Page 6: Operation
Operation Depending on where the tool is located, the soldering station switches between three different statuses: Work, Sleep and Hibernation. 1. Work 2. Sleep 3. Hibernation When the wire stripper is lifted When the wire stripper is in the After longer periods from the stand, the cartridges... - Page 7 para manuales - color gris 200 mm Cartridge Range 130 mm 130 mm WS140-A is compatible with W140 Blade Cartridge Range. Find the model that best suits your soldering needs on www.jbctools.com. 100 mm Tip Hole ø Cartridge Ref. mm / in Solid Stranded W14040G...
- Page 8 1,63 / 0,0642 16 (7x24) 10.5 mm 0.413 in Cartridge Ref. mm / in Flat Tip W14005F 5 / 0.197 10.5 mm 0.413 in If an application requires a special tip design, contact JBC by mail customtips@jbctools.com for special blade cartridges.
-
Page 9: Maintenance
- Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. Warning - Do not touch the blade or the metal parts around. - Do not allow the blade be close to flammable materials. - Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
- Page 11 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
-
Page 12: Specifications
13.46 x 6.10 x 4.72 in / 3.61 lb Complies with CE standards ESD Safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
