INSTRUCTION MANUAL

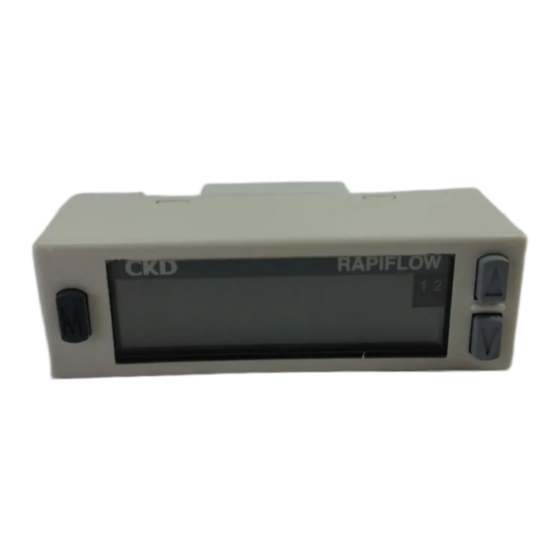

SMALL SIZE FLOW SENSOR
RAPIFLOW®
FSM２ ２ ２ ２ -D series
(Separation indicator)
●
Read this instruction manual carefully before using this
product, particularly the section describing safety.
●
Retain this instruction manual with the product for further
consultation whenever necessary.
- 1 -
D 2 - 1 8 0 1 6 6 - A
r d
3
E D I T I O N
Advertisement
Related Manuals for CKD RAPIFLOW FSM2-D Series
Summary of Contents for CKD RAPIFLOW FSM2-D Series
- Page 1 D 2 - 1 8 0 1 6 6 - A INSTRUCTION MANUAL SMALL SIZE FLOW SENSOR RAPIFLOW® FSM２ ２ ２ ２ -D series (Separation indicator) ● Read this instruction manual carefully before using this product, particularly the section describing safety. ●...
- Page 2 Warning / cautions to secure safety ●After the connectors are inserted, lay the connector covers over Caution the connectors. ●Safety cautions are ranked by the safety cautions as ●Make sure that stress by forcible bend of pulling is not applies [danger] [warning] [caution] in this section.
- Page 3 [1]Names and Functions of Each Parts <How to wiring for FMS/FSM-H/FSM-V series analog output type.> In this case, the automatic model setting function cannot be used. Please set the model with the manual. [Please refer to page 8.] Main display (Green/Red) Switch output indicator (CH1) e-con SUMITOMO 3M Wire Mount plug 37104-3122-000FL ●Displays flow rate, various switch settings.
- Page 4 [4] Function <Peak hold function> <Normal mode> Item Description <Instantaneous flow rate display> Flow rate display Instantaneous flow rate is displayed. ｍ ｍ ｍ ｍ Ｌ Ｌ Ｌ Ｌ / ｍｉｎ ｍｉｎ ｍｉｎ ｍｉｎ Integrating function Integrated flow rate is displayed. Peak hold Maximum and minimum flow rate values during the specified function...
- Page 5 <Data setting of switch output function> 5-2.Standard setting mode <How to enter to standard setting mode> Switch output setting display At instantaneous flow rate display, press ＜Instantaneous flow rate display＞ CH1 operation mode change key for 3 sec. to enter to standard ｍ...
- Page 6 <Auto reference function> 5-3.Detailed setting mode When CH2 function selected external input of auto reference, setting <How to enter to detailed setting mode> value of switch output can be taken by external input or key operation. <Instantaneous flow rate display> The set point takes the flow rate when external input is turned on (or At instantaneous flow rate display, press key operation).
- Page 7 Setting of auto reference <Setting of sub-display> Auto reference setting display Sub-display setting display Setting of CH2 function Setting of sub-display Press key to select sub-display. Press key to select CH2 function. Press key to set. Press key to set. <Working fluid>...
- Page 8 To instantaneous flow rate display An error occurred during Contact your nearest CKD Sales EEPROM reading or writing. Office or dealer. Setting at shipping out of factory Item Setting at shipping out of factory...
- Page 9 [7] Specifications Separeted indicator type Model no. Separate indicator type ＦＳＭ２－D-[※１][※２]－□－[※３] Descriptions 500mL/min、1L/min、2L/min、5L/min、10L/min、20 L/min、50 L/min Flow rate note1 100 L/min、200 L/min、500 L/min、1000 L/min、1.50m /min 5mL/min、10mL/min、50mL/min、100mL/min、4Ｌ/min、12L/min、25L/min、32L/min Ambient temperature / humidity 0 to 50°C and 90%RH or less Type of display Dual (2×4-digit 7-segment) Two-color LCD In-put signal Voltage input（1 to 5V）...
- Page 10 Blank None 1m (for Integrated indicator type) Particle occurrence prevention 3m (for Integrated indicator type) CKD Corporation 2-250, Ouji, Komaki, Aichi 485-8551, Japan http://www.ckd.co.jp We reserve the right to change dimensions, specifications and design without notice. first edit 2008.5.15 revision 2008.9.16 revision 2011.5.11...
