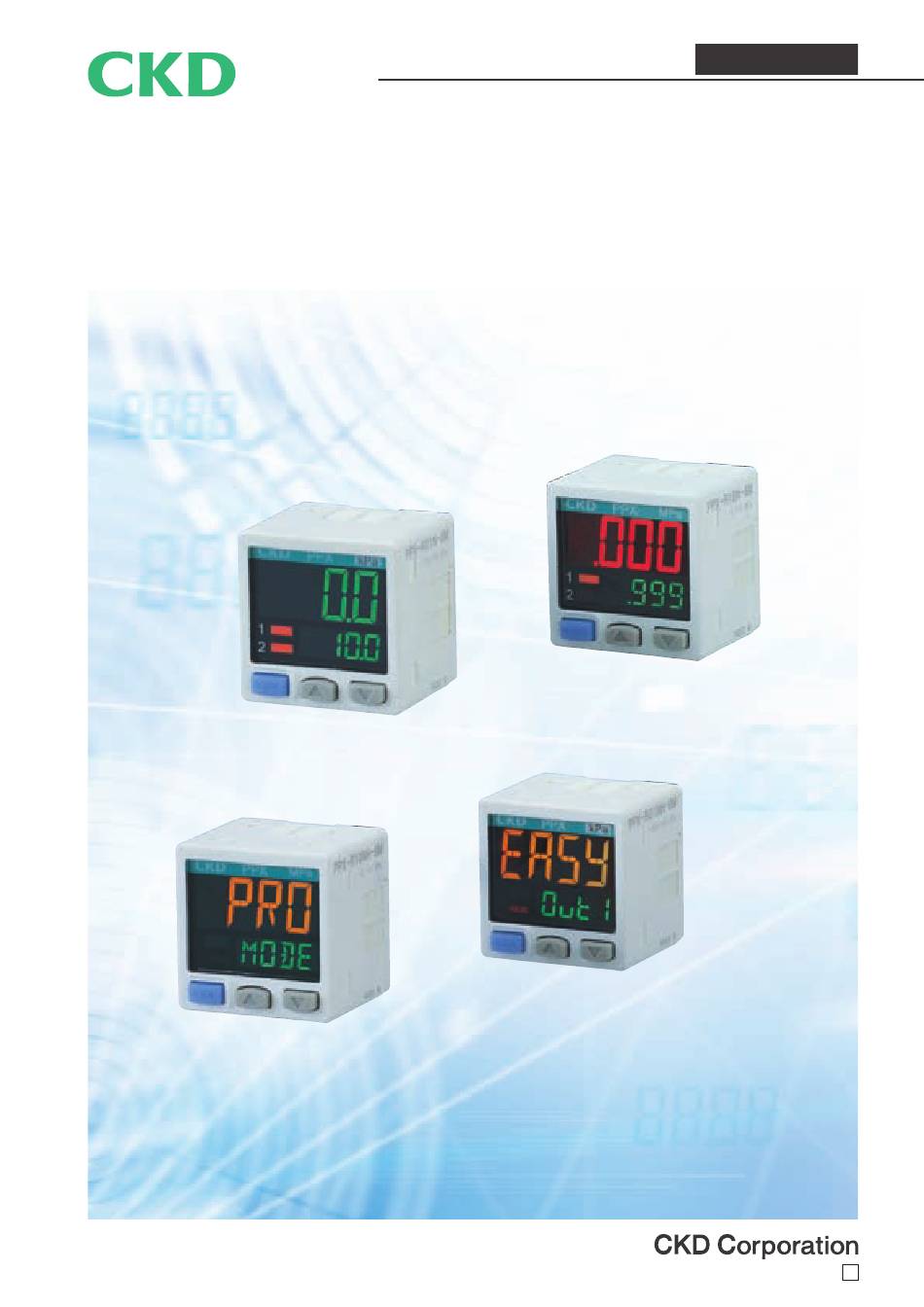

- Page 1 New product Easy to check with dual digital display! Digital pressure sensor PPX series DIGITAL PRESSURE SENSOR PPX SERIES CC-825A...
- Page 2 Easy to check with dual digital Easy to check with dual digital New easy-to-use high-function digital pressure sensor PPX series with dual display to check (current value) and (set value) of pressure at the same time, 3-color display, copy function of setting details, and 3-mode setting, etc.
- Page 3 display! display! 3-color display (red/green/orange) Independent two outputs are equipped (standard type) The main display section is changed to green/red in accordance with out- 2 independent comparison outputs are provided, so put ON/OFF, and orange during setting. The sensor state is easily read. either detection mode can be selected.
- Page 4 Digital pressure sensor applications Positive pressure and vacuum confi rmation or interlock Leakage inspection (high-function type) • Easy setting with auto-reference/remote zero adjusting VRA2000 Manifold Both vacuum pressure and break pressure can be controlled with a single unit. Tension controlling buffer FBU2 Contact confi...
-
Page 5: Safety Precautions
Use this product in accordance of specifi cations. Contact CKD when using the product outside the unique specifi cations range, when using it outdoors, and when using it under the conditions and environment below. Do not attempt to modify or additionally machine the product. -
Page 6: Design & Selection
Use conditions to comply with CE marking trol box with safety device to control internal pressure, or PPX series is CE marked products complied with EMC di- indoors with no pressure differential from the outside. rective. EN61000-6-2; regulation matched to immunity ap- plies to this product. -
Page 7: Installation And Adjustment
Series Precautions Installation & Adjustment WARNING Piping Avoid incorrect connection. Apply a 12mm spanner (14 mm for PPX-6G type) An incorrect connection may cause a fatal error not only to on the pressure port hexagon head section to fi x, this product but also peripheral devices. - Page 8 Series Installation & Adjustment Voltage must rise or fall quickly when power is turned ON CAUTION or OFF. If the rated voltage is not reached, the sensor could Care must be taken for protection of body and lead wire. malfunction. In some cases, the sensor could not recover Do not apply stress to after the rated voltage is reached.
- Page 9 Surge absorbing ele- ment (later installation) element (integrated) Disassembling the product could result in damage or deterio- ration of the product. CKD will not guarantee the performance after disassembling. When replacing or moving the product, Pressure switch Solenoid valve remove the sensor without disassembling pressurized port.
-
Page 10: Specifications
Digital pressure sensor Series JIS symbol Specifi cations Standard type High-function type Descriptions Low pressure High pressure Low pressure High pressure PPX-R01* PPX-R10* PPX-R01*H PPX-R10*H Pressure sensitive element Diffused semiconductor pressure sensor Working fl uid Air/non-corrosive gas Type of pressure Gauge pressure Rated pressure range Note 1 -100.0 to +100.0kPa... -
Page 11: How To Order
Series How to order How to order Symbol Descriptions <How to order for domestic market> Pressure range PPX- R01 N - 6M - -100.0 to 100.0kPa -0.100 to 1.000MPa Output type Pressure range NPN transistor output 2 point (standard type) Output type PNP transistor output 2 point (standard type) NPN transistor output 1 point + analog voltage output or external input (high-function type) - Page 12 Series Analog output voltage - pressure characteristics • PPX-R01NH R01PH Pressure -100.0 100.0(kPa) • PPX-R10NH R10PH Pressure -0.100 1.000(MPa)
-
Page 13: Series Dimensions
Series Dimensions Dimensions • PPX-R**-6M/6N (R/NPT thread) Sub-display section (4 digit LCD display) Main display section (4 digit LCD display) 42.5 Connector Pressure unit 25.5 R1/8 M5 female thread Setting DOWN key Output 1 operational NPT1/8 indicator light M3 female thread depth 4 Setting UP key Output 2 operational indicator light or analog... -
Page 14: Panel Cut Dimensions
Series Dimensions with options • Bracket (PPX-KL) Installation drawing 42.5 NPT1/8 R1/8 (5.3) • Panel bracket (PPX-KHS) installation drawing 33.4 18.3 34.5 Connector Panel thickness 1 to 6 Panel cut dimensions Installing 1 pc. Installing consecutive n pcs. horizontally. Installing consecutive n pcs. vertically. -0.4 31 X n pcs. - Page 15 Series Dimensions with options Dimensions with options • Front protective cover (PPX-KCB) installation drawing Front protective cover (when panel bracket used) 18.3 39.3 33.4 34.5 Connector Panel thickness 0.5 to 6 • Cable with connector (PPX-C*) (35) (50) 3.7 cable (JST MFG CO.
- Page 16 Series Circuit and connection methods NPN output type • Standard type Lead wire color of cable with connector (Brown) +V Load (Black) comparison output 1 Load 12 to 24V DC 100mA MAX. (White) comparison output 2 ±10% 100mA MAX. (Blue) 0V Internal circuit Example of external connection •...
- Page 18 Series Name of display and controls Output 1 operational indicator light Main display section Comparison output 1 ON lighting Sub-display Output 2/analog voltage output section Connector operational indicator light Standard type: Comparison output 2 ON lighting High-function type: Analog voltage output lighting during setting Pressure port Setting...
-
Page 19: Run Mode
Series How to operate Setting <Installation procedure> Menu setting mode Hold down for 2 s. This is easy setting mode. Refer to "menu setting mode" on RUN MODE page 12. This is the pressure detection state. Refer to "RUN MODE" (page 10, 11). - Page 20 Series <RUN MODE state> <Setting conditions > Auto Comparison output 1 output mode: " " (hysteresis mode) or " " (window comparator mode) Comparison output 2 output mode: " " (EASY MODE) Auto Auto <RUN MODE state> <Setting conditions > Auto Comparison output 1 output mode: "...
-
Page 21: Menu Setting Mode
Series How to operate Menu setting mode • • If the mode switchover key is held down for 2 seconds during RUN MODE, the mode is switched to menu setting mode. Hold down the mode switchover key for several seconds during the setting to switch to RUN MODE. In that case, the changed descriptions are set. •... -
Page 22: Pro Mode
Series PRO MODE • • The mode will be switched to PRO MODE if the mode switchover key is held down for 4 seconds during RUN MODE. Hold down the mode switchover key for several seconds during the setting to switch to RUN MODE. In that case, the changed descriptions are set. •... - Page 23 Series How to operate Setting descriptions Descriptions Sub-display section display during RUN MODE is switched. " ": Nothing is displayed. Sub-display section " ": The current pressure unit is displayed. switching " ": Specifi ed number is displayed. " ": Specifi ed number, character (some characters can not be displayed) or symbol is displayed. Display speed switching Display speed of pressure displayed in the main display section is switched.
- Page 24 Series Setting copy function • This makes a copy of setting details to the slave side sensor from the master side sensor. • • A copy between different models can not be made. The setting copy function applies to one slave side sensor per master side sensor. <Installation procedure>...
-
Page 25: Error Display
Series How to operate Operation chart Auto-reference input <Normal (N.O. setting for each comparison output)> (N.O. setting for each comparison output) • Detection pressure when auto-reference input: 10kPa • Output mode: Hysteresis mode Output Output Impressed pressure (kPa) Impressed pressure (kPa) 0 10 20 30 40 50 60 10 20 30 40 50 60 Displayed value (kPa) -
Page 26: Easy Mode
Series Example of setting operation per application EASY MODE (Note 1): This is the example of setting if operated from default setting (default). (Note 2): If the setting conditions are unknown, operate <reset setting> in PRO MODE, and reset to default before using. •... - Page 27 Series How to operate Example of setting operation per application HYS MODE (hysteresis mode) (Note 1): This is an example of setting if operated from default setting. (Note 2): If the setting conditions are unknown, operate <reset setting> in PRO MODE, and reset to default before using. •...
- Page 28 Series Example of setting operation per application WCMP MODE (window comparator mode) (Note 1): This is an example of setting if operated from default setting. (Note 2): If the setting conditions are unknown, operate <reset setting> in PRO MODE, and reset to default before using. •...
-
Page 29: Related Products
Series Related products Precision regulator RP1000, RP2000 series Catalog No.CB-024SA This is an appropriate regulator for applications such as tension control and balancers High accuracy pressure control Large relief fl ow Extremely low pressure setting possible (RP1000) Compact The long service life (RP2000) - Page 32 CKD（SHANGHAI） CORPORATION ●SHENYANG OFFICE ●WUXI OFFICE ●SUZHOU OFFICE ●XIAN OFFICE ●NANJING OFFICE ●BEJING OFFICE ●CHONGQING OFFICE ●HANGZHOU OFFICE ●TIANJING OFFICE ●CHENGDU OFFICE ●WUHAN OFFICE ●CHANG CHUN OFFICE ●GUANGZHOU OFFICE ●QINGDAO OFFICE ●DALIAN OFFICE ●SHENZHEN OFFICE CKD KOREA CORPORATION CKD CORPORATION EUROPE BRANCH CKD UK REPRESENTATIVE CKD CORPORATION TAIWAN BRANCH M-CKD PRECISION SDN.BHD. CKD USA CORPORATION ●JOHOR BAHRU OFFICE CKD BELGIUM ●CINCINNATI OFFICE ●MELAKA OFFICE REPRESENTATIVE ●SAN ANTONIO OFFICE ●PENANG OFFICE ●SAN JOSE OFFICE CKD CO.,LTD.,o.s. CKD SINGAPORE PTE. LTD. CZECH OFFICE CKD THAI CORPORATION LTD. ●LAEMCHABANG OFFICE ●NAVANAKORN OFFICE ●RAYONG OFFICE ...
