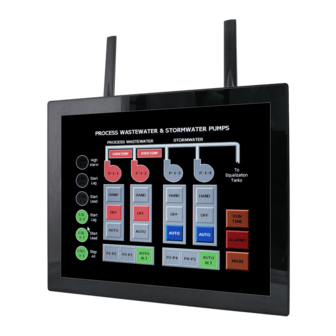

- Page 1 Advanced Rugged Panel PC with Onboard Tiger Lake U 11th Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor Quick Reference Guide Ed – 17 February 2023 Copyright Notice Copyright 2023 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017F178A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
2.5.15 SATA Power connector 1 (SPWR1) ..................27 2.5.16 Power connector (PWR1) ...................... 27 2.5.17 USB connector 3 (JUSB3) ..................... 28 2.5.18 USB connector 4 (JUSB4) ..................... 28 2.5.19 Speaker connector (SPK1) ....................29 2.5.20 SPI connector (JSPI1) ......................29 4 ARC-1738-C1 Quick Reference Guide... - Page 5 2.5.25 Miscellaneous setting connector 2 (FPT2) ................32 2.5.26 LPC connector (JLPC1) ......................32 2.5.27 CPU fan connector (CPU_FAN1) ..................33 2.5.28 USIM connector (USIM2) ...................... 33 2.6 Mounting the system (ARC-1738-C1) ..............34 2.6.1 Wall Mounting ........................34 2.6.2 Arm/ Stand Mounting ......................
- Page 6 4.4 Install ME Driver ...................... 74 4.5 Install Audio Driver (For Realtek ALC897 and ALC888S HD Audio) ....... 75 4.6 Realtek Audio Console .................... 76 4.7 Install LAN Driver ....................77 4.8 Install RST for RAID Driver ..................78 6 ARC-1738-C1 Quick Reference Guide...
-
Page 7: Getting Started
Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions 1.2 Packing List 1 x ARC-1738-C1 Panel PC 1 x Power Adapter ... -
Page 8: System Specifications
LCD Panel AUO M170ETN01.1,17" 1280*1024 250NITS LCD Control Board Built-in MY-5QH185，For M170ETN01_V10B1DB Inverter/Converter Touch Screen 17" PCAP Touch Panel，MX170CN654A0 Touch Controller ICI2510P.C3.P2.V1 External I/O COM1: RS232/422/485 Serial Port COM2~3: RS232 COM4~6: 3 x RS232/GPIO/USB 2.0 (optional) 8 ARC-1738-C1 Quick Reference Guide... - Page 9 2 Test frequency : 5~500 Hz 3 Sweep：1 Oct/ per one minute. (logarithmic) 4 Test Axis : X,Y and Z axis 5 Test time :30 min. each axis 6 System condition : Non-Operating mode 7. Reference IEC 60068-2-6 Testing procedures ARC-1738-C1 Quick Reference Guide...
- Page 10 3 Package weight : 4.4 Kg 4 Test drawing Operating 0 ~ 50°C Temperature *Air flow=0.5 m/s Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Storage -20°C ~ 60°C Temperature Note: Specifications are subject to change without notice. 10 ARC-1738-C1 Quick Reference Guide...
-
Page 11: System Overview
Power Switch Power on button DC-IN DC power-in connector mini Din 4Pin COM1: RS232/422/485 COM2~3: RS232 COM1/2/3/4/5/6 Serial port connector 1/2/3/4/5/6 COM4~6: 3 x RS232/GPIO/USB 2.0 (optional) 2 x DP connector RJ-45 Ethernet connector 1/2 LAN1/2 ARC-1738-C1 Quick Reference Guide 11... -
Page 12: System Dimensions
ARC-1738-C1 1.5 System Dimensions (Unit: mm) 12 ARC-1738-C1 Quick Reference Guide... -
Page 13: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw ARC-1738-C1 Quick Reference Guide 13... -
Page 14: Serial Port Connector 1 (Com1)
ARC-1738-C1 2.1 ARC-1738-C1 connector mapping 2.1.1 Serial port connector 1 (COM1) RS-232 Signal PIN PIN Signal RS-422/485 Signal PIN PIN Signal 422RX+ 485TX+ 422RX- 485TX- 2.1.2 Serial port connector 2/3 (COM2/3) Signal PIN PIN Signal 14 ARC-1738-C1 Quick Reference Guide... -
Page 15: Installing Hard Disk & Memory
Quick Reference Guide 2.2 Installing Hard Disk & Memory Step 1. Memory Installation: Remove 6 screws to release the chassis cover, and remove it. Step 2 Insert the SODIMM into the memory socket. ARC-1738-C1 Quick Reference Guide 15... - Page 16 ARC-1738-C1 Step 3.1 HDD Installation: Insert the HDD into the Drive Bay and fasten 4 screws. Step 3.2 Re-assemble your system back through previous steps to complete the installation. 16 ARC-1738-C1 Quick Reference Guide...
-
Page 17: Motherboard Overviews
Quick Reference Guide 2.3 Motherboard Overviews ARC-1738-C1 Quick Reference Guide 17... -
Page 18: Motherboard Jumper And Connector List
M.2 2230 Type E Slot M.2 3042/2242/2260/2280 Type B Slot M2KB1 DP1/2 DP connector 1/2 Serial Port 1/2 RS485/422 Mode JRS485_1/2 3 x 2 header, pitch 2.00mm connector 5 x 2 header, pitch 2.00mm JLPC LPC connector 18 ARC-1738-C1 Quick Reference Guide... - Page 19 4 x 1 wafer, pitch 2.54mm SPWR1 SATA Power connector 1 USIM1 USIM card slot USIM2 USIM connector 10 x 1 header, pitch 0.50mm CPU_FAN1 CPU fan connector 4 x 1 wafer, pitch 2.54mm PCIEX4_1 PCle x4 connector ARC-1738-C1 Quick Reference Guide 19...
-
Page 20: Motherboard Jumpers & Connectors Settings
ARC-1738-C1 2.5 Motherboard Jumpers & Connectors settings 2.5.1 Serial port 1/2 pin9 signal select (JRI1/JRI2) JRI1 Ring* JRI2 +12V * Default 2.5.2 LVDS Back Light power selection (JSBKL1) PWM Mode* DC Mode * Default 20 ARC-1738-C1 Quick Reference Guide... -
Page 21: At/Atx Power Mode Select (Jsatx1)
Quick Reference Guide 2.5.3 AT/ATX Power Mode Select (JSATX1) ATX* * Default 2.5.4 M2KB1 Voltage setting (JP1) +3.8V +3.3V* * Default ARC-1738-C1 Quick Reference Guide 21... -
Page 22: Clear Cmos (Jbat1)
ARC-1738-C1 2.5.5 Clear CMOS (JBAT1) Protect* Clear CMOS * Default 2.5.6 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLT_EN LVDS_BKLTCTL 22 ARC-1738-C1 Quick Reference Guide... -
Page 23: Lcd Inverter Connector (Jbkl2)
LVDS_DATA0_N 12 11 LVDS_DATA1_N LVDS_DATA2_P 16 15 LVDS_DATA3_P LVDS_DATA2_N 18 17 LVDS_DATA3_N LVDS_DATA4_P 22 21 LVDS_DATA5_P LVDS_DATA4_N 24 23 LVDS_DATA5_N LVDS_DATA6_P 28 27 LVDS_DATA7_P LVDS_DATA6_N 30 29 LVDS_DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_ CLK1_N LVDS_ CLK2_N +V12S_LVDS +V12S_LVDS ARC-1738-C1 Quick Reference Guide 23... -
Page 24: Edp_Panel Connector (Edp1)
Signal EDP_PANEL_TXN0 EDP_PANEL_TXN3 EDP_PANEL_TXP0 EDP_PANEL_TXP3 EDP_PANEL_TXN1 EDP_PANEL_TXP1 11 EDP_PANEL_AUXN EDP_PANEL_AUXP EDP_PANEL_TXN2 15 EDP_PANEL_TXP2 17 EDP_PANEL_HPD +V35_EDP +V35_EDP 2.5.10 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_SCL_S0_3P3EXT 17 18 SMB_SDA_S0_3P3EXT (Max current = 0.5A) 24 ARC-1738-C1 Quick Reference Guide... -
Page 25: Serial Port1 Connector (Jcom1)
Quick Reference Guide 2.5.11 Serial port1 connector (JCOM1) Signal PIN PIN Signal COM_DCD#_1 COM_RXD_1 COM_TXD_1 COM_DTR#_1 COM_DSR#_1 COM_RTS#_1 COM_CTS#_1 COM_RI#_1 2.5.12 Serial port2 connector (JCOM2) Signal PIN PIN Signal COM_DCD#_2 COM_RXD_2 COM_TXD_2 COM_DTR#_2 COM_DSR#_2 COM_RTS#_2 COM_CTS#_2 COM_RI#_2 ARC-1738-C1 Quick Reference Guide 25... -
Page 26: Serial Port 3/4/5/6 Connector (Jcom3/4/5/6)
COM_DCD#_5 COM_RI#_4 COM_CTS#_4 COM_RTS#_4 COM_DSR#_4 COM_DTR#_4 COM_TXD_4 COM_RXD_4 COM_DCD#_4 COM_RI#_3 COM_CTS#_3 COM_RTS#_3 COM_DSR#_3 COM_DTR#_3 COM_TXD_3 COM_RXD_3 COM_DCD#_3 2.5.14 Serial Port 1/2 RS485/422 Mode connector (JRS485_1/2) JRS485_2 JRS485_1 Signal PIN PIN Signal 485_422TX- 422RX- 485_422TX+ 422RX+ 26 ARC-1738-C1 Quick Reference Guide... -
Page 27: Sata Power Connector 1 (Spwr1)
Quick Reference Guide 2.5.15 SATA Power connector 1 (SPWR1) Signal +V5S_SATA +V12S_SATA 2.5.16 Power connector (PWR1) Signal Signal +VIN +VIN ARC-1738-C1 Quick Reference Guide 27... -
Page 28: Usb Connector 3 (Jusb3)
ARC-1738-C1 2.5.17 USB connector 3 (JUSB3) Signal Signal +V5A_USB56 +V5A_USB56 USB_DN5 USB_DN6 USB_DP5 USB_DP6 2.5.18 USB connector 4 (JUSB4) Signal Signal +V5A_USB78 +V5A_USB78 USB_DN7 USB2_ DN8 USB_DP7 USB2_ DP8 28 ARC-1738-C1 Quick Reference Guide... -
Page 29: Speaker Connector (Spk1)
Quick Reference Guide 2.5.19 Speaker connector (SPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- 2.5.20 SPI connector (JSPI1) Signal PIN PIN Signal +V3.3A_1.8A_SPI SPI0_CS0# SPI0_BIOS_CLK SPI0_BIOS_MISO SPI0_BIOS_MOSI BIOS_HOLD# BIOS_WP# ARC-1738-C1 Quick Reference Guide 29... -
Page 30: Battery Connector (Bt1)
ARC-1738-C1 2.5.21 Battery connector (BT1) Signal +RTCBAT 2.5.22 Audio connector (JFAUD1) Signal PIN PIN Signal LINEOUT_R LINEOUT_L GND_AUD GND_AUD LINEIN_R LINEIN_L MICIN_R MICIN_L LINEOUT1_JD LINE1-JD MIC1_JD GND_AUD 30 ARC-1738-C1 Quick Reference Guide... -
Page 31: Ec Debug (Jec_Spi)
2.5.23 EC Debug (JEC_SPI) Signal PIN PIN Signal +V3.3A_EC EC_FSCE# EC_FSCK EC_FMISO EC_FMOSI EC_HOLD# EC_SMCLK_DEBUG 10 EC_SMDAT_DEBUG 2.5.24 Miscellaneous setting connector 1 (JFPT1) Signal PIN PIN Signal -PWR_BNT -Reset +PWR_BNT +Reset -PWR_LED -HD_LED +PWR_LED +HD_LED ARC-1738-C1 Quick Reference Guide 31... -
Page 32: Miscellaneous Setting Connector 2 (Fpt2)
ARC-1738-C1 2.5.25 Miscellaneous setting connector 2 (FPT2) Signal PIN PIN Signal Speaker- BLK_DN BLK_UP BLK_VR(10K) Speaker+ 2.5.26 LPC connector (JLPC1) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 PLT_BUF_RST# LPC_AD2 LPC_LFRAME# LPC_AD3 CLK_24M_80 LPC_SERIRQ 32 ARC-1738-C1 Quick Reference Guide... -
Page 33: Cpu Fan Connector (Cpu_Fan1)
Quick Reference Guide 2.5.27 CPU fan connector (CPU_FAN1) Signal +12V CPU_FANIN FAN_PWM0 2.5.28 USIM connector (USIM2) Signal +VCC_SIM UIM_R_RESET# UIM_R_CLK UIM_R_DATA SIM_DET ARC-1738-C1 Quick Reference Guide 33... -
Page 34: Mounting The System (Arc-1738-C1)
ARC-1738-C1 2.6 Mounting the system (ARC-1738-C1) The panel PC supports various mounting options, as listed below. Wall mounting Arm/ Stand mounting Panel mounting 2.6.1 Wall Mounting To mount the panel PC onto wall, follow the instruction below (see Figure for addition reference). - Page 35 PC with the wall mount plate on the wall and slide the panel PC downwards to hang the bracket on the mount plate. Secure the panel PC in place by tightening screws in the wall mount bracket. ARC-1738-C1 Quick Reference Guide 35...
-
Page 36: Arm/ Stand Mounting
ARC-1738-C1 2.6.2 Arm/ Stand Mounting ARC-1738-C1 can be mounted on a VESA-compliant arm mount with a 100mm interface pad. To affix the panel PC to an arm mount, follow the steps below. 1. Refer to the installation instruction of mounting arm/ stand to correctly assembly the arm/ stand onto the surface as a base. -
Page 37: Panel Mounting
2.6.3 Panel Mounting To mount the flat bezel panel PC into a panel, follow the steps below. 1. Prepare a panel cutout according to the panel PC dimensions. For ARC-1738-C1 the panel cutout dimension is 382.5 x 315.2 mm 2. Install the panel PC in the cabinet and retrieve hook brackets from the accessory box... - Page 38 3. Insert the hook brackets into the holes following the direction of the arrows shown in below figure and hang the panel PC 4. Tighten the screws to affix the panel PC in place, fasten all the hook bracket to ensure panel PC well fix at cabinet 38 ARC-1738-C1 Quick Reference Guide...
-
Page 39: Bios Setup
Quick Reference Guide 3.BIOS Setup ARC-1738-C1 Quick Reference Guide 39... -
Page 40: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 40 ARC-1738-C1 Quick Reference Guide... -
Page 41: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. ARC-1738-C1 Quick Reference Guide 41... -
Page 42: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 42 ARC-1738-C1 Quick Reference Guide... -
Page 43: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. ARC-1738-C1 Quick Reference Guide 43... -
Page 44: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 44 ARC-1738-C1 Quick Reference Guide... -
Page 45: Connectivity Configuration
Disable Integrated[Default] CNVi Mode default. Otherwise Integrated solution (CNVi) will be enabled; Auto Detection [Disable Integrated] disables Integrated Solution. NOTE: When CNVi is present, the GPIO pins that are used for radio 3.6.2.2 CPU Configuration ARC-1738-C1 Quick Reference Guide 45... -
Page 46: Power & Performance
Intel (VMX) Virtualization Disabled hardware capabilities provided by Vanderpool Technology Enabled[Default], Technology. All[Default], Number of cores to enable in each processor Active Processor Cores 1/2/3 package. 3.6.2.3 Power & Performance 3.6.2.3.1 CPU - Power Management Control 46 ARC-1738-C1 Quick Reference Guide... -
Page 47: Pch-Fw Configuration
C states Enabled[Default], CPU to go to C states when it's not 100% utilized. Disabled Enable/Disable C1E. When enabled, CPU will switch Enhanced C-states Enabled[Default], to minimum speed when all cores enter C-State. 3.6.2.4 PCH-FW Configuration ARC-1738-C1 Quick Reference Guide 47... -
Page 48: Firmware Update Configuration
3.6.2.5 Trusted Computing Item Options Description Enables or Disables BIOS support for security device. Security Device Disabled O.S. will not show Security Device. TCG EFI protocol Support Enabled[Default], and INT1A interface will not be available. 48 ARC-1738-C1 Quick Reference Guide... -
Page 49: Acpi Settings
SUSPEND button is pressed. 3.6.2.7 IT8528 Super IO Configuration You can use this item to set up or change the IT8528 Super IO configuration for serial ports. Please refer to 3.6.2.7.1~ 3.6.2.7.6 for more information. ARC-1738-C1 Quick Reference Guide 49... -
Page 50: Serial Port 1 Configuration
Set Parameters of Serial Port 6 (COMF). 3.6.2.7.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 50 ARC-1738-C1 Quick Reference Guide... -
Page 51: Serial Port 2 Configuration
UART 422, Change the Serial Port as RS232/422/485. UART 485 *The following setting are from MB EMX-TGLC, the ARC-1738-C1 has been set as COM1: RS232/422/485 & COM2~3: RS232 by cable. If COM1/COM2 want to change as setting, please contact with Avalue. -
Page 52: Serial Port 4 Configuration
3.6.2.7.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.7.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 52 ARC-1738-C1 Quick Reference Guide... -
Page 53: Serial Port 6 Configuration
Quick Reference Guide 3.6.2.7.6 Serial Port 6 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.8 EC 8528 H/W monitor ARC-1738-C1 Quick Reference Guide 53... -
Page 54: S5 Rtc Wake Settings
Wake system from S5 Fixed Time specified. Select DynamicTime, System will wake on Dynamic Time the current time + Increase minutes(s). 3.6.2.10 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. 54 ARC-1738-C1 Quick Reference Guide... -
Page 55: Network Stack Configuration
Optical drives are emulated as ‘CDROM’, drives with Hard Disk no media will be emulated according to a drive type. CD-ROM 3.6.2.11 Network Stack Configuration Item Option Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] ARC-1738-C1 Quick Reference Guide 55... -
Page 56: Nvme Configuration
ARC-1738-C1 3.6.2.12 NVMe Configuration 3.6.3 Chipset 56 ARC-1738-C1 Quick Reference Guide... -
Page 57: System Agent (Sa) Configuration
Quick Reference Guide 3.6.3.1 System Agent (SA) Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] 3.6.3.1.1 Memory Configuration ARC-1738-C1 Quick Reference Guide 57... -
Page 58: Graphics Configuration
Select which of IGFX/PEG/PCI Graphics device should Auto[Default] Primary Display IGFX be Primary Display Or select HG for Hybrid Gfx. 3.6.3.1.3 VMD Configuration Item Option Description Disabled[Default] Enable VMD controller Enable/Disable to VMD controller Enabled 58 ARC-1738-C1 Quick Reference Guide... -
Page 59: Pch-Io Configuration
Quick Reference Guide 3.6.3.2 PCH-IO Configuration Item Option Description Enabled[Default] PCH LAN Controller Enable/Disable onboard NIC. Disabled 3.6.3.2.1 PCI Express Configuration ARC-1738-C1 Quick Reference Guide 59... -
Page 60: Pci Express Root Port 5(Lan2-I225/I226)
L0s State AUTO – BIOS auto configure DISABLE – ASPM L0sL1 Disables ASPM. Auto Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCIe speed. Gen2 Gen3 60 ARC-1738-C1 Quick Reference Guide... -
Page 61: Pci Express Root Port 6(M.2 Keye)
L0s State AUTO – BIOS auto configure DISABLE – ASPM L0sL1 Disables ASPM. Auto Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCIe speed. Gen2 Gen3 ARC-1738-C1 Quick Reference Guide 61... -
Page 62: Pci Express Root Port 8(M.2 Keyb)
L0s State AUTO – BIOS auto configure DISABLE – ASPM L0sL1 Disables ASPM. Auto Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCIe speed. Gen2 Gen3 62 ARC-1738-C1 Quick Reference Guide... -
Page 63: Sata And Rst Configuration
Enable/Disable SATA Port 1 DevSlp. For DevSlp to work, both hard drive and SATA port need to support Disabled SATA Port 1 DevSlp DevSlp function, otherwise an unexpected Enabled[Default], behavior might happen. Please check board design before enabling it. ARC-1738-C1 Quick Reference Guide 63... -
Page 64: Hd Audio Configuration
3.6.3.2.3 HD Audio Configuration Item Option Description Control Detection of the HD-Audio device. Disable = Disabled HD Audio HDA will be unconditionally disabled Enabled = HDA Enabled[Default], will be unconditionally enabled. 3.6.3.2.4 Board & Panel Configuration 64 ARC-1738-C1 Quick Reference Guide... - Page 65 Enabled/Disabled USB Standby Power during USB Standby Power Enabled[Default], S3/S4/S5 2W[Default], Amplifier Gain Amplifier Gain Low[Default], M.2 KeyB P38 Setting Set M.2 KeyB Pin38(DEVSLP) as Low/High High Disabled[Default], SHOW DMI INFO SHOW DMI INFO Enabled ARC-1738-C1 Quick Reference Guide 65...
-
Page 66: Security
ARC-1738-C1 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password 3.6.4.1 Secure Boot menu 66 ARC-1738-C1 Quick Reference Guide... -
Page 67: Security
On[Default] Bootup NumLock State Select the Keyboard NumLock state Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1 Set the system boot order. Boot Option #2 Set the system boot order. ARC-1738-C1 Quick Reference Guide 67... -
Page 68: Save And Exit
ARC-1738-C1 3.6.6 Save and exit 3.6.6.1 Save Changes and Reset Reset the system after saving the changes. 3.6.6.2 Discard Changes and Reset Reset system setup without saving any changes. 68 ARC-1738-C1 Quick Reference Guide... -
Page 69: Restore Defaults
Quick Reference Guide 3.6.6.3 Restore Defaults Restore/Load Default values for all the setup options. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. ARC-1738-C1 Quick Reference Guide 69... -
Page 70: Drivers Installation
ARC-1738-C1 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 70 ARC-1738-C1 Quick Reference Guide... -
Page 71: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Complete setup. Step 2. Click Accept. ARC-1738-C1 Quick Reference Guide 71... -
Page 72: Install Vga Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Start. Step 1. Click Begin installation. Step 4. Click Reboot now. Step 2. Click Next to accept license agreement. 72 ARC-1738-C1 Quick Reference Guide... -
Page 73: Install Serial Io Driver
Continue to go on. Step 3. Click Next. Step 4. Click Next. Step 1. Click Next to continue setup. Step 5. Click Finish to complete the setup. Step 2. Click Next. ARC-1738-C1 Quick Reference Guide 73... -
Page 74: Install Me Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 4. Click Finish to complete setup. Step 1. Click Next to continue setup. Step 2. Click Next. 74 ARC-1738-C1 Quick Reference Guide... -
Page 75: Install Audio Driver (For Realtek Alc897 And Alc888S Hd Audio)
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Click Next to Install. Step 2. Click Finish to complete setup. ARC-1738-C1 Quick Reference Guide 75... -
Page 76: Realtek Audio Console
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Step 3. Step 2. 76 ARC-1738-C1 Quick Reference Guide... -
Page 77: Install Lan Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 1. Click OK. Step 2. Click Close. ARC-1738-C1 Quick Reference Guide 77... -
Page 78: Install Rst For Raid Driver
If the warning message appears while the installation Step 3. Click Next. process, click Continue to go on. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Complete setup. 78 ARC-1738-C1 Quick Reference Guide...
