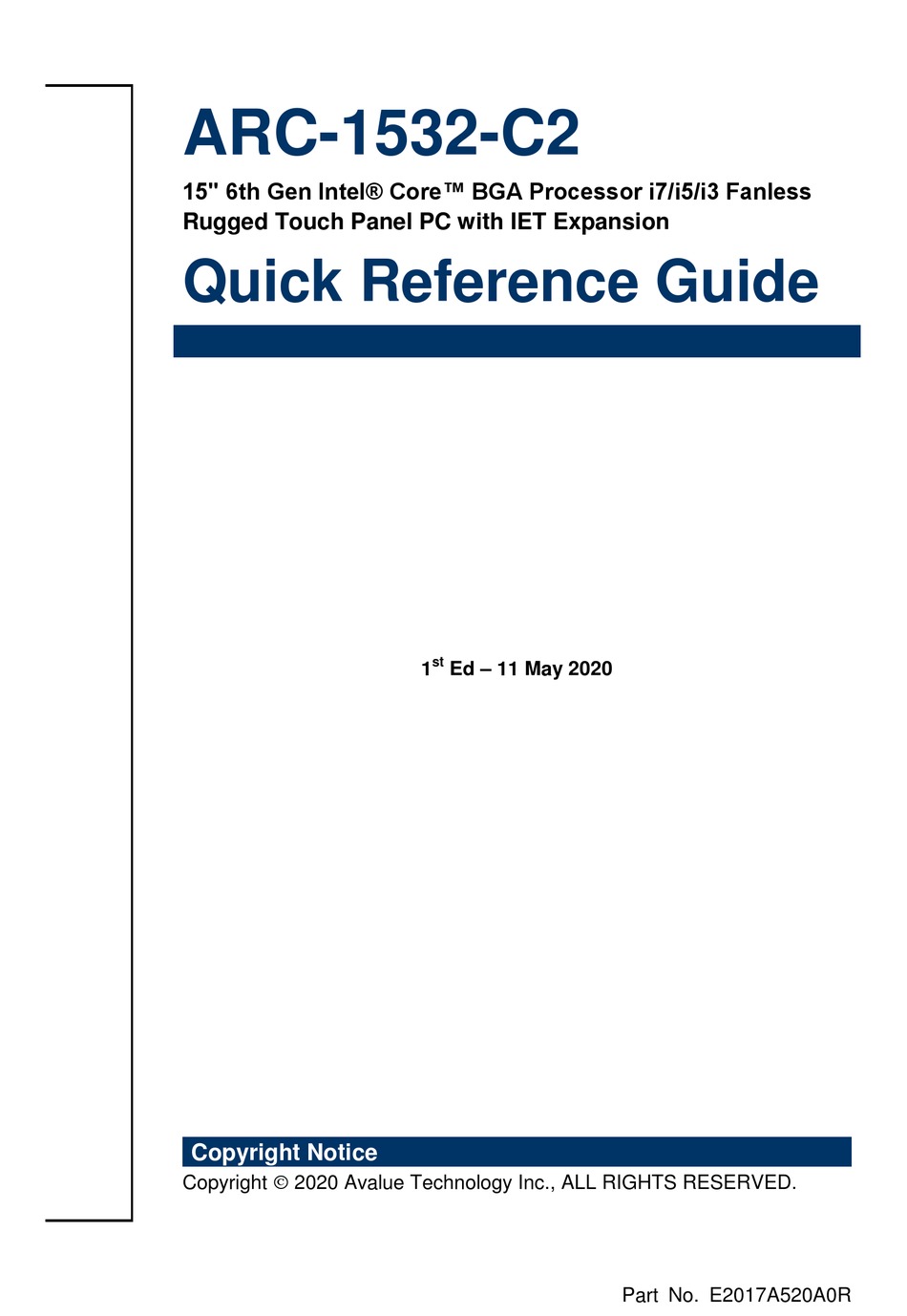

Page 1: St Ed - 11 May 2020
ARC-1532-C2 15" 6th Gen Intel® Core™ BGA Processor i7/i5/i3 Fanless Rugged Touch Panel PC with IET Expansion Quick Reference Guide Ed – 11 May 2020 Copyright Notice Copyright 2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017A520A0R... - Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 ARC-1532-C2 Quick Reference Guide...
-
Page 3: Table Of Contents
Serial port 2/3/4/5/6 connector (COM2/3/4/5/6) ..............13 2.1.3 VGA connector (VGA) ......................14 2.2 Installing Mounting Brackets (ARC-1532-C2) ............15 2.3 Installing VESA Mounting (ARC-1532-C2) .............. 16 2.4 EMX-SKLUP Overviews ..................17 2.5 EMX-SKLUP Jumper and Connector list ..............19 2.6 EMX-SKLUP Jumper and Connector settings ............ - Page 4 Serial Port 4 Configuration ....................... 48 3.6.2.5.5 Serial Port 5 Configuration ....................... 49 3.6.2.5.6 Serial Port 6 Configuration ....................... 49 3.6.2.6 H/W Monitor ............................. 50 3.6.2.6.1 Smart Fan Mode Configuration ......................50 3.6.2.7 S5 RTC Wake Settings ........................51 4 ARC-1532-C2 Quick Reference Guide...
- Page 5 Boot ............................75 3.6.6 Save and exit ........................76 3.6.6.1 Save Changes and Reset ........................ 76 3.6.6.2 Discard Changes and Reset ......................76 3.6.6.3 Restore Defaults ..........................76 3.6.6.4 Launch EFI Shell from filesystem device ..................76 ARC-1532-C2 Quick Reference Guide...
-
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ARC-1532-C2 Panel PC 1 x Power Adapter ... -
Page 7: System Specifications
1 x M.2 TypeB 3042/2242/2260/2280 Expansion Slots 1 x M.2 TypeA Mechanical Power Type AT/ATX Power Requirement DC +12~24V ACPI Single power ATX Support S0, S3, S4, S5 and ACPI 3.0 Compliant Power Connector 2.5mm Lockable DC Jack ARC-1532-C2 Quick Reference Guide... - Page 8 6. IEC 60068-2-64 Test:Fh 1. Wave form：Half Sine wave 2. Acceleration Rate：20g for operation mode Mechanical Shock 3. Duration Time：11ms Test 4. No. of Shock：+/- X,Y,Z axis 3 times 5. Test Axis: +/- X,Y,Z axis 6. Operation mode 8 ARC-1532-C2 Quick Reference Guide...
- Page 9 1 One corner , three edges, six faces 2 ISTA 2A, IEC-60068-2-32 Test:Ed Operating 0~+50 degree C Temperature Operating Humidity 0~90% Relative Humidity, Non-condensing Storage Temperature -20~60 degree Note: Specifications are subject to change without notice. ARC-1532-C2 Quick Reference Guide...
-
Page 10: System Overview
6 x Serial port connector DB-9 male connector (default: 1RS485,3RS232,1GPIO,1NA) VGA connector 4 x USB 3.0 connector LAN1/2 RJ-45 Ethernet 1/2 HDMI HDMI connector MIC IN Mic-in audio jack LINE OUT Line-out audio jack Power Switch Power on button 10 ARC-1532-C2 Quick Reference Guide... -
Page 11: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) ARC-1532-C2 Quick Reference Guide 11... -
Page 12: Hardware Configuration
ARC-1532-C2 2. Hardware Configuration For advanced information, please refer to: 1- EMX-SKLUP User’s Manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 ARC-1532-C2 Quick Reference Guide... -
Page 13: Arc-1532-C2 Connector Mapping
Quick Reference Guide 2.1 ARC-1532-C2 connector mapping 2.1.1 Serial port 1 connector (COM1) RS-232 Signal PIN PIN Signal RS-422/485 Signal PIN PIN Signal 422RX+ 485TX+ 422RX- 485TX- 2.1.2 Serial port 2/3/4/5/6 connector (COM2/3/4/5/6) Signal PIN PIN Signal ARC-1532-C2 Quick Reference Guide 13... -
Page 14: Vga Connector (Vga)
ARC-1532-C2 2.1.3 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK 14 ARC-1532-C2 Quick Reference Guide... -
Page 15: Installing Mounting Brackets (Arc-1532-C2)
Quick Reference Guide 2.2 Installing Mounting Brackets (ARC-1532-C2) Step 1. Position brackets on both sides, matching the holes on the system. Step 2. Insert and fasten screws on each side of the system to secure Mounting brackets. ARC-1532-C2 Quick Reference Guide 15... -
Page 16: Installing Vesa Mounting (Arc-1532-C2)
ARC-1532-C2 2.3 Installing VESA Mounting (ARC-1532-C2) Step 1. Insert and fasten screws on each side of the system to secure VESA Mounting. 16 ARC-1532-C2 Quick Reference Guide... -
Page 17: Emx-Sklup Overviews
Quick Reference Guide 2.4 EMX-SKLUP Overviews Note: If M.2 Type B 3042/2242/2260/2280 using PCI-e x2 device, it requires OEM BIOS ME setting; hence PCI-e slot is not workable. ARC-1532-C2 Quick Reference Guide 17... - Page 18 ARC-1532-C2 Note: SD card support list please refer to HW Storage Compatibility Test report. 18 ARC-1532-C2 Quick Reference Guide...
-
Page 19: Emx-Sklup Jumper And Connector List
RJ-45 Ethernet 1/2 PCIE1 PCIe connector LED1 LED indicator connector 1 4 x 1 header, pitch 2.00mm LED2 LED indicator connector 2 4 x 1 header, pitch 2.00mm Battery connector 2 x 1 wafer, pitch 1.25mm ARC-1532-C2 Quick Reference Guide 19... - Page 20 HDMI connector LOUT1 Line-out audio jack MIC1 Mic-in audio jack 5 x 1 header, pitch 2.54mm DMIC1 Mic-in connector SD card slot SIM1 SIM card slot CPU fan connector 4 x 1 wafer, pitch 2.54mm FAN1 20 ARC-1532-C2 Quick Reference Guide...
-
Page 21: Emx-Sklup Jumper And Connector Settings
2.6 EMX-SKLUP Jumper and Connector settings 2.6.1 Serial port 1/2/3/4/5/6 pin9 signal select (JRI1/JRI2/JRI3/JRI4/JRI5/JRI6) JRI1 JRI2 Ring* JRI3 JRI4 JRI5 JRI6 +12V * Default 2.6.2 LVDS Back Light power selection (JSBKL1) PWM Mode* DC Mode * Default ARC-1532-C2 Quick Reference Guide 21... -
Page 22: At/Atx Power Mode Select (Jsatx1)
ARC-1532-C2 2.6.3 AT/ATX Power Mode Select (JSATX1) ATX* * Default 2.6.4 Clear CMOS (JCOMS1) Protect* Clear CMOS * Default 22 ARC-1532-C2 Quick Reference Guide... -
Page 23: Lcd Inverter Connector (Jbkl1)
Quick Reference Guide 2.6.5 LCD Inverter connector (JBKL1) Signal Max current LVDS_BKLTCTL LVDS_BKLT_EN +12V 2.6.6 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_CLK_S SMB_DATA_S 20 +5V(Max current = 0.5A) ARC-1532-C2 Quick Reference Guide 23... -
Page 24: Serial Port 1/2 Connector (Com1/2)
ARC-1532-C2 2.6.7 Serial port 1/2 connector (COM1/2) COM1 COM2 Signal PIN PIN Signal (Max current = 0.5A) 2.6.8 Serial port 3/4/5/6 connector (COM3/4/5/6) Signal PIN PIN Signal (Max current = 0.5A) 24 ARC-1532-C2 Quick Reference Guide... -
Page 25: Serial Port 1/2 Rs485/422 Mode Connector (Jrs485_1/2)
2.6.9 Serial Port 1/2 RS485/422 Mode connector (JRS485_1/2) JRS485_1 JRS485_2 Signal PIN PIN Signal 485_422TX- 422RX- 485_422TX+ 422RX+ (Max current = 0.5A) 2.6.10 SATA Power connector 1/2 (SPWR1/2) SPWR1 SPWR2 Signal Max current +V5S_SATA +V12S_SATA ARC-1532-C2 Quick Reference Guide 25... -
Page 26: Power Connector (Pwr1)
ARC-1532-C2 2.6.11 Power connector (PWR1) Signal Signal +VIN +VIN 2.6.12 USB connector 3 (USB3) Signal Signal +V5A_USB78 +V5A_USB78 USB_DN7 USB_DN8 USB_DP7 USB_DP8 26 ARC-1532-C2 Quick Reference Guide... -
Page 27: Usb Connector 4 (Usb4)
Quick Reference Guide 2.6.13 USB connector 4 (USB4) Signal Signal +V5A_USB78 +V5A_USB78 USB_DN9 USB_DN10 USB_DP9 USB_DP10 2.6.14 Battery connector (BT1) Signal ARC-1532-C2 Quick Reference Guide 27... -
Page 28: Lvds Connector (Lvds1)
LVDS_DATA0_N 12 11 LVDS_DATA1_N LVDS_DATA2_P 16 15 LVDS_DATA3_P LVDS_DATA2_N 18 17 LVDS_DATA3_N LVDS_DATA4_P 22 21 LVDS_DATA5_P LVDS_DATA4_N 24 23 LVDS_DATA5_N LVDS_DATA6_P 28 27 LVDS_DATA7_P LVDS_DATA6_N 30 29 LVDS_DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_ CLK1_N LVDS_ CLK2_N +12V +12V 28 ARC-1532-C2 Quick Reference Guide... -
Page 29: Audio Connector (Faud1)
Quick Reference Guide 2.6.16 Audio connector (FAUD1) Signal PIN PIN Signal LINE2_JD LINE2_LIN SENSE_B MIC2_JD LINE2_RIN AUD_FRONT_DET MIC2_RIN MIC2_LIN 2.6.17 EC Debug (JEC_SPI) Signal PIN PIN Signal +3VSPI_EC EC_FSCE# EC_FSCK EC_FMISO EC_FMOSI EC_HOLD# EC_SMCLK EC_SMDAT ARC-1532-C2 Quick Reference Guide 29... -
Page 30: Spi Connector (Jspi1)
ARC-1532-C2 2.6.18 SPI connector (JSPI1) Signal PIN PIN Signal HOLD# SPI_SI SPI_SO SPI_CLK SPI0_CS0# +3.3A_SPI 2.6.19 Sony/Philips Digital Interface (SPDIF1) Signal SPDIF_OUT 30 ARC-1532-C2 Quick Reference Guide... -
Page 31: Miscellaneous Setting Connector 1 (Fpt1)
1. Pin2 with GND: Control LVDS Backlight by use Variable Resistor. 2. BLK_UP with GND/BLK_DN with GND: Step control LVDS Backlight by use button and BIOS must to be set “BR Button”. (Please refer to page.61) ARC-1532-C2 Quick Reference Guide 31... -
Page 32: Led Indicator Connector 1 (Led1)
ARC-1532-C2 2.6.22 LED indicator connector 1 (LED1) Signal LAN1_1000#_LED LAN1_100#_LED LAN1_ACT_N LAN1_ACT_P 2.6.23 LED indicator connector 2 (LED2) Signal LAN2_1000#_LED LAN2_100#_LED LAN2_ACT_N LAN2_ACT_P 32 ARC-1532-C2 Quick Reference Guide... -
Page 33: Speaker Connector (Spk1)
Quick Reference Guide 2.6.24 Speaker connector (SPK1) Signal SPK_R- SPK_R+ SPK_L- SPK_L+ 2.6.25 Mic-in connector (DMIC1) Signal DMIC_CLK DMIC_DATA +3.3V ARC-1532-C2 Quick Reference Guide 33... -
Page 34: I2C Connector (I2C1)
I2C0_DATA 2.6.27 eDP_Panel connector (EDP1) Signal PIN PIN Signal EDP_PanelTXN0 EDP_PanelTXN3 EDP_PanelTXP0 EDP_PanelTXP3 EDP_PanelTXN1 EDP_PanelTXP1 11 12 EDP_PanelAUXN 14 EDP_PanelAUXP EDP_PanelTXN2 15 Note: EDP_PanelTXP2 17 EDP_Panel_HPD Default 3.3V. +V3512_EDP +V3512_EDP This a BOM optional part. 34 ARC-1532-C2 Quick Reference Guide... -
Page 35: Lpc Connector (Jlpc)
Quick Reference Guide 2.6.28 LPC connector (JLPC) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 PCH_PLTRST# LPC_AD2 LPC_FRAME# LPC_AD3 LPC_CLK LPC_SERIRQ 2.6.29 CPU fan connector (FAN1) Signal +12V CPU_FANIN FAN_PWM0 ARC-1532-C2 Quick Reference Guide 35... -
Page 36: Hdmi1/Dp1/Dp2/Lvds1
Note: HDMI1 and DP1 share one circuit for display output depending on which monitor input is engaged. (Only one display port can be output, HDMI1 or DP1) Triple display: HDMI & DP++ & LVDS DP & DP++ & LVDS 36 ARC-1532-C2 Quick Reference Guide... -
Page 37: Bios Setup
Quick Reference Guide 3.BIOS Setup ARC-1532-C2 Quick Reference Guide 37... -
Page 38: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 38 ARC-1532-C2 Quick Reference Guide... -
Page 39: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. ARC-1532-C2 Quick Reference Guide 39... -
Page 40: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 40 ARC-1532-C2 Quick Reference Guide... -
Page 41: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. ARC-1532-C2 Quick Reference Guide 41... -
Page 42: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 42 ARC-1532-C2 Quick Reference Guide... -
Page 43: Trusted Computing
Item Options Description Enables or Disables BIOS support for security Disable Security Device Support devices. O.S. will not show Security Device. TCG EFI Enable[Default] protocol and INT1A interface will not be available. 3.6.2.2 APCI Settings ARC-1532-C2 Quick Reference Guide 43... -
Page 44: Amt Configuration
Last state Disabled[Default], 30 sec 40 sec 50 sec Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min Disabled Enabled/Disabled USB Standby Power USB Standby Power Setting Enabled[Default] during S3/S4/S5. 3.6.2.3 AMT Configuration 44 ARC-1532-C2 Quick Reference Guide... -
Page 45: Pch-Fw Configuration
This option just controls the BIOS extension execution. Enabled[Default], If enabled, this requires additional firmware in the SPI device. Disabled[Default] Un-Configure ME OEMFlag Bit 15: Un-Configure ME without password. Enabled, 3.6.2.4 PCH-FW Configuration 3.6.2.4.1 Firmware Update Configuration ARC-1532-C2 Quick Reference Guide 45... -
Page 46: It8528 Super Io Configuration
Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). 46 ARC-1532-C2 Quick Reference Guide... -
Page 47: Serial Port 1 Configuration
3.6.2.5.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.5.2 Serial Port 2 Configuration ARC-1532-C2 Quick Reference Guide 47... -
Page 48: Serial Port 3 Configuration
UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.5.3 Serial Port 3 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.5.4 Serial Port 4 Configuration 48 ARC-1532-C2 Quick Reference Guide... -
Page 49: Serial Port 5 Configuration
Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.5.5 Serial Port 5 Configuration Item Option Description Enabled[Default], Enable or Disable Serial Port Serial Port Disabled (COM). 3.6.2.5.6 Serial Port 6 Configuration ARC-1532-C2 Quick Reference Guide 49... -
Page 50: H/W Monitor
ARC-1532-C2 Item Option Description Enabled[Default], Enable or Disable Serial Port Serial Port Disabled (COM). 3.6.2.6 H/W Monitor Item Options Description Disabled[Default], Smart Fan Function Enable or Disable Smart Fan. Enabled 3.6.2.6.1 Smart Fan Mode Configuration 50 ARC-1532-C2 Quick Reference Guide... -
Page 51: S5 Rtc Wake Settings
Wake up hour 0-23 3pm. Select 0-23 For example enter 3 for 3am and 15 for Wake up minute 0-59 3pm. Select 0-23 For example enter 3 for 3am and 15 for Wake up second 0-59 3pm. ARC-1532-C2 Quick Reference Guide 51... -
Page 52: Serial Port Console Redirection
Select FixedTime, system will wake on the Wake system from S5 Fixed Time hr::min::sec specified. Select DynamicTime, Dynamic Time[Default] System will wake on the current time + Increase minutes(s). Wake up minute increase 1-5. 3.6.2.8 Serial Port Console Redirection 52 ARC-1532-C2 Quick Reference Guide... -
Page 53: Com1
They can be used as and additional data bit. Stop bits indicate the end of a serial data packet. 1[Default] Stop Bits (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication ARC-1532-C2 Quick Reference Guide 53... - Page 54 Redirection After BIOS Always Enable[Default] to legacy OS. When Always Enabled is POST Boot Loader selected, then Legacy Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. 54 ARC-1532-C2 Quick Reference Guide...
-
Page 55: Cpu Configuration
Quick Reference Guide 3.6.2.9 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. Item Options Description All[Default] Number of cores to enable in each processor Active Processor Cores package. ARC-1532-C2 Quick Reference Guide 55... -
Page 56: Intel Txt Information
Enabled[Default] Virtualization Technology. Disabled, Turbo Mode Turbo Mode. Enabled[Default] Disabled, CPU C states Enable or disable CPU states. Enabled[Default] C0/C1 Package C State limit Package C State limit. Auto[Default] 3.6.2.10 Intel TXT Information 56 ARC-1532-C2 Quick Reference Guide... -
Page 57: Sata Configuration
SATA Controller Speed Gen2 controller can support. Gen3 Disabled, Port1/2 Enable/Disable SATA Port. Enabled[Default] Hard Disk Drive Identify the SATA port is connected to Solid SATA Device Type Solid State Drive[Default] State Drive or Hard Disk Drive. ARC-1532-C2 Quick Reference Guide 57... -
Page 58: Network Stack Configuration
IPV6 PXE boot option will not be created. Wait time to press ESC key to abort the PXE PXE boot wait time boot. Number of times presence of media will be Media detect count checked. 58 ARC-1532-C2 Quick Reference Guide... -
Page 59: Csm Configuration
Do not launch Controls the execution of UEFI and Legacy Video UEFI Video OpROM. Legacy[Default] Do not launch Determines OpROM execution policy for Other PCI devices UEFI devices other than Network, Storage, or Legacy[Default] Video. ARC-1532-C2 Quick Reference Guide 59... -
Page 60: Sdio Configuration
SDIO Access Mode PIO mode. DMA Option: Access SD device SDMA in DMA mode. PIO Option: Access SD device in PIO mode. 3.6.2.15 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. 60 ARC-1532-C2 Quick Reference Guide... - Page 61 Auto[Default] Floppy enumerates devices according to their media format. Optical drives are emulated as ‘CDROM’, Mass Storage Devices Forced FDD Hard Disk drives with no media will be emulated according CD-ROM to a drive type. ARC-1532-C2 Quick Reference Guide 61...
-
Page 62: Chipset
ARC-1532-C2 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled 62 ARC-1532-C2 Quick Reference Guide... -
Page 63: Graphics Configuration
1366x768 24/1 1920x1080 24/2 1680x1050 24/2 BIOS[Default] LVDS Brightness Control Method. BR Button Brightness Control Method 1.BIOS 2.Brightness Button 3.Variable Resistor 4.OS Driver. OS driver LVDS Back Light PWM Select LVDS back light PWM duty. 100%[Default] ARC-1532-C2 Quick Reference Guide 63... -
Page 64: Memory Configuration
Select LVDS back light PWM Frequency Frequency. 3.6.3.1.2 Memory Configuration Item Option Description Maximum Value of TOLUD. Dynamic Dynamic[Default] assignment would adjust TOLUD Max TOLUD /1GB/1.25GB/1.5GB/1.75GB automatically based on largest MMIO length /2GB/2.25GB/2.5GB/2.75GB of installed graphic controller. 64 ARC-1532-C2 Quick Reference Guide... -
Page 65: Pch-Io Configuration
Quick Reference Guide 3.6.3.2 PCH-IO Configuration Item Option Description Disabled PCH LAN Controller Enable or disable onboard NIC. Enabled[Default] 3.6.3.2.1 PCI Express Configuration ARC-1532-C2 Quick Reference Guide 65... -
Page 66: Pci Express Root Port 5 (I210/211)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto, Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2, Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 66 ARC-1532-C2 Quick Reference Guide... -
Page 67: Pci Express Root Port 6 (Pcie Slot)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto, Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 ARC-1532-C2 Quick Reference Guide 67... -
Page 68: Pci Express Root Port 7 (M.2 Keyb Share Sata)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto, Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 68 ARC-1532-C2 Quick Reference Guide... -
Page 69: Pci Express Root Port 8 (M.2 Keyb)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto, Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 ARC-1532-C2 Quick Reference Guide 69... -
Page 70: Pci Express Root Port 9 (M.2 Keya)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto, Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 70 ARC-1532-C2 Quick Reference Guide... -
Page 71: Usb Configuration
Option to disable Compliance Mode. Default FALSE[Default], XHCI Disable Compliance Mode is FALSE to not disable Compliance Mode. TRUE Set TRUE to disable Compliance Mode. 3.6.3.2.3 HD Audio Configuration ARC-1532-C2 Quick Reference Guide 71... -
Page 72: Scs Configuration
3.6.3.2.4 SCS Configuration Item Option Description Disabled[Default] eMMC 5.0 Controller Enable or Disable SCS eMMC 5.0 Controller. Enabled Disabled SDCard 3.0 Controller Enable or Disable SCS SDHC 3.0 Controller. Enabled[Default] 72 ARC-1532-C2 Quick Reference Guide... -
Page 73: Security
Quick Reference Guide 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password ARC-1532-C2 Quick Reference Guide 73... -
Page 74: Secure Boot Menu
User mode with enrolled Platform Key(PK) Enabled 2.CSM function is disabled. Secure Boot mode selector. ‘Custom’ Mode Standard Secure Boot Mode enables users to change Image Execution policy Custom[Default] and manage Secure Boot Keys. 74 ARC-1532-C2 Quick Reference Guide... -
Page 75: Key Management
Quick Reference Guide 3.6.4.1.1 Key Management Item Option Description Disabled[Default] Install factory default Secure Boot keys when Provision Factory Default keys Enabled System is in Setup Mode. 3.6.5 Boot ARC-1532-C2 Quick Reference Guide 75... -
Page 76: Save And Exit
Reset system setup without saving any changes. 3.6.6.3 Restore Defaults Restore/Load Default values for all the setup options. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. 76 ARC-1532-C2 Quick Reference Guide...
