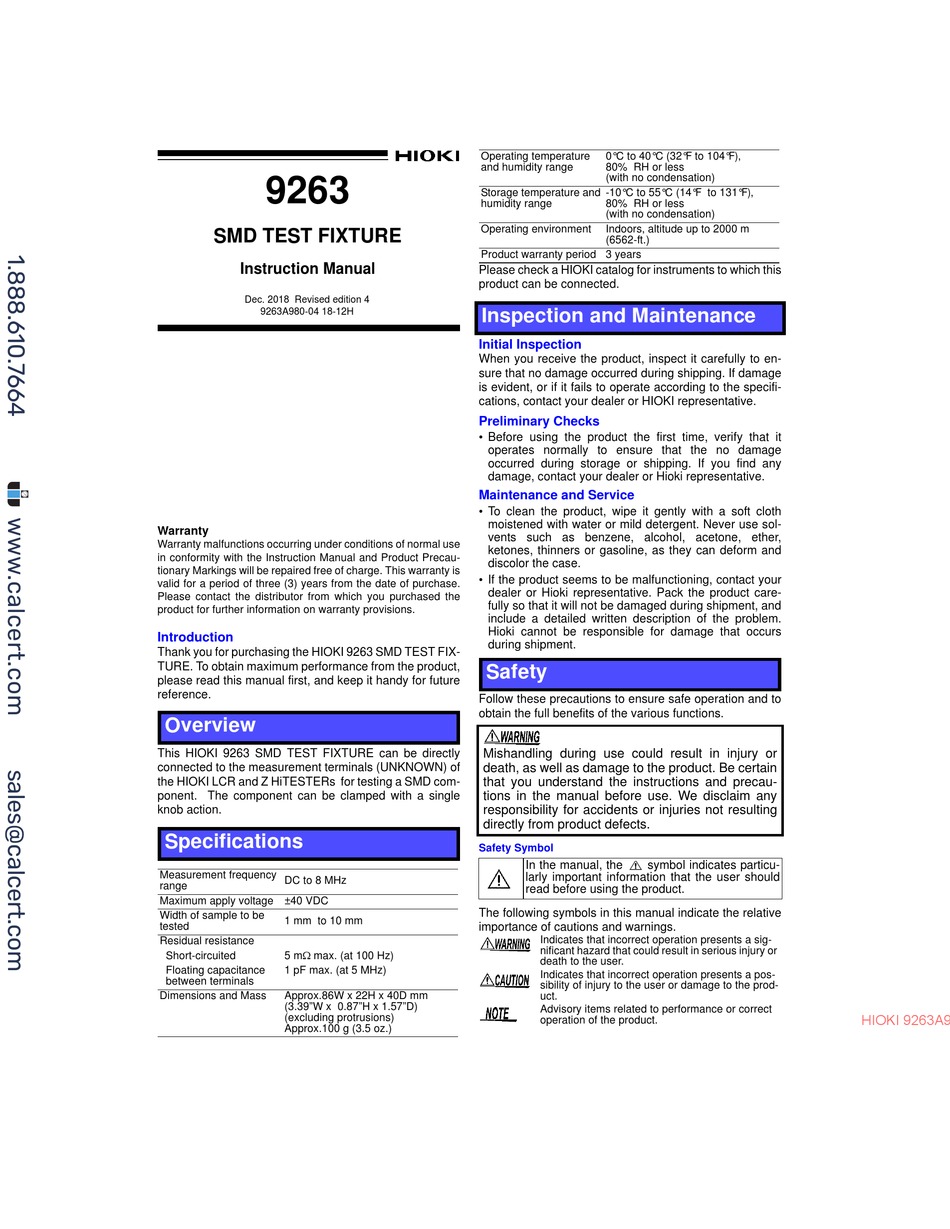

9263
SMD TEST FIXTURE
Instruction Manual
Dec. 2018 Revised edition 4
9263A980-04 18-12H
Warranty
Warranty malfunctions occurring under conditions of normal use
in conformity with the Instruction Manual and Product Precau-
tionary Markings will be repaired free of charge. This warranty is
valid for a period of three (3) years from the date of purchase.
Please contact the distributor from which you purchased the
product for further information on warranty provisions.
Introduction
Thank you for purchasing the HIOKI 9263 SMD TEST FIX-
TURE. To obtain maximum performance from the product,
please read this manual first, and keep it handy for future
reference.
Overview
This HIOKI 9263 SMD TEST FIXTURE can be directly
connected to the measurement terminals (UNKNOWN) of
the HIOKI LCR and Z HiTESTERs for testing a SMD com-
ponent. The component can be clamped with a single
knob action.
Specifications
Measurement frequency
DC to 8 MHz
range
Maximum apply voltage ±40 VDC
Width of sample to be
1 mm to 10 mm
tested
Residual resistance
Short-circuited 5 mmax. (at 100 Hz)
Floating capacitance 1 pF max. (at 5 MHz)
between terminals
Dimensions and Mass Approx.86W x 22H x 40D mm
(3.39"W x 0.87"H x 1.57"D)
(excluding protrusions)
Approx.100 g (3.5 oz.)
Operating temperature 0°C to 40°C (32°F to 104°F),
and humidity range 80% RH or less
(with no condensation)
Storage temperature and -10°C to 55°C (14°F to 131°F),
humidity range 80% RH or less
(with no condensation)
Operating environment Indoors, altitude up to 2000 m
(6562-ft.)
Product warranty period 3 years
Please check a HIOKI catalog for instruments to which this
product can be connected.
Inspection and Maintenance
Initial Inspection
When you receive the product, inspect it carefully to en-
sure that no damage occurred during shipping. If damage
is evident, or if it fails to operate according to the specifi-
cations, contact your dealer or HIOKI representative.
Preliminary Checks
• Before using the product the first time, verify that it
operates normally to ensure that the no damage
occurred during storage or shipping. If you find any
damage, contact your dealer or Hioki representative.
Maintenance and Service
• To clean the product, wipe it gently with a soft cloth
moistened with water or mild detergent. Never use sol-
vents such as benzene, alcohol, acetone, ether,
ketones, thinners or gasoline, as they can deform and
discolor the case.
• If the product seems to be malfunctioning, contact your
dealer or Hioki representative. Pack the product care-
fully so that it will not be damaged during shipment, and
include a detailed written description of the problem.
Hioki cannot be responsible for damage that occurs
during shipment.
Safety
Follow these precautions to ensure safe operation and to
obtain the full benefits of the various functions.
Mishandling during use could result in injury or
death, as well as damage to the product. Be certain
that you understand the instructions and precau-
tions in the manual before use. We disclaim any
responsibility for accidents or injuries not resulting
directly from product defects.
Safety Symbol
In the manual, the symbol indicates particu-
larly important information that the user should
read before using the product.
The following symbols in this manual indicate the relative
importance of cautions and warnings.
Indicates that incorrect operation presents a sig-
nificant hazard that could result in serious injury or
death to the user.
Indicates that incorrect operation presents a pos-
sibility of injury to the user or damage to the prod-
uct.
Advisory items related to performance or correct
operation of the product.
