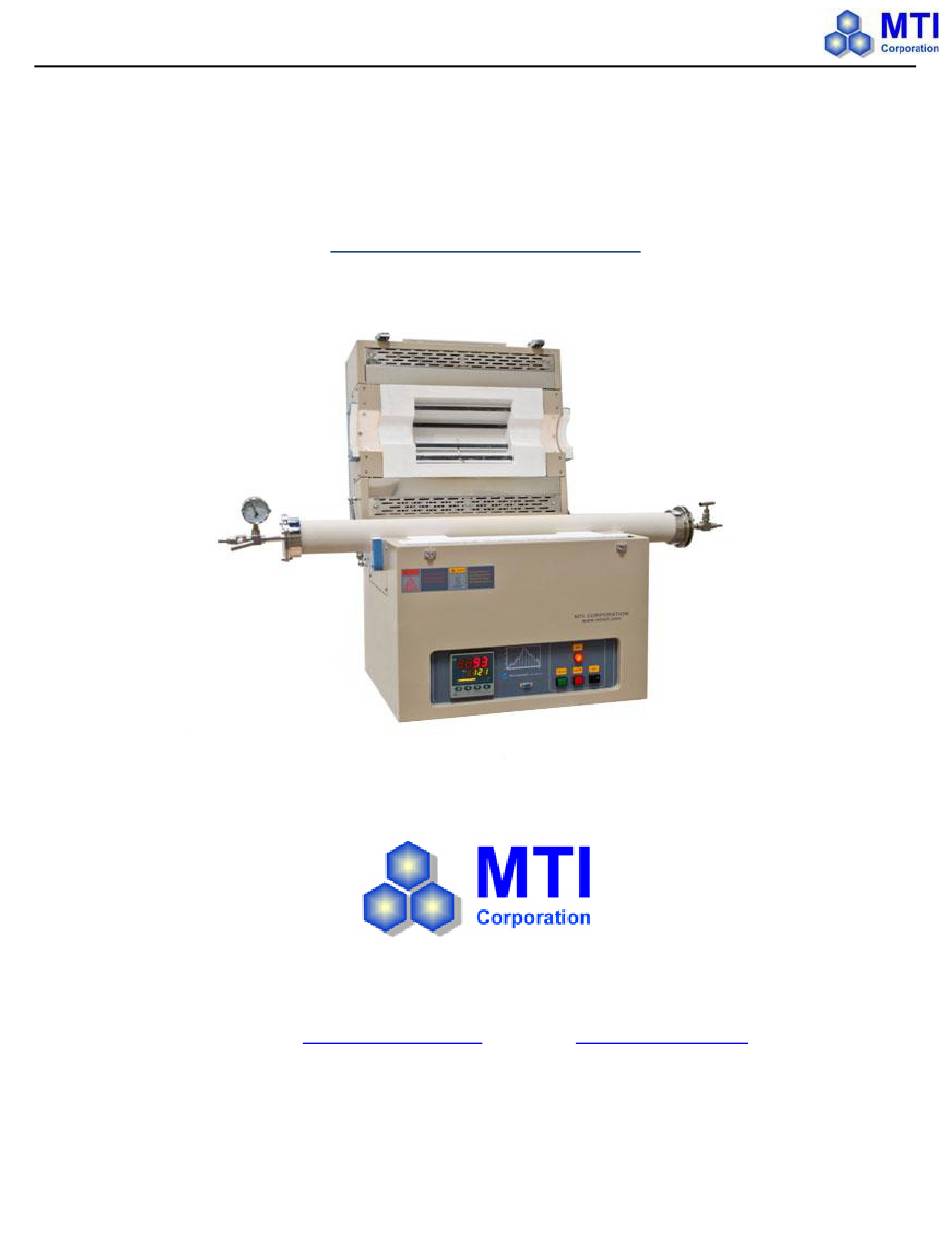

GSL-1500X-OTF
GSL-1500X-OTF
1500°C TUBE FURNACE
With Vacuum Flanges & Valves: Optional 2", 3" & 4" Mullite Tubes
OPERATION MANUAL
860 South 19
Street, Richmond, CA 94804, USA
th
TEL: (510) 525 – 3070 FAX: (510) 525 – 4705
Website:
www.mtixtl.com
Email:
info@mtixtl.com
1
MTI Corporation
www.mtixtl.com
|
Advertisement
Table of Contents
Related Manuals for MTI GSL-1500X-OTF
Summary of Contents for MTI GSL-1500X-OTF
- Page 1 GSL-1500X-OTF GSL-1500X-OTF 1500°C TUBE FURNACE With Vacuum Flanges & Valves: Optional 2”, 3” & 4” Mullite Tubes OPERATION MANUAL 860 South 19 Street, Richmond, CA 94804, USA TEL: (510) 525 – 3070 FAX: (510) 525 – 4705 Website: www.mtixtl.com Email: info@mtixtl.com...
-
Page 2: Table Of Contents
GSL-1500X-OTF TABLE OF CONTENTS IMPORTANT NOTES ................................3 GENERAL WARNINGS ............................... 3 INTRODUCTION ................................. 4 SPECIFICATIONS ................................5 STRUCTURE ..................................5 SYSTEM INSTALLATION ..............................7 OPERATING ENVIRONMENT: 7 MULLITE TUBES: 7 SETTING UP THE TUBE & VACUUM FLANGES: 8 POWER CONNECTION: 9 SYSTEM OPERATION PROCEDURES .......................... -
Page 3: Important Notes
The prospective user is responsible for carefully reading and understanding the contents of this manual prior to operating the equipment. MTI reserves the right to update or upgrade the product without informing customers of the data change(s) in this manual. Please frequently visit www.mtixtl.com... -
Page 4: Introduction
CE certified GSL-1500X-OTF series furnace provides a split-able furnace body design capable of achieving temperatures up to 1500 ºC with the use of SiC heating elements. The furnace can be equipped with 2”, 3” and 4” O.D. high quality mullite tubes and a pair of smart stainless steel vacuum sealing flanges. -
Page 5: Structure
GSL-1500X-OTF STRUCTURE Controller: Use to set up the heating sequence (heating procedures) and modify the parameters. PC port: connects to the computer and the furnace can be controlled by computer. (Note: A temperature control system - EQ-MTS02 must be purchased to enable the PC control function.) - Page 6 GSL-1500X-OTF Attention: It is normal for the refractory lining to incur minor cracks while heating up to 1000C or above because of the material's thermal properties. However, this will not significantly affect the furnace operations and the user can continue to operate the furnace without problems.
-
Page 7: System Installation
GSL-1500X-OTF SYSTEM INSTALLATION OPERATING ENVIRONMENT 1. Place the furnace on a dry, hard and flat surface 2. The furnace is for indoor use with nice ventilation and avoided direct sunlight 3. Operating temperature: 50°C ~ 350°C 4. Relative humidity (no condensing): 10%～85% 5. -
Page 8: Setting Up The Tube & Vacuum Flanges
1680°C without resorting to the use of alumina tubes that are highly susceptible to thermal shock. Though the mullite tubes (NOT covered by MTI warranty) are capable of being subjected to thermal shocks, please do not expose the tubes to rapid and sudden changes in temperature where the gradient of change is higher than 200°C. Doing so will not only cause possible tube deformation or cracking but will also gradually wear out the heating elements. -
Page 9: Power Connection
Power Connection The GSL-1500X-OTF series furnaces use single phase AC 220V 50/60Hz. The user is responsible for making sure that the power source in the lab is sufficient and can meet this power requirement. A licensed electrician should be consulted to perform the power connection. -
Page 10: Temperature Controller Instructions
GSL-1500X-OTF Gas flow system Connect the gas tank to any one side of flange with a venting pipe. Control the air flow by adjusting the value on the gas tank. If you want to precisely measure or adjust the gas flow rate please attach an extra gas flow meter to any one side of flange. Please see the details at http://www.mtixtl.com/digitalvacuumgaugesandflowmeters.aspx... -
Page 11: Temperature Segment Setting Example
GSL-1500X-OTF Displaying switch a. In the “normal state” or “program running state”, press “SET” key (Button 2) for 1 second to switch to “executing program segment” (Set executing segment or display the ongoing temperature segment). b. Press “SET” key (Button 2) again for 1 second to switch to “running time state” (Display the total running time PV xxxx min. - Page 12 GSL-1500X-OTF C by using Keystrokes :“←”, “↑” or “↓” ; Set initial temperature to 0 Press “Set” to display “t01” on PV window; Set heat-up time (Usually beyond 30 minutes for this segment in case of temperature overshooting) from initial temperature to target temperature by using Keystrokes :“←”, “↑”...
-
Page 13: Illustration Of Temperature Segment Setting
GSL-1500X-OTF Attention: When finish all the segments you need, please end the last segment with -121 Illustration of Temperature Segment Setting Setting Example: Temperature Control Program with 6-segments According to figure I above, all segments was recorded in the follow ing:... -
Page 14: Running The Program
GSL-1500X-OTF Running the program When all the data is input into the temperature program, press both “Set” and “←” together, and “STOP” will show on SV window again as indication of entering “Normal State”. Then press “↓” and hold for two seconds to display “Run” on SV window;... -
Page 15: Functions Of Main Parameters
GSL-1500X-OTF Function of Main Parameters Maintain parameter M5: Like integral time of PID calibration, this parameter is mainly in charge of the integral work during the adjustment process. For instance, the smaller the M5 is set, the stronger the system integral effect is, vice versa. When M5=0, the system will cancel integral and intelligent adjustment, leave only proportion and differential (PD) function. -
Page 16: Parameter Setting
GSL-1500X-OTF Control type CtrL: (Do follow the default setting, or the system may be unable to work) When CtrL=2, startup auto-tune function, after that, system will go to 3. When CtrL=3, adopts advanced AI adjustment. After auto-tune, the system goes to this setting mode. Note that in this mode, you cannot startup auto-tune function from the panel by holding button, for a protection of repeating auto-tune. -
Page 17: Auto-Tune
Auto-tune In order to get precise temperature control, customer should pay more attention to the parameters of M5, P and t. Actually, MTI’s engineers have already made a strict high temperature pre-heating test (rate: 5℃/min) and fine-tuned on these three parameters according to each furnace’... -
Page 18: Maintenance And Cautions
GSL-1500X-OTF Controller panel SV show Thermocouples broken Replace Thermocouples ( S type ) “OraL” Controller panel SV show Cool furnace down, and find reason why Furnace “HiaL” temperature gets over temperature>1500℃, Power and heating element are fine, Controller or related circuit may Check if controller has problem. -
Page 19: Knowledge On Ac Power Distribution
GSL-1500X-OTF h) MTI Corporation provides one year limited warranty from date when we shipped out the product. If you find any defective part, please feel free to contact us for replacement during warranty period. However, MTI Corp is not responsible for an y damage or consequence damage caused by misuse. After warranty, MTI will continue to provide technical support and spare parts at a reasonable cost. - Page 20 GSL-1500X-OTF Typical Three Phases AC Power in US MTI Corporation www.mtixtl.com...
- Page 21 2. Please ask electricians to check whether or not the 3 phase power supply is balanced and re-distribute the load. Again, the above information is just for basic knowledge only; please contract a licensed electrician to do the connection!!! Please call or email MTI, assistance will be provided within 48 hours. MTI Corporation www.mtixtl.com...
