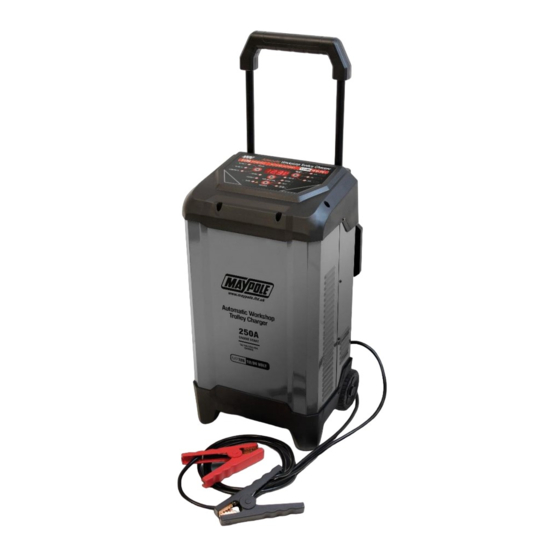

Automatic Workshop Trolley Chargers
Instruction Manual
MP726
MP727
5/15/30/40A Charge. 250A Engine Start
20/30/40/60A Charge. 350A Engine Start
Fully automatic processor controlled. Suitable for all 12 or 24 Volt batteries including lead-
acid, deep cycle, AGM and Gel.
Please read and follow this operating manual and all safety instructions
carefully when using this device to charge batteries or to start a vehicle.
Keep these instructions for future reference. When passing the device on to
others be sure to also include all documentation. The instruction leaflet is also
available on our website: www.maypole.ltd.uk
pg. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP726 and is the answer not in the manual?

Questions and answers

Related Manuals for MayPole MP726

Summary of Contents for MayPole MP726

  • Page 1 Keep these instructions for future reference. When passing the device on to others be sure to also include all documentation. The instruction leaflet is also available on our website: www.maypole.ltd.uk pg. 1...

  • Page 2: Risk Of Fire Or Explosion

    RISK OF FIRE OR EXPLOSION Explosive gases may escape during charging. This is normal, but please follow the following guidelines: Do not charge near flames or sparks – do not smoke in the area. Ensure adequate ventilation during charging. Keep the charging area completely clear of combustible materials. Do not leave charging batteries unattended for long periods or overnight.

  • Page 3: Product Overview

    This appliance is not for use by a person (including children) with reduced physical, sensory or medical capabilities or lack of experience or knowledge. NOTE: A marine battery installed in a boat must be removed and charged on shore. To charge it on board requires equipment specially designed for marine use.
  • Page 4 DESCRIPTION OF DISPLAY INFORMATION When connected to a battery press the “DISPLAY” button (2) until the following LED is illuminated: Voltage LED illuminated When no charging function is selected, the display will show the battery’s resting voltage. Battery % LED illuminated During the charging cycle, the display will show the estimated charge percentage of the battery.

  • Page 5: Connection To Mains Supply

    If an extension reel is used it should be fully unwound before connection. The cable conductor core section is important and should be at least 1.5mm² for MP726 and 2.5mm² for MP727, use of long extension cables will also affect performance and the shortest suitable length should be selected.

  • Page 6: Preparation Of The Battery

    PREPARATION OF THE BATTERY Refer to the vehicle manufacturer’s handbook for battery maintenance and charging guidelines. If the battery must be removed from the vehicle before charging, ensure all other electrical loads in the vehicle are switched off. Always disconnect the earthed connector from the battery first.

  • Page 7: Overheat Protection

    Note – when charging the “Battery Type button” (7) will not work WHEN CHARGING IS COMPLETE To disconnect the charger, first switch off the mains supply, unplug the charger from the mains socket and then disconnect the clips in the following order: Remove the negative (BLACK lead) first.

  • Page 8: Repair Function

    7). Once the engine has started, unplug the mains plug from the 230 V mains socket. 8). Disconnect the black (-) terminal connection cable with clamp from the negative battery terminal. 9). Disconnect the red (+) terminal connection cable with clamp from the positive battery terminal.

  • Page 9: Trouble Shooting & Fault Codes

    TROUBLE SHOOTING & FAULT CODES Check that the mains supply is connected and the display is illuminated. Check that the clips are correctly connected to the battery and making a good contact. The battery must be in good condition and capable of accepting a charge. Error/Problem Possible cause Correction...

  • Page 10: Technical Specifications

    EN 61000-6-1:2007 EN 61000-6-3:2007+A1:2011 Low Voltage Directive (2014/35/EU) EN 60335-2-29:2004 + A2: 2010 EN 60335-1:2012 + A11:2014 + A13:2017 EN 62233:2008 2012/19/EU WEE Directive 2011/65/EU + 2015/863/EU RoHS Directive Technical Manager Maypole Ltd August 2019 Email: sales@maypoleltd.co.uk Web: www.maypole.ltd.uk pg. 10...
