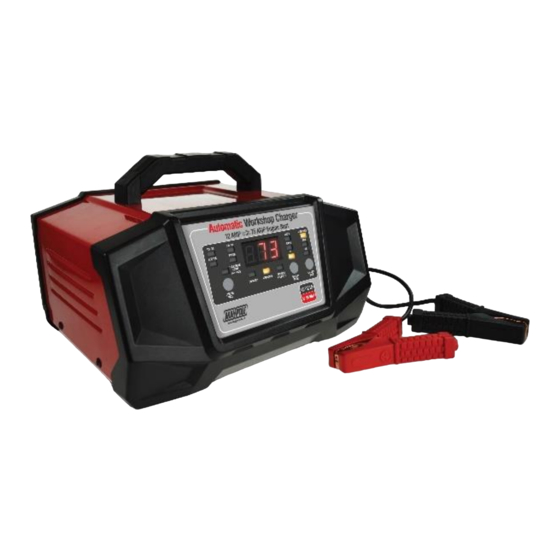

12A and 20A Automatic Workshop Chargers
MP7212
3 Amp
75 Amp
12 Amp
6 Amp
Fully automatic processor controlled. Suitable for all 12 or 24 Volt lead-acid
Please read and follow this operating manual and all safety instructions for the batteries to be
charged and the vehicle before using this device.
Keep these instructions for future reference. When passing the device on to others be sure to also include
all documentation. The instruction leaflet is also available on our website:
www.maypole.ltd.uk
DDDDDDDDDDD
ww
MAMMMMMMMMM
w.maypole.ltd.uk
pole.ltd.uk
Slow Charge
Engine Start12V
Fast Charge 12V
Fast Charge 24V
batteries including deep cycle, AGM and Gel.
INSTRUCTION MANUA L
1
MP7220
3 Amp
Slow Charge
150 Amp Engine Start 12V
20 Amp
Fast Charge 12V
12 Amp
Fast Charge 24V
www.maypole.ltd.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MayPole MP7212
Summary of Contents for MayPole MP7212
- Page 1 12A and 20A Automatic Workshop Chargers MP7212 MP7220 3 Amp Slow Charge 3 Amp Slow Charge 75 Amp Engine Start12V 150 Amp Engine Start 12V 12 Amp Fast Charge 12V 20 Amp Fast Charge 12V 6 Amp Fast Charge 24V...
-
Page 2: Risk Of Fire Or Explosion
Exterior force, damage to the device and / or damage to parts of the device caused by mechanical impact or overload. • Consequential damages caused by non-intended and / or improper use, and / or defective batteries. • The unauthorised opening of the device will void the guarantee. www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk pole.ltd.uk... -
Page 3: Product Overview
STANDARD / AGM / GEL LEDs - Display the selected battery type (charging mode only). V / A / % LEDs - display the selected charging parameter (in charging mode only) switched with the DISPLAY MODE button (8). www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk... - Page 4 If the wrong battery voltage is set or the battery is defective, it will not continue to charge and the “REVERSE POLARITY” LED (7) will light up (also see “Troubleshooting”). www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk...
- Page 5 5. Once the engine has started, unplug the mains plug from the 230 V mains socket. 6. Disconnect the black (-) terminal connection cable with clamp from the negative battery terminal. 7. Disconnect the red (+) terminal connection cable with clamp from the positive battery terminal. www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk...
- Page 6 Disposal: Do not throw electrical appliances in with domestic waste! In accordance with European Directive 2012/19/ EC for waste electrical and electronic equipment (WEEE) must be collected separately and taken to a recycling point for disposal. www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk...
- Page 7 We declare that this product conforms to the following standards EN60335-1:2012+A11:2014+A13:2017 EN60335-2-29:2004+A2:2010, EN62233:2008. EN55014-1:2017, EN55014-2:2015, EN61000-3-2:2014, EN61000-3-3:2013, and the following Directives 73/23 CEE, 93/68 CEE, 2004/108/EC, 2002/95/EC (ROHS) Technical Manager Maypole Ltd November 2018 Email: sales@maypoleltd.co.uk Web: www.maypole.ltd.uk www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk...
