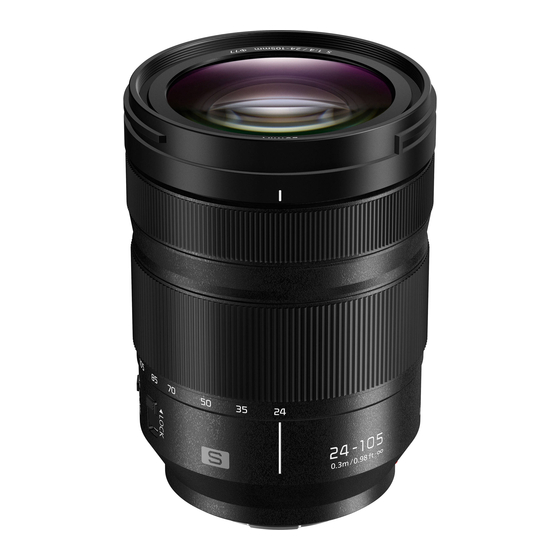

S-R24105
Service Training Manual
(Edition of lens cleaning)
Ver.1.03
Internal use only
ⓒ Panasonic Corporation 2019 Unauthorized copying and distribution is a violation of law.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumix S-R24105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic Lumix S-R24105

Summary of Contents for Panasonic Lumix S-R24105

  • Page 1 S-R24105 Service Training Manual (Edition of lens cleaning) Ver.1.03 Internal use only ⓒ Panasonic Corporation 2019 Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page 1. Service Navigation ･･･ 1.1. Introduction ･･･ 1.2. Overview of cleaning components ･･･ 1.3. Cleaning Service Flowchart ･･･ 2. Exploded View ･･･ 3. Service Parts List ･･･ 4. Service Fixture & Tools ･･･ 5. Disassembly Instructions ･･･...

  • Page 3: Service Navigation

    1. Service Navigation 1.1. Introduction This manual describes the procedures for conducting the lens cleaning of full-frame interchangeable lens S-R24105. This procedures explain to eliminate a debris and dust which invaded into the inside the lens during use. For lens cleaning it requires to overhaul the lens unit, thus the lens unit disassembles and assembles its components.

  • Page 4: Cleaning Service Flowchart

    1.3. Cleaning Service Flowchart Start TELE end Resolution Check Damaged It needs to be replaced by new lens WIDE end Resolution Check Disassembly -> Cleaning -> Assembly Setting to Resolution Check -Check the brightness and settings of camera body and test chart -Begin again after TELE end -Begin again after...

  • Page 5: Exploded View

    2. Exploded view This diagram shows exploded view of lens components for lens cleaning. Only the components of screw and pin applied the parts number are supplied from spare parts. Other was not eligible. B209 3-4th Lens 5th Lens B206 Frame unit Frame unit 2nd Lens...

  • Page 6: Service Fixture & Tools

    Purchased locally Plastic or bamboo (Do not use metal) Torque Driver RFKZ0542 or RFKZ0456 Rp-Chart M-size SUKZ000035 Master Body Purchased locally DC-S1R (Panasonic) Tripod Purchased locally Locking glue Purchased locally Three Bond 1401B or 1401C Lens Cleaning Kit VFK1900BK Blower...

  • Page 7: Disassembly Instructions

    5. Disassembly instructions 5.1. Flow of disassembly procedure Lens unit Shading Frame L Mount Shading Sheet Rear Frame unit Mount Contact unit Lens P.C.B. Ring Mount Base unit 1st Lens Frame unit 2nd Lens Frame unit 3-4th Lens Frame unit 5th Lens Frame unit - 5 -...

  • Page 8: Disassembly Procedure

    5.2. Disassembly Procedure Important： - Work out lens disassembly in the clean room met standard of class 10,000 (Federal Standard 209D) - Regarding the screws, It is not necessary to return to exactly the same position as long as the same specification. <...
  • Page 9 5.2.3. Removal of Shading Sheet 1. Remove the Shading Sheet Shading Sheet 5.2.4. Removal of Rear Frame unit 1. Remove 3 Screws (D) Screw(D) 2. Remove the Rear Frame Unit BLACK 5.2.5. Removal of Lens P.C.B. with Mount Contact unit 1.
  • Page 10 5.2.6. Removal of Ring Mount Base unit Screw(F) 1. Remove the Screw(F) 2. Remove Zoom Drive Pin Zoom Drive Pin Encoder brush SILVER 3. Remove 4 Screws (G) 4. Remove the Ring Mount Base unit Screw(G) <Caution> - Don’t rotate the zoom ring. - Care about the Encoder brush (Above circle).
  • Page 11 5.2.8. Removal of 2nd Lens Frame unit 1. Remove 3 Screws (I) 2nd Lens 2. Remove 3 pcs of 2-5 Cam Pin Frame unit 3. Remove the 2nd Lens Frame unit Cam Barrel unit Screw(I) ×3 2-5 Cam Pin for 2nd Lens Frame unit ×3 5.2.9.

  • Page 12: Lens Cleaning

    6. Lens Cleaning 6.1. Cleaning of lens surface 1. Gently blow off dust on the Lens glass surface. 2. Wipe out dirt on the Lens glass surface with cleaning Kit (VFK1900BK) 【Cleaning Instruction】 Wipe the Lens surface with cleaning sheet starting from centre towards to outside in a circular motion.

  • Page 13: Assembly Instructions

    7. Assembly Procedure 7.1. Flow of Assembly Procedure 5th Lens Frame unit 3-4th Lens Frame unit 2nd Lens Frame unit 1st Lens Frame unit Ring Mount Base unit Lens P.C.B. Mount Contact unit Rear Frame unit Shading Sheet L Mount Shading Frame Lens unit - 11 -...

  • Page 14: Assembly Procedure

    7.2. Assembly Procedure Important： - When tightening the screw, use a torque driver (RFKZ0542) with specified torque described in each step. - When assembling, please be careful not to mix dust into the lens. - Regarding the screws, It is not necessary to return to exactly the same position as long as the same specification. 7.2.1 Installation of the 5th Lens Frame unit and 3-4th Lens Frame unit 1.
  • Page 15 7.2.2. Installation of the 2nd Lens Frame unit 1. Install 2nd Lens Frame unit to Cam Barrel unit with adjusting the rotational phase as the 2-5 Cam Pin penetrates. 2. Install 2-5 Cam Pin for 2nd Lens Frame unit and tighten screw (H) by using the torque driver with specified torque.
  • Page 16 7.2.3. Installation of the 1st Lens Frame unit 1. Install 1st Cam Pin to Cam Barrel unit 1st Lens with adjusting the rotational phase Frame unit as the 2-5 Cam Pin penetrates. Install 1st Lens Frame unit to Cam Barrel unit with adjusting the rotational phase ▲...
  • Page 17 7.2.4. Installation of the Ring Mount Base unit 1. Install 1st Lens Frame unit with Cam Barrel unit to Ring Mount Base unit with adjusting the rotational phase screw (G) as shown in the figure while pulling out the FPC via the Hole.
  • Page 18 7.2.5. Installation of Lens P.C.B. with Mount Contact unit 1. Install Lens P.C.B. with Mount Contact unit to Screw (E) Ring Mount Base unit so that the screw of the Lens P.C.B. match. 2. Tighten Screw (E) Gently. - Screw(E) × 3 Insert FPC to connector of Lens P.C.B.
  • Page 19 7.2.7. Installation of Shading Sheet 1. Install Shading Sheet to Ring Mount Base unit Mount Contact The matte surface is the back side. 7.2.8. Installation of L Mount 1. Install Sealing Rubber 2. Install L Mount 3. Tighten screw (C) by using the torque driver with specified torque. - Screw(C) ×...

  • Page 20: Optical Performance Check

    8. Optical Performance Check 8.1. Overview of the Equipment (2) Checking Chart USB cable (1) fluorescent lamps (4) PC Software (3) Lens and Master Body (1) Install fluorescent lights left and right symmetrically as uneven illumination does not occur. * The standard illuminance on the surface of all the 5 points of the chart described as shown in the figure with red marking is 1500±150 lux.

  • Page 21: Checking Chart Image

    8.2. Checking Chart Image <Preparation> - Checking Chart (Part No. SUKZ000059) that consisted of 5 charts No.1 - No.5. and 4 black charts. - White plastic matte board /Size: 1,440mm(W) x 960mm(H) or above Guide Line - Length: 500mm or more - Thickness: 5mm or more No.2 No.5...

  • Page 22: Master Body Setting

    8.3. Master Body Setting 8.3.1. Master Body Setting -Cancel the Initial Setting -Set the function parameter to below setting Setting Item Setting value Mode dial M (F:4.0. Shutter speed:80) Focus mode Image stabilizer White balance SF mode 1point Photo style Monochrome Metering mode Multi...
  • Page 23 4) For more accurate checking, hang the hand glass installed from the upper part of the center of the Checking Chart to the string down, and adjust it to come to the chart center . and If the lens of oneself reflecting in the mirror is displayed in the center of the LCD monitor, placing is correctly.

  • Page 24: Pc Software

    8.4. PC Software 8.4.1. Required PC Specification OS : Windows 10 Processor：Pentium 4/M or equivalent Memory：512 MB RAM Display：1,024 × 768 resolution video adapter with a 24- or 32-bit display Free Hard Disk Space： 3.2 GB 8.4.2. License Key In order to run the PC software, License Key of Vision Run-Time Engine is required. Please purchase the License according to below steps.

  • Page 25: Visual Checking

    9. Visual Checking 1. Mount repaired Lens on master camera sample. (valid pixels : 47M pixels image sensor) RP Chart 2. Mount master camera on tripod. 3. Set camera as next. - Mode dial : A - Photo style : Standard - Aspect ratio : 4:3 - Aperture : AE priority by Rear Mode Dial - Focus : AFS...
  • Page 26 RP Chart M-Size 300x400mm (SUKZ000035) - 24 -...

  • Page 27: Revision History

    11. Revision History Version Date History 1.02 2019.07.19 1st release 1.03 2019.12.26 Add JIG description of Checking Chart (SUKZ000059) * Please refer to 8.2 <Note> - 25 -...
