URBAN OUTFITTERS Felix Manual

Felix Media Console
Assembly Instructions
TOOLS REQUIRED BUT NOT INCLUDED:
Phillips Head Screwdriver
Pencil
WARNING:
Install the anti-tip kit shown in step 10 to ensure safety.
Do not throw away packing materials and carton until after assembly.
Assemble all parts on a clean smooth surface
CARE INSTRUCTIONS:
Avoid direct exposure to sunlight. Do not place overheat or air conditioning
vents. Adjust levelers so that the furniture sits flat on uneven floors.
Blot spills do not rub, with a clean white cloth.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.

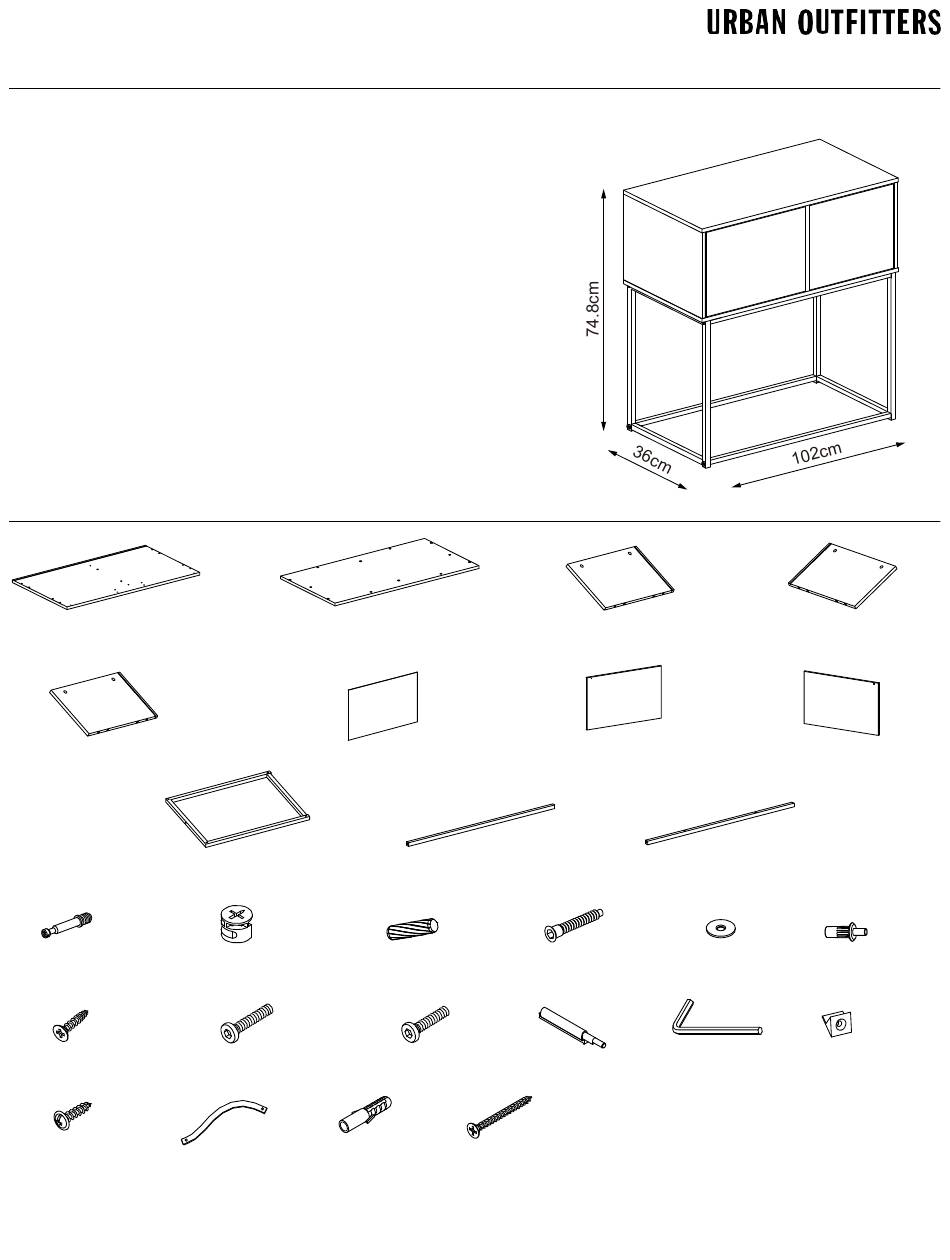

PARTS INCLUDED
A) Top Panel
x1
E) Middle Panel
x1
a) Cam Bolt
b) Cam Lock
[M6x35mm] x6pcs
Ø
[
g) Screw
[M3.5x14mm] x14pcs
m) Screw
[M4x12mm] x1pc
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.
© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights.
Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
B) Bottom Panel
F) Back Panel
x1
I) Base Sides
x2
c) Wooden Dowel
Ø
[ 7.8x30mm] x12pcs
15x12mm] x6pcs
h) Bolt
[M6x25mm] x6pcs
[M6x35mm] x8pcs
n) o)
Strap Wall Plug
1pc 1pc
x1
J) Bottom Rail
x2
[M7x38mm] x6pcs
i ) Bolt j) Rebounder
p ) Screw
[M4x35mm] x1pc
C) Side Panel
x1
G) Door
x1
K) Top Rail
x2
d) Bolt e) Washer
2pcs
k) Allen key
2pcs 1pc
D) Side Panel
x1
H) Door
x1
f ) Pivot Pin
4pcs
l) Wedge
8pcs
Page 1 of 6
