URBAN OUTFITTERS Mason Assembly Instructions

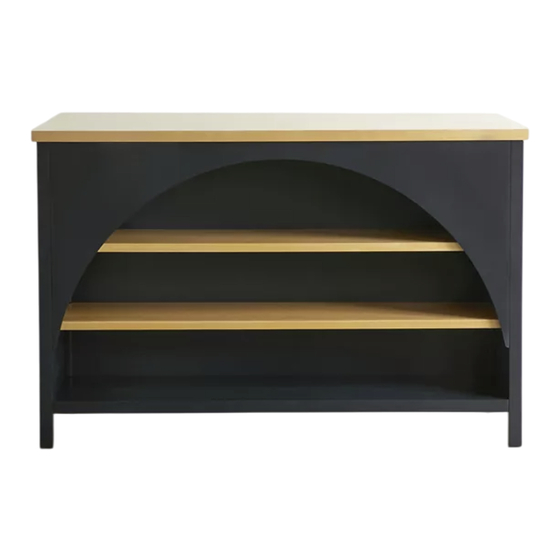

Mason Kitchen Island
Assembly Instructions
TOOLS REQUIRED BUT NOT INCUDED:
Phillips head screwdriver
WARNINGS:
Do not throw away packing materials and carton until after
assembly. Ensure all parts are present prior to assembly.
Contact customer service immediately if parts are missing.
Assemble all parts on a clean smooth surface.
Do not over tighten bolts!
CARE INSTRUCTIONS:
Avoid direct exposure to sunlight.
Do not place over heat or air conditioning vents.
Adjust levelers so that the furniture sits flat on uneven floors.
Blot spills with a clean white cloth, do not rub.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.
PARTS INCLUDED:
(A) Table Top
x1
(E) Panel Frame
x1
(I) Bolt
[M6 x 25mm] x32
(M) Cam Lock
[ø14 x 13mm] x6
02.26.2024 REV1
(B) Side Panel
x1
(F) Panel Frame
x1
(J) Spring Washer
[M6] x32
(N) Grub Screw
x6
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.© 2017 UO,
Inc. All rights reserved, including all applicable copyright, design and patent rights.
Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
URBAN OUTFITTERS
(C) Side Panel
x1
(G) Shelf
x2
(K) Flat Washer
[M6] x32
(O) Shelf Pin
x8
(D) Bottom Shelf
x1
(H) Hex Key
x1
(L) Cam Bolt
[M6 x 51mm] x6
(P) Screw
[3.5 x 12mm] x8
Page 1 of 4
