URBAN OUTFITTERS FLYNN SHORT SHELF Assembly Instructions

FLYNN SHORT SHELF

Assembly Instructions

TOOLS REQUIRED BUT NOT INCLUDED: N/A

Do not throw away packing materials and carton until after

assembly. Assemble all parts on a clean smooth surface

Avoid direct exposure to sunlight. Do not place overheat or air conditioning vents.

Adjust levelers so that the furniture sits flat on uneven floors.

Blot spills do not rub, with a clean white cloth.

Do not use harsh chemicals.

Before cleaning any part test a small spot in a hidden

area. You may need to re-tighten all bolts after initial

use.

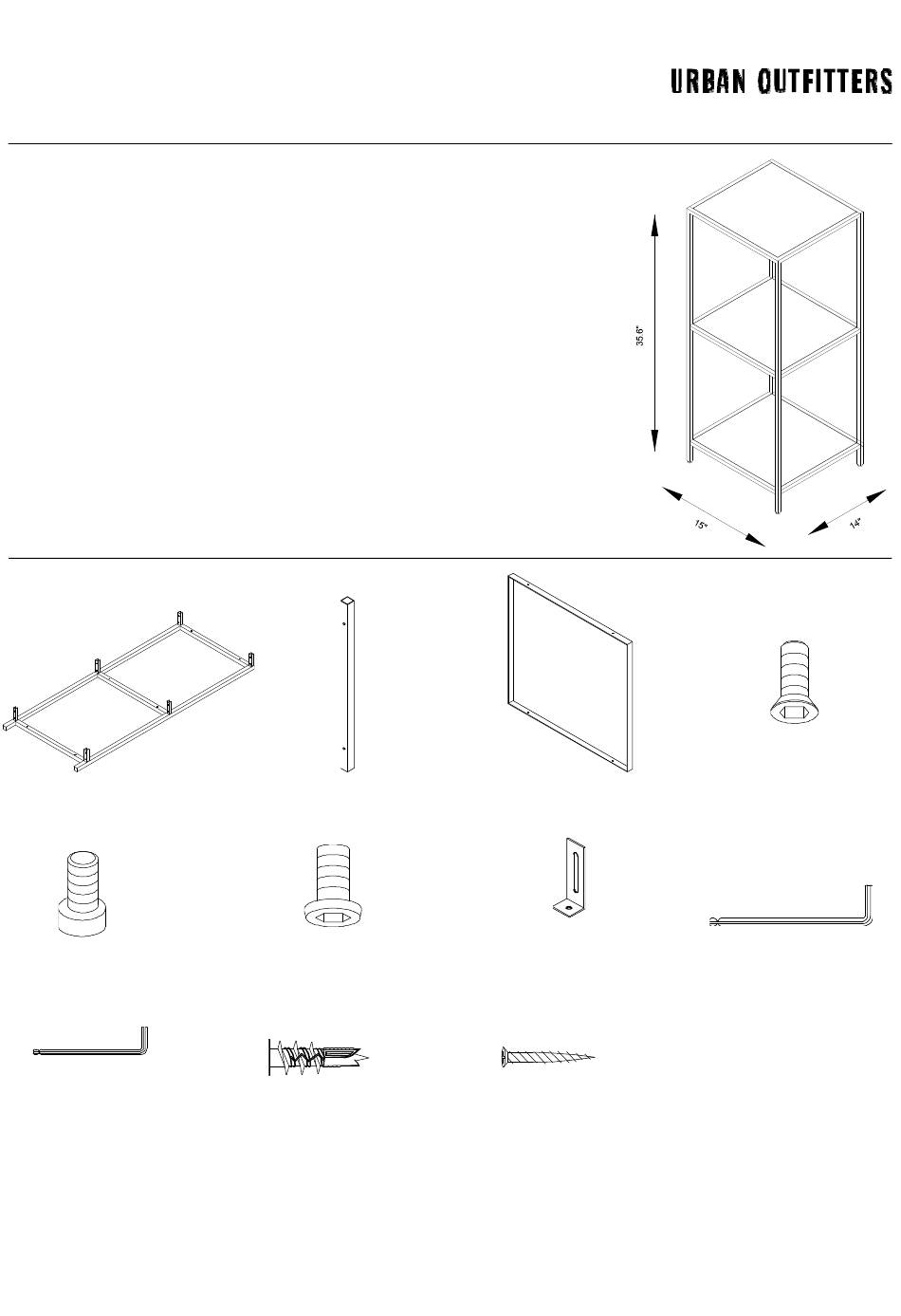

A) Metal Frame x2

E) Plastic leveler x4

I) Allen Key [3mm] x1

EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.

rights. Any unauthorized reproduction, adaptation, distribution or other infringement will be

t d

B) Cross Rail x6

F) Bolt [M6xL10mm] x1

J) Drywall Anchor[13x40] x1

C) Sheet Metal x3

G) Anti-tip bracket x1

K) Wall Screw[4x32] x1

D) Bolt [M5x10mm] x24

H) Allen Key [4mm] x1

Page 1 of 4

Table of Contents

Need help?

Do you have a question about the FLYNN SHORT SHELF and is the answer not in the manual?

Page 1 I) Allen Key [3mm] x1 K) Wall Screw[4x32] x1 J) Drywall Anchor[13x40] x1 EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 1 of 4 rights. Any unauthorized reproduction, adaptation, distribution or other infringement will be...
Page 2 Insert Bolt (D) and partially tighten with Allen key (I). Once all screws are inserted and partially tightened, tighten all screws completely. EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 2 of 4 rights.
Page 3 Insert the Plastic levelers (E) on assembled shelf, and place on right position as shown. Attach anti-tip bracket (G) with bolt (F) using Allen Key (H). EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 3 of 4 rights.
Page 4 Screw the drywall anchor (J) into the wall at the marked location. Insert screws (K) through anti-tip bracket (G) into the drywall anchors (J) and tighten with a Philips head screwdriver (not provided). EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC. © 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent Page 4 of 4 rights.
