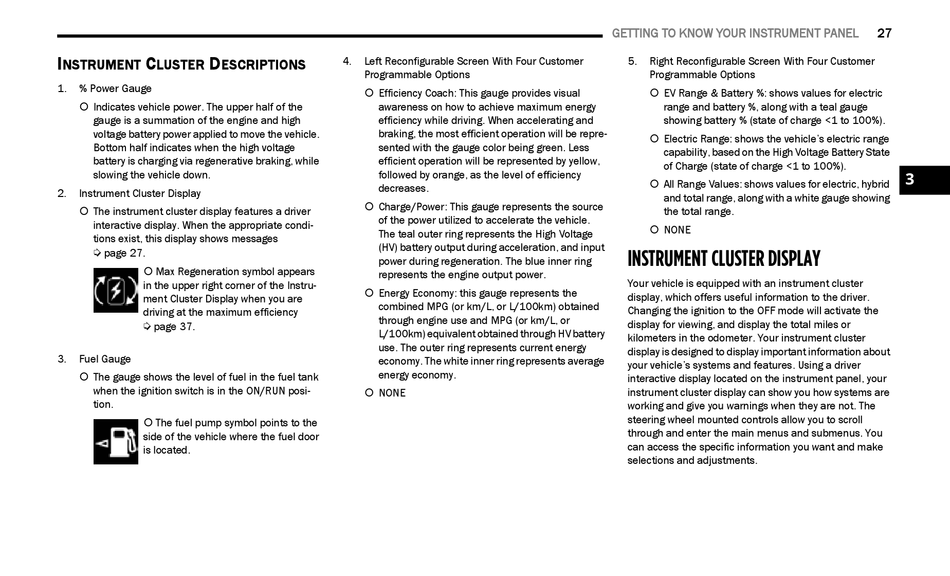

1. % Power Gauge
 Indicates vehicle power. The upper half of the
gauge is a summation of the engine and high
voltage battery power applied to move the vehicle.
Bottom half indicates when the high voltage
battery is charging via regenerative braking, while
slowing the vehicle down.
2.

Instrument Cluster Display

 The instrument cluster display features a driver
interactive display. When the appropriate condi-
tions exist, this display shows messages
page 27.
Ú
 Max Regeneration symbol appears
in the upper right corner of the Instru-
ment Cluster Display when you are
driving at the maximum efficiency
page 37.
Ú
3. Fuel Gauge
 The gauge shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN posi-
tion.
 The fuel pump symbol points to the
side of the vehicle where the fuel door
is located.
4. Left Reconfigurable Screen With Four Customer
Programmable Options
 Efficiency Coach: This gauge provides visual
awareness on how to achieve maximum energy
efficiency while driving. When accelerating and
braking, the most efficient operation will be repre-
sented with the gauge color being green. Less
efficient operation will be represented by yellow,
followed by orange, as the level of efficiency
decreases.
 Charge/Power: This gauge represents the source
of the power utilized to accelerate the vehicle.
The teal outer ring represents the High Voltage
(HV) battery output during acceleration, and input
power during regeneration. The blue inner ring
represents the engine output power.
 Energy Economy: this gauge represents the
combined MPG (or km/L, or L/100km) obtained
through engine use and MPG (or km/L, or
L/100km) equivalent obtained through HV battery
use. The outer ring represents current energy
economy. The white inner ring represents average
energy economy.
 NONE
GETTING TO KNOW YOUR INSTRUMENT PANEL
5. Right Reconfigurable Screen With Four Customer
Programmable Options
 EV Range & Battery %: shows values for electric
range and battery %, along with a teal gauge
showing battery % (state of charge <1 to 100%).
 Electric Range: shows the vehicle's electric range
capability, based on the High Voltage Battery State
of Charge (state of charge <1 to 100%).
 All Range Values: shows values for electric, hybrid
and total range, along with a white gauge showing
the total range.
 NONE
INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an instrument cluster
display, which offers useful information to the driver.
Changing the ignition to the OFF mode will activate the
display for viewing, and display the total miles or
kilometers in the odometer. Your instrument cluster
display is designed to display important information about
your vehicle's systems and features. Using a driver
interactive display located on the instrument panel, your
instrument cluster display can show you how systems are
working and give you warnings when they are not. The
steering wheel mounted controls allow you to scroll
through and enter the main menus and submenus. You
can access the specific information you want and make
selections and adjustments.
