E-Collar Technologies Einstein ET-1202A Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ET-1202A
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Einstein ET-1202A and is the answer not in the manual?

Questions and answers

Related Manuals for E-Collar Technologies Einstein ET-1202A

Summary of Contents for E-Collar Technologies Einstein ET-1202A

  • Page 1 ET-1202A Owner's Manual...

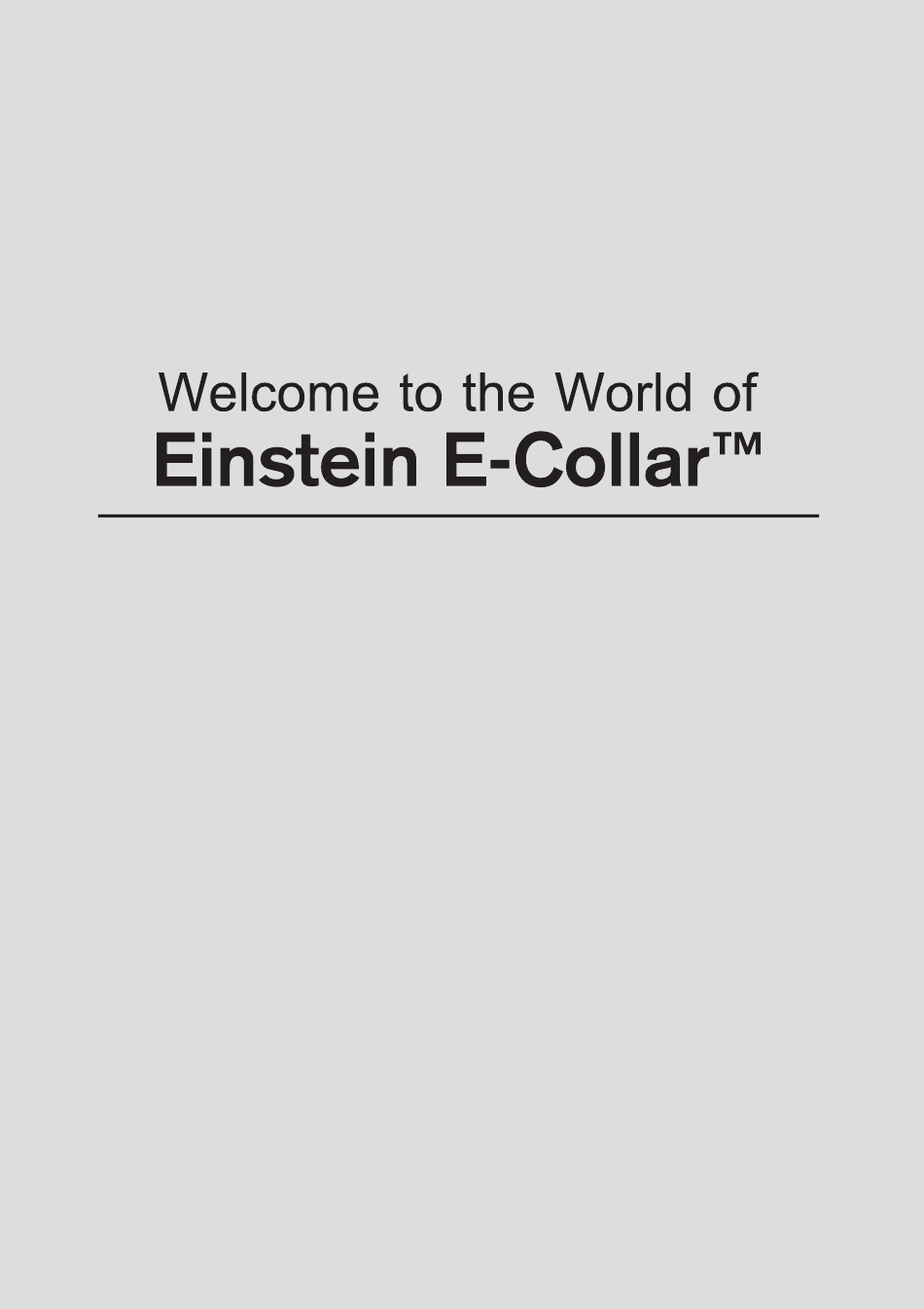

  • Page 2 Welcome to the World of Einstein E-Collar™ ET-1202A Owner's Manual Thank you for purchasing the Einstein Remote Education Collar from E-Collar Technologies, Inc. We have made every attempt to provide you with the Remote Education Collar most technologically advanced product using the most stringent quality and manufacturing standards.
  • Page 3 Characteristics CHARACTERISTICS Range : Up to 1200 yards • Momentary and Continuous Stimulations Supported • Education Tone Supported • Employs Ni-MH Rechargeable Batteries • Convenient Intensity Dial for Quick Adjustment • Stimulation Levels Adjustable from 0 to 100 • Collar Receiver Light for Night Tracking •...
  • Page 4 Contents CONTENTS • • Transmitter 2 Collar Receivers Battery Charger • Lanyard • Battery Charger and (For ET-500 Only) Splitter Cable • • Owner’s Manual Test Light • • Contact Points 3/4" Contact Point Tool Einstein Owner's Manual ET-1202A...

  • Page 5: Table Of Contents

    Table of Contents TABLE OF CONTENTS Safety and General Information • Getting Started • Charging the Batteries • Turning Your E-Collar On/Off • The LCD Display Features • Button Functions • Changing the Intensity Level of Stimulation • Lock/Unlock the Stimulation Intensity Level •...

  • Page 6: Safety And General Information

    An FCC license is not needed to operate Einstein E-Collar transmitters. However, any change or modification made to the transmitter, including the supplied antenna, without the expressed written approval of E-Collar Technologies, Inc. could void your authority to operate. Einstein Owner's Manual ET-1202A...

  • Page 7: Getting Started

    Getting Started TRANSMITTER PARTS Antenna Stimulation Level Dial / Set and Lock Knob Indicator Light Stimulation Button (1D, Black) (LED Window) Stimulation Button (2D, Red) LCD Display Momentary / Continuous Toggle Switch Light and On/Off Button Mode Button Battery Charging Receptacle and Rubber Cover On/Off Magnetic Dot Einstein Owner's Manual ET-1202A...
  • Page 8 Getting Started COLLAR RECEIVER PARTS Collar Strap 5/8" Contact Points Indicator and Tracking Lights (LED Window) On/Off Magnetic Dot THIS D-CLIP IS NOT TO BE USED AS A TIE OUT Battery Charging Receptacle and Rubber Cover Einstein Owner's Manual ET-1202A...

  • Page 9: Charging The Batteries

    Charging the Batteries CHARGING THE BATTERIES Indicator Light will blink “Green” under normal operation. It will flicker “Red” when stimulation is applied and will blink “Red” when recharging is required. We recommend you fully charge your e-collar every six months when not in use to maintain battery life. Battery Charger and Splitter Cable Splitter Cable 120 Volt Charger...
  • Page 10 Charging the Batteries The indicator light will turn solid red during the 10 to 12 hour • charge cycle and stay red even though the unit is fully charged. Battery Care: • It is important to fully charge the batteries and fully discharge them for the first three uses.

  • Page 11: Turning Your E-Collar On/Off

    Turning Your E-COLLAR On/Off TURNING YOUR E-COLLAR ON/OFF COLLAR RECEIVER ON/OFF MAGNETIC SWITCH Color Dot • To turn the Collar Receiver On or Off : Position the color dot on the Transmitter close to the color dot on the Collar Receiver. Two beeps will confirm the collar receiver has been turned on and a single beep will confirm the unit has been turned off.

  • Page 12: The Lcd Display Features

    The LCD Display Features THE LCD DISPLAY FEATURES Press down on the Stimulation Level Knob or press any button to wake up the LCD display. Please note that if the collar receiver is on, pressing the stimulation buttons and/or the mode button will trigger the collar receiver. Displays the Stimulation Level : “0”means no stimulation and “HI”...

  • Page 13: Button Functions

    Button Functions BUTTON FUNCTIONS TRANSMITTER The ET-1202A transmitter is equipped with four control buttons, one toggle switch, LCD display, and an adjustable dial. For long range use hold the transmitter up like the Statue of Liberty and never allow the antenna to touch anything as it will decrease the range.
  • Page 14 Button Functions Mode Button “M” - Mode Button allows the user to change modes, cycling between 1D Mode to Education Tone Mode, Education Tone Mode to 2D Mode, 2D Mode to Education Tone Mode, and Education Tone Mode to 1D Mode as shown in the diagram.
  • Page 15 Button Functions - In Education Tone Mode, Sends an education tone to the Dog 1 collar receiver. * After 1.25 seconds of holding down the education tone the collar will administer a stimulation as long the button remains pressed providing “Pavlovian Conditioning”. Stimulation Button (2D) - In 1D/2D Mode, Sends momentary and continuous stimulation to the Dog 2 collar receiver based on the selection of toggle switch.
  • Page 16 Button Functions Momentary/Continuous Toggle Switch - Toggle switch on the backside of the transmitter allows the user to switch between Momentary Stimulation and Continuous Stimulation. - If Continuous Stimulation is selected, pressing stimulation buttons (1D or 2D) will send stimulation to the collar receiver for the duration of the button being pressed.

  • Page 17: Changing The Intensity Level Of Stimulation

    Changing the Intensity Level of Stimulation CHANGING THE INTENSITY LEVEL OF STIMULATION Rotating clockwise increases the stimulation level and conversely, rotating counter-clockwise lowers the stimulation level. It is highly recommended that the user practices changing levels and modes before putting the collar receiver on the dog. Setting the correct stimulation level for your dog is very important.
  • Page 18 Changing the Intensity Level of Stimulation CHANGING THE INTENSITY LEVEL OF STIMULATION For example, if you want your dog to come to you and heel, you can hold the button down until your dog comes and heels or if jumping is an issue, you can hold the button down anytime their front paws are off the ground.
  • Page 19 Changing the Intensity Level of Stimulation CHANGING THE INTENSITY LEVEL OF STIMULATION IMPORTANT TRAINING TIP E-Collars should be used to reinforce commands your dog already knows. It is not a replacement for basic leash obedience training, but a tool to allow you to better communicate to your dog. For best results, use the least amount of stimulation required to get compliance from your dog.

  • Page 20: Lock/Unlock The Stimulation Intensity Level

    Lock/Unlock the Stimulation Intensity Level LOCK/UNLOCK THE STIMULATION INTENSITY LEVEL Dog 1 Dog 2 How to Lock/Unlock the Stimulation Level This feature is useful when controlling two dogs simultaneously and you want to have different stimulation levels for each dog. In 1D Mode, you can see the 1D icon is blinking on the LCD display.

  • Page 21: Indicator Light

    Indicator Light INDICATOR LIGHT • TRANSMITTER INDICATOR LIGHT Battery Charge level is signified by the flashing light going from “green” (ready for use) to “amber” (need to charge soon) and then to “red” (charge immediately). When any of the function buttons are pressed the indicator light will turn “red”...

  • Page 22: Testing Your Einstein

    Testing Your Einstein TESTING YOUR Einstein Snap the test light onto the contact points as shown in the above figure. With both units on and green lights flashing, press the stimulation buttons at 1D or 2D Mode while turning the stimulation up and down, the test light should brighten as you go higher in stimulation.

  • Page 23: Replacing The Contact Points

    Replacing the Contact Points REPLACING THE CONTACT POINTS The standard 5/8” contact points are used for most dogs. Thicker fur breeds require the longer 3/4” contact points. Replace the 5/8” contact points by following the instructions below using the enclosed contact point tool. 1.

  • Page 24: Correctly Fitting The Collar

    Correctly Fitting the Collar CORRECTLY FITTING THE COLLAR The collar should be adjusted to allow the “contact points” to have direct contact with the skin. You should be able to fit a couple of fingers between the collar strap and your dog. Too tight poses the risk of skin irritation and discomfort.

  • Page 25: Warranty

    Warranty WARRANTY To Register for the Limited Lifetime Warranty : To register your Einstein product, please log onto our website at www.ecollar.com, click on the warranty registration link and fill out the required information. Please register your product within 30 days of your purchase.
  • Page 26 Memo MEMO Einstein Owner's Manual ET-1202A...
  • Page 27 Contact Information CONTACT INFORMATION E-Collar Technologies, Inc. 2120 Forrest Park Drive Garrett, IN 46738 Toll-Free 1-855-326-5527 Toll-Free Fax 1-855-226-5527 www.ecollar.com sales@ecollar.com customerservice@ecollar.com Einstein Owner's Manual ET-1202A...
