- Page 1 Easy Educator EZ-904 Quick Start Guide E-Collar Technologies, Inc.
- Page 2 Welcome Thank you for trusting us with your purchase of the 904 Easy Educator Remote Education Collar. We have made every attempt to provide you with the most technologically advanced product using the most stringent quality and manufacturing standards. We are confident you will be pleased with the results you will attain with the 904 Easy Educator.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Characteristics Package Contents Turning ON/OFF the EZ-904 System Charging Instructions EZ-904 Functions LCD Display 4Dog Mode Buttons Descriptions and Stimulation Button Assignments I Mode Lock and Unlock Stimulation Level Booster Level Setup Lost Transmitter Activation EZ-904 Four Dog Default Settings Pairing/Syncing Warning Mode Warranty and Registration... -
Page 4: Characteristics
CHARACTERISTICS 1/2 mile Range Employs Quick Charge Li-Polymer Batteries Convenient Intensity Dial for Quick Adjustment Stimulation Levels Adjustable from 0 to 100 Collar Receiver Light for Night Tracking “Lock and Set” Stimulation Safety Feature User Adjustable Boosting Levels Patented “I” Mode Provides Instant Stimulation Waterproof and Shock Resistant... -
Page 5: Package Contents

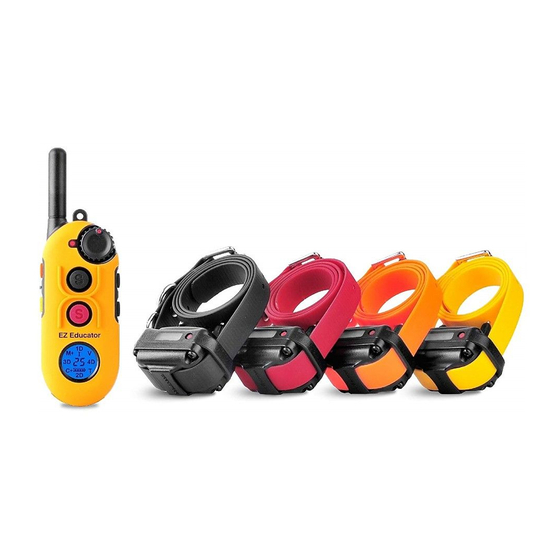

PACKAGE CONTENTS Ergonomic Transmitter Four Waterproof Quick Start Owner’s Collar Receivers High - Remote-Sender Guide Quality Biothane Strap Easy Educator EZ-904 Quick Start Guide E-Collar Technologies, Inc. Test Light Contact Point Tool 5/8” and 3/4” Contact Points Lanyard Battery Charger... -
Page 6: Turning On/Off The Ez-904 System
T urning ON/OFF the EZ-904 System Turn ON/OFF the transmitter by pressing the lower right button for 1 second. Turn ON/OFF the collar receiver by placing the red dot on the transmitter on the red dot on the collar receiver for 1 second. -
Page 7: Charging Instructions
Charging Instructions Please charge the units on or before the low battery indication. It is best not to wait until the batteries are fully drained to avoid damage. To charge insert the micro USB into the transmitter and the charge plug into the collar receiv- er as pictured. -
Page 8: Ez-904 Functions
EZ-904 Functions Easy Educator 904 provides 5 types of stimulation sensations, tone, and vibration. Stimulation Icon Function Description Momentary Stimulation Send momentary stimulation (volume level) Send momentary boosting stimulation Momentary Boost Stimulation (volume + boost Level) Send continuous stimulation Continuous Stimulation (max 10 sec, volume level) Send continuous boosting stimulation Continuous Boost Stimulation... -
Page 9: Lcd Display 4Dog Mode
LCD DISPLAY 4 DOG Mode Icon Description Remarks Momentary Stimulation Short Pulse of Stimulation Momentary Boost Stimulation Short Pulse of Boosted Stimulation Continuous Stimulation Up to 10 Seconds of Stimulation Continuous Boost Stimulation Up to 10 Seconds of Boosted Stimulation Stimulation Level Displayed on the LCD, Instant Stimulation Mode Must Start From “0”... -
Page 10: Buttons Descriptions And Stimulation Button Assignments
Buttons Descriptions and Stimulation Button Assignments The 904 Easy Educator has 4 control buttons which are assigned to stimulation, vibration and tone. S1 is programmed for Dog 1, S2 is for Dog 2, S3 is for Dog 3, and S4 is for Dog 4. It also has 2 program buttons for changing mode and turning the unit ON and OFF. - Page 11 Program Function Description Buttons Press more than 1 sec to turn ON Power ON/OFF Press more than 2 sec to turn OFF When Stimulation level is not 0 ON/OFF 1D light : ON/OFF + S1 2D light : ON/OFF + S2 Light 3D light : ON/OFF + S3 4D light : ON/OFF + S4...
- Page 12 Function Possibilities Control Buttons 1Dog 2Dog 3Dog 4Dog S1-Button M / C(I) / V / T N / A N / A N / A S2-Button N / A M / C(I) / V / T N / A N / A S3-Button N / A N / A...
-
Page 13: I Mode 1
I Mode “I” Instant Stimulation Mode “I” Instant Stimulation Mode The "I" mode is a patented feature which allows the stimulation to increase gradually as determined by the user. The gradual introduction of stimulation provides a more gentle sensation and removes the startling effect sometimes associated with applying a constant level of stimulation. -
Page 14: Lock And Unlock Stimulation Level
Lock and Unlock Stimulation Level * Important Note: Blinking “1D”, “2D”, “3D”, or “4D” Indicates Unlocked * Important Note: Blinking “1D”, “2D”, “3D”, or “4D” Indicates Unlocked Stimulation / Solid “1D”, “2D”, “3D” or “4D” Indicates Stimulation / Solid “1D”, “2D”, “3D” or “4D” Indicates Locked Stimulation Locked Stimulation Lock and Unlock Stimulation Level for Dog 1... - Page 15 Lock and Unlock Stimulation Level for Dog 3 Lock and Unlock Stimulation Level for Dog 3 1. Check LCD display to confirm only 3D icon is blinking. 2. Set the desired stimulation to be locked by rotating volume dial. 3. Press P button and S3 simultaneously and hold one second to lock. 4.
-
Page 16: Booster Level Setup
Booster Level Setup Boost Level Setup for Dog 1 Boost Level Setup for Dog 1 1. Change the mode of S1 button to Momentary if not already programmed to “M” mode. 2. Change the Stimulation level to “0” (Stimulation level should be unlocked) 3. - Page 17 Boost Level Setup for Dog 3 Boost Level Setup for Dog 3 1. Change the mode of S3 button to Momentary if not already programmed to “M” mode. 2. Change the Stimulation level to “0” (Stimulation level should be unlocked) 3.
-
Page 18: Lost Transmitter Activation
Lost Transmitter Activation Lost Transmitter Activation (6 hour timer) : ON/OFF (Bottom Right) Lost Transmitter Activation (6 hour timer) : ON/OFF (Bottom Right) plus P (Top Right) plus P (Top Right) 1. Change the Stimulation level to “0” 2. Press ON/OFF button and then press P button simultaneously. 3. -
Page 19: Ez-904 Four Dog Default Settings
EZ-904 Four Dog Default Settings Factory default setting of EZ-904 is as below. You can change Tone Mode, Vibration Mode, and Instant Mode by using computer interface tool which can be downloaded at http://www.ecollar.com http://www.ecollar.com Factory Default Setting S1-Button 1D Momentary S2-Button 2D Momentary S3-Button... -
Page 20: Pairing/Syncing
Pairing/Syncing When you change transmitter or collar receivers they will need to paired/ synced to each other for them to communicate with each other. Pairing/Syncing for Dog 1 (ON/OFF + S1) Pairing/Syncing for Dog 1 (ON/OFF + S1) 1. Turn on the Transmitter. 2. - Page 21 Pairing Pairing/Syncing /Syncing for Dog 3 (ON/OFF + S3) for Dog 3 (ON/OFF + S3) 1. Turn on the Transmitter. 2. Rotate the intensity dial to “0”. 3. Turn off the collar receiver. Put the red dot on the transmitter against the red dot on the collar receiver for more than 5 seconds till the solid green light starts blinking on and off rapidly.
-
Page 22: Warning Mode
Warning Mode (Press “P” button) EZ-904 provides special function to protect dogs. If P button is pressed, EZ-904 will enter into warning mode. In Warning Mode, all the Momentary and Continuous stimulations assigned to any S button will be changed to Vibration. Short one beep sound indicates to enter into warning mode and “M”... -
Page 23: Warranty And Registration
WARRANTY AND REGISTRATION To register your Pro Educator please select one of the following procedures (1) Go to the “Products” section on www.ecollar.com www.ecollar.com and click the “Register Your e-Collar Products” tab and complete the form (2) Fill out the provided warranty registration card and mail it or fax it to us at 1-855-226-5527. - Page 24 International : 001-260-357-0051 www.ecollar.com sales@ecollar.com customerservice@ecollar.com This product is covered by various patents including but not limited to patents 8757098 and 8833309. Patent is pending on the Instant Stimulation Feature on this device. Copyright 2014 E-Collar Technologies, Inc. All Rights Reserved.
- Page 25 MEMO...
