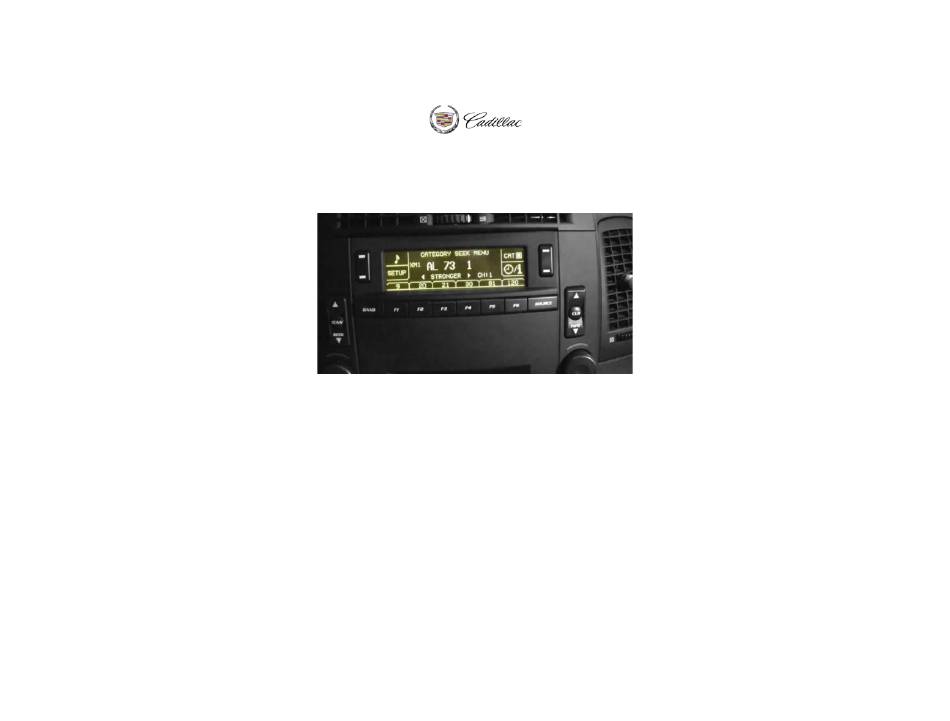

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 PXDX-CTS QUICK START AUXILIARY INPUT INSTALALTION GUIDE FOR CADILLACE CTS/SRX* WITHOUT XM TUNER created June 10, 2018 Revised: August 29, 2020...
- Page 2 (See Fig. 2) Tuner), chances are you have not been able to find a viable solution for connecting and playing portable audio devices in your car. The PXDX-CTS Auxiliary input adapter kit allows these proud owners to connect and play all kinds of audio devices including Smartphones, iPad, MP3 players, iPods etc.
- Page 3 6. Press 8-pin gray plug release tab to disconnect from radio (See Fig. 4) 7. Connect factory gray plug to 8-pin black connector on installation harness (See Fig. 5). Fig. 7 radio terminals Fig. 5 8-pin connector 8. Connect installation harness 8-pin black plug (See Fig. 6) to radio slot vacated in step 6 Fig.
- Page 4 14. Route audio cable to front of the dash and connect to audio device. Optional: Purchase optional 3.5F-DM cable (See Fig. 13) to place a female jack on dashboard. Fig. 10 12. If not already set, move dip-switch #3 and #8 to “ON” or down (the rest remain OFF or UP) as seen in Fig.
- Page 5 For help please email support@discountcarstereo.com © 1995-Aug-20 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
