Discount Car Stereo C5CD-HF Quick Start Installation Manual

1997-04 corvette with 12-disc cd changer
Hide thumbs Also See for C5CD-HF:
Table of Contents

Advertisement

Quick Links

Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
C5CD-HF

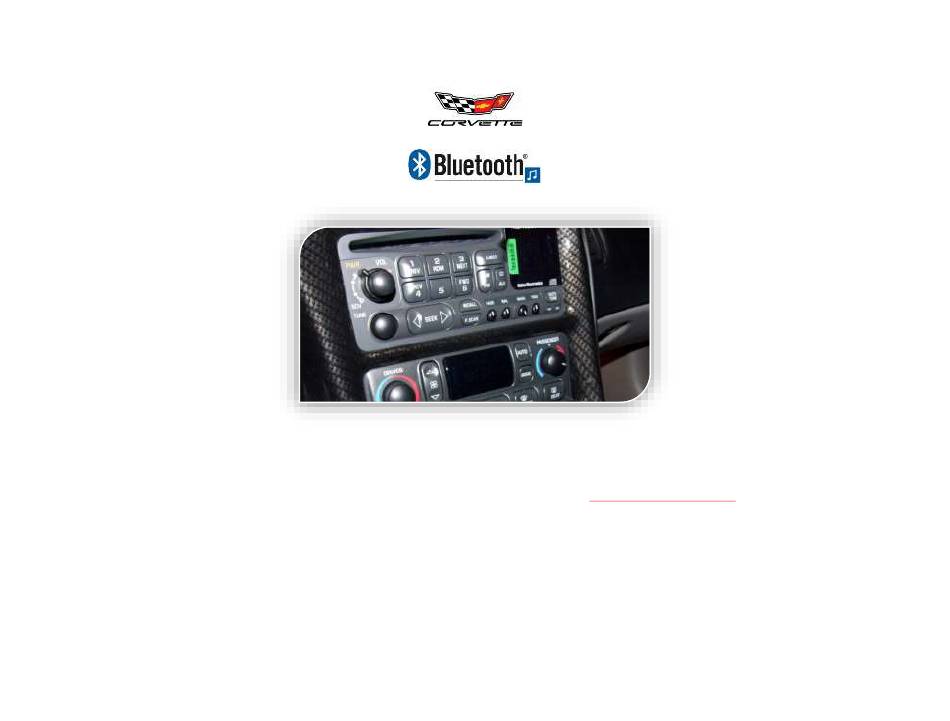

Quick Start Bluetooth Installation Guide for select 1997-04 Corvette
with 12-Disc CD Changer
Created January 16, 2013
Revised January 22, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C5CD-HF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Discount Car Stereo C5CD-HF

Summary of Contents for Discount Car Stereo C5CD-HF

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 C5CD-HF Quick Start Bluetooth Installation Guide for select 1997-04 Corvette with 12-Disc CD Changer Created January 16, 2013 Revised January 22, 2020...

  • Page 2: Installation

    If looking to add Bluetooth features to your C5 with 12-disc changer in trunk or hatch the C5CD-HF Kit is for you. This exclusive, intuitive and easy to use kit is essential to reducing driver distraction and compatible with virtually all Smartphones and sounds great for mobile conversations, streaming music, podcast and more.
  • Page 3 Playback Options Explained freestanding. To play audio device (e.g. Mp3 player) simply connect it to the jack. To listen to the CD changer, simply disconnect audio device During checkout you are required to select a playback option. from jack (jack must be empty for CD playback) 1.
  • Page 4 Note: The 3-pin plug may not be present in 2004 model. Alternates for 12V accessory supply includes: Fuse #11 or #22 of interior fuse box. (See Fig. 8). Please use voltmeter to ensure proper voltage. Fig. 6a 4. Tap installation harness red wire to ACC (Accessory) supply power in vehicle.
  • Page 5 commands and phone dialog can be carried out (cable is 6ft.) or purchase optional G2-HF Kit which allows microphone to install to visor etc. Please complete the rest of the install prior to securing button to the dash. Once you decide on a location simply remove tape backing Fig.

  • Page 6: Bracket Mount

    Fig. 13 Fig. 16 USB head 3. Snap USB head (See Fig. 16) to bracket until flush (See Fig. 17) Fig. 14 Fig. 17 Flush mounted to dash 4. Tuck and secure any extra wire away from moving parts and test See Bluetooth Pairing and Connection operation ( 4.

  • Page 7: Bluetooth Pairing And Connection

    Bluetooth Pairing and Connection Bluetooth Operation This process must be carried out upon initial install after which the C5CD-HF will Press “CD AUX” or “TAPE AUX” button on radio to enter Bluetooth Mode. automatically reconnect with paired phone upon turning ignition key.

  • Page 8: Package Contents

    Optional visor mount microphone kit If you’ve installed or plan to install one of our “HF” (Hands-Free) kits, be aware the microphone is built into the push-control button (See Fig. 1) which means it must be mounted or installed in an area where it can be accessible to the driver which may work in some vehicle but may not be optimum for issuing voice commands or holding Bluetooth conversations in others.

  • Page 9: Feature Comparison

    Feature comparison: Bluetooth profiles; namely Hands-free calling in Fig. 4 (See Table 1) and music streaming (A2DP). Music streaming kits (See Table2) Table 1 Modules A2DIY-C5CD C5CD-HF A2DIY-C5 C5-HF Retains changer playback YES* Requires working CD changer Audio input jack (Aux in)

  • Page 10: Frequent Asked Questions

    3.5mm jack and aux device will play. To return to music streaming press and release control button. © 1995-Jan-20 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are...
