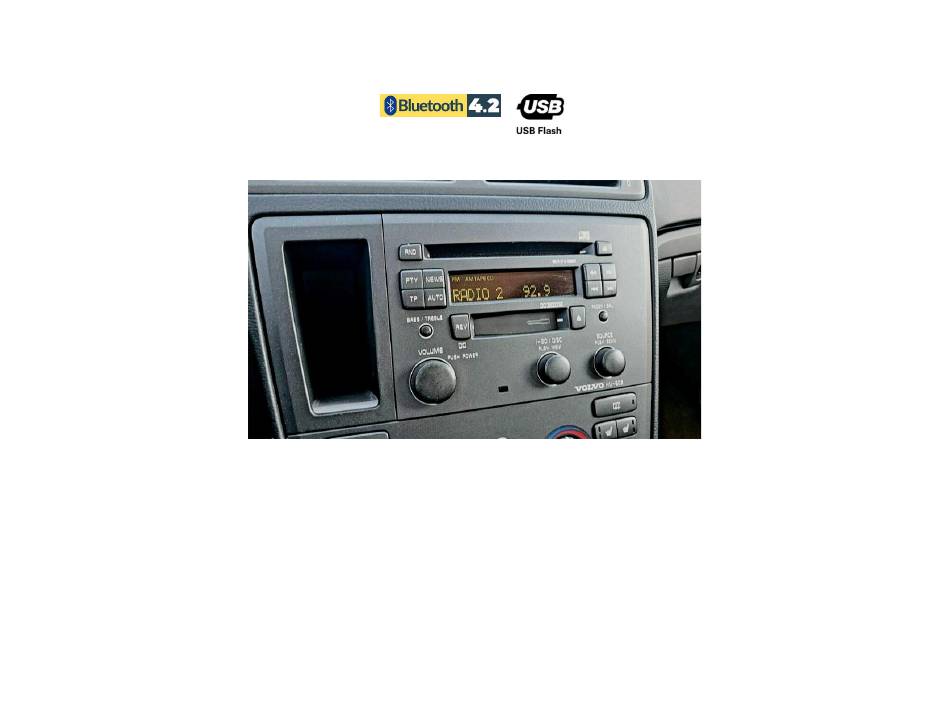

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BT6-VOLHU QUICK START BLUETOOTH MEDIA INSTALL GUIDE FOR SELECT 2001-07 VOLVO HU RADIOS. Created: August 16, 2024 Revised: February 20, 2025...
-
Page 2: Installation
Upgrading these radios to support Bluetooth is a great way to bridge the gap. The BT6-VOLHU smart media module does not only supports Hands-free calls, streaming, but also MP3, WMA, FLAC, ACC, WAV, AIF, IFC files stored on a USB card etc. - Page 3 Fig. 5 Fig. 3 Unplug the connectors on the reverse of the climate control panel and place it to one side. 5. Remove the (2) screws (Torx 25) holding the bracket with the radio and 9. Remove (2) screws (Torx 25) from radio bracket. See Fig.6 dashboard and climate control panel in the center console (See Fig.
- Page 4 14. Secure microphone to headliner or visor using included clip (See Fig. 10) 15. Route microphone cable (10 ft. long) down side pillar, under steering column and into radio cavity, 16. Connect microphone plug to module “MIC” input. (See Fig. 11) Wind noise will negatively affect phone audio.
- Page 5 Optional USB extension cable Note: The module includes (2) USB ports. (See Fig. 15) One for charging (left), the other for media playback/software upgraded (right). Extension cable is not required for operation because users may connect their own charging cable/media memory card directly to the module; however, the optional dash mount extension cable (See Fig.
-
Page 6: Bluetooth Pairing
Bluetooth pairing Bluetooth operation Pairing process varies among devices but basic steps are the same. This process is done upon initial install and will not have to be repeated Press Power/Volume button to switch radio on Turn SOURCE knob and select CD-CHRG mode (See Fig. 18) Turn ignition and radio “ON”... - Page 7 See Fig. 20 The BT6-VOLHU also supports Flash media playback. All media must be formatted to FAT16 or FAT32 after which you may save music files (MP3, WMA, FLAC, ACC etc.) to designated folders as explained next.
-
Page 8: Aux Playback
Flash media requirements and functions AUX playback The BT6-VOLHU includes an AUX input jack/cable. Use to connect and play any Formatting wired audio device including MP3 players, iPods, car play, etc. Before loading files/folders we recommend formatting flash drive etc. to Connect the included male-male aux cable to the module AUX input jack (See Fig. - Page 9 Email support@discountcarstereo.com ending call. © 1995-2025-02-20 Discount Car Stereo, Inc. All rights reserved. Information in this document is How do I listen to AUX device. subject to change without notice. Other products and companies referred to herein are To switch to AUX, ensure Flash drive port is empty and streaming is paused.
