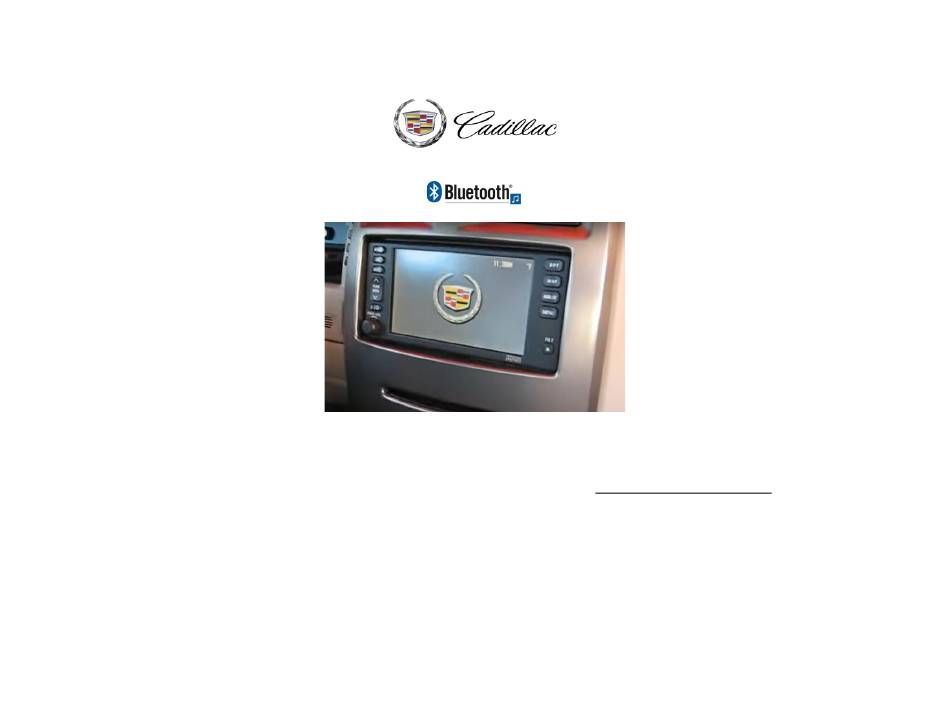

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2D-SRX QUICK START INSTALLATION GUIDE FOR CADILLAC 2003-06 SRX & 2004-09 XLR NAVIGATION & XM TUNER MODULE created August 10, 2015 Revised: March 2, 2022...
-
Page 2: Installation
Introduction Looking to stream music application in your 1 Generation SRX with Navigation radio and XM module? Our A2D-SRX Bluetooth module, allows these vehicles owners to stream music applications (e.g., Pandora, Apple Music, SiriusXM, Fig. 1 Spotify etc.) from Smartphone, Tablet, Kindle etc. through the navigation radio XM port. - Page 3 XLR navigation radio removal: On the bottom of the sifter, pull the chrome/wood trim downward, and then remove (1) screw exposed. Pull up on the shifter an and remote it as seen in Fig. 4 Fig. 2 Remove (4) 10mm bolts securing radio to the dash (See Fig. 3) Fig.
- Page 4 Fig. 8 Radio connectors Disconnect 16-pin plug (See Fig. 9) from navigation radio (See Fig. 8) Fig. 6 4. Remote (4) 9/32” screws securing radio (See Fig. 7) Slide radio forward to reveal connector and proceed to next page. Fig. 9 Connect 16-pin plug to module 16-pin socket (See Fig.
- Page 5 Connect module 16-pin plug (See Fig. 9) to radio slot vacated in step 6. Pairing Connect single red wire to a 12V Accessory supply wire in vehicle. Pairing process varies among devices but basic steps are the same. This not connect to 12V constant supply (battery) process is done upon initial install and will not have to be repeated Turn Ignition and navigation radio “ON”...
-
Page 6: Operation
Operation Optional smart remote Smart remote is optional and not required for the A2D-SRX operation, however Turn ignition and navigation radio “ON” instead of fumbling with phone, simply press buttons while keeping eyes on the 2. Press “BAND” button and select XM1/2 road. -
Page 7: Frequently Asked Questions And Troubleshooting
Select “Not subscribed” option when ordering or if you plan to renew at a later date, select Subscribed otherwise XM will not play upon activation. 4. My XM subscription is still active; will the A2D-SRX still work? YES; Retain XM playback by selecting “Subscribed” from options because “Not subscribed”...
