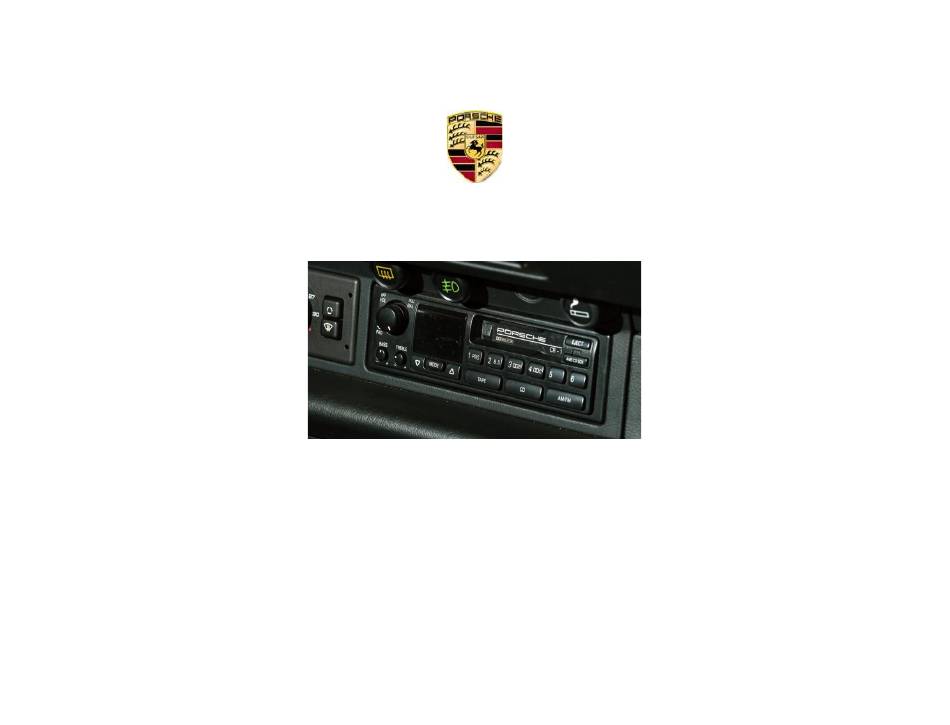

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 CR12-AUX QUICK START AUXILIARY ADAPTER INSTALLATION GUIDE FOR PORSCHE CR-1 & CR-2 RADIOS Created: January 11, 2017 Revised: February 7, 2025...
-
Page 2: Installation
Just because you drive an older car does not mean you have to settle for old (See Fig. 3/4) technology. With the CR12-AUX auxiliary input adapter; Porsche 911, 944, 964, 968, 993 vehicles with CR-1 or CR-2 radios are able to connect and play many portable audio devices via a 3.5mm audio input. - Page 3 Fig. 6 input jack Fig. 3 13-pin radio socket 7. Route audio cable to dash or wherever audio device will reside (within 3 ft.) 8. Connect installation harness 16-pin plug (See Fig. 7) to module 16-pin connector (See Fig. 8) Fig.
- Page 4 Optional USB extension cable installation Notes: 1. Optional 6 ft. USB dash mount extension cable is not required for operation; however, it extends USB charging port (See Fig. 11) to dashboard, glovebox etc. The USB port supports software updates and charging only Drill a ¾”...
-
Page 5: Operation
Important Notes: • This product has no affiliation with Porsche etc. The CR12-AUX works only on Porsche CR-1 or CR-2 radios. If vehicle has optional • There are no warranties expressed or implied by purchase of this product CD changer; it must be disconnected.
