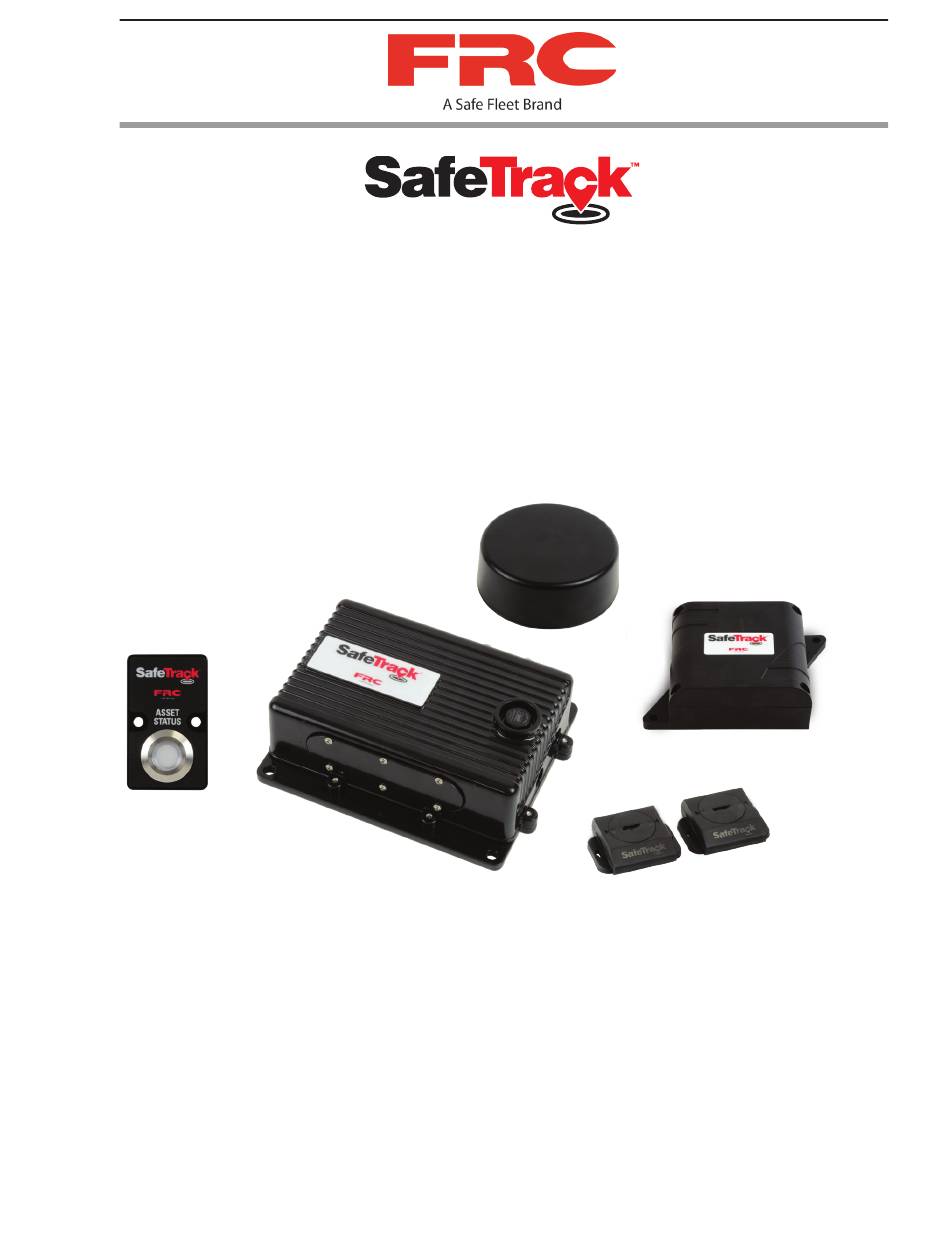

- Page 1 SafeTrack – Hardware Installation Guide Hardware Installation Guide V0.03 FIRE RESEARCH CORPORATION www.fireresearch.com 26 Southern Blvd., Nesconset, NY 11767 TEL +1 631.724.8888 FAX 631.360.9727 TOLL FREE 1.800.645.0074...
-
Page 2: Table Of Contents
SafeTrack – Hardware Installation Guide Table of Contents 1 INTRODUCTION ..................3 2 SAFETRACK HARDWARE ................3 2.1 SafeTrack Hub 2.2 SafeTrack LED 2.3 SafeTrack Relay 2.4 SafeTrack Tag 3 INSTALLING THE SAFETRACK HUB ............5 3.1 Mount Recommendations 3.2 Mechanical Mount Access Available Behind Mount Wall Access NOT Available Behind Mount Wall 3.3 Electrical Install 3.3.1 Power Supply... -
Page 3: Introduction

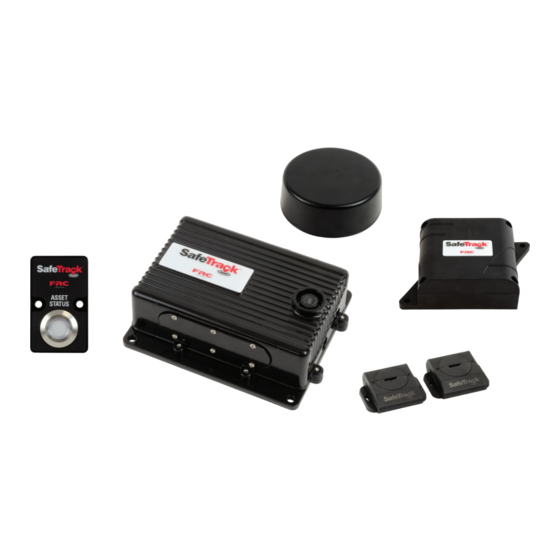

SafeTrack – Hardware Installation Guide 1 INTRODUCTION SafeTrack will help you reduce equipment loss. SafeTrack will notify you prior to departing if an asset is: • Not on the vehicle • Not present in the assigned storage location 2 SAFETRACK HARDWARE The SafeTrack System comprises of the following hardware components. -
Page 4: Safetrack Relay
SafeTrack – Hardware Installation Guide 2.3 SafeTrack Relay This is a hardware device referred to as the SafeTrack Relay. This device is typically fixed mounted inside a Vehicle Storage Location. The Relay monitors the presence/absence of assets in the compartment and relays the information to the Hub. -
Page 5: Installing The Safetrack Hub
SafeTrack – Hardware Installation Guide 3 INSTALLING THE SAFETRACK HUB SafeTrack Hub Bottom View SafeTrack Hub Mount Hole Mount Hole Mount Hole Mount Hole HUB Wiring Harness Power, IO, CAN, Mount Hole (opt. USB) Mount Hole Mount Hole Mount Hole SafeTrack Hub Side View (Service Access Plate Side) Service Panel... -
Page 6: Mechanical Mount
SafeTrack – Hardware Installation Guide 3.2 Mechanical Mount Access Available Behind Mount Wall 1. Drill two holes that adhere to the dimensions of the Hub in terms of location and size of holes. 2. Use bolts to mount the Hub to the wall 3. -
Page 7: Battery Signal Input
SafeTrack – Hardware Installation Guide 1. Connect the Hub ground pin to a location on the Vehicle chassis that can serve as a safe ground for the Hub. Away from major device such as a Q-Siren. 2. Connect the Hub power pin to a battery direct terminal in the vehicle. -
Page 8: Installing The Safetrack Led
SafeTrack – Hardware Installation Guide 4 INSTALLING THE SAFETRACK LED BEZEL PLATE FRONT VIEW The LED Assembly consists of • A Bezel Plate • An LED Indicator Light with hanging wire pigtail with 4 leads 4.1 Mechanical Mount 1. Locate a flat surface on a location that is clearly visible to the driver when seated in the can, that has sufficiently large surface area to house the LED Bezel and where 3 through holes can be drilled. -
Page 9: Electrical
SafeTrack – Hardware Installation Guide 5. Reach behind the mounting surface and use a hex nut to tighten the LED and the Bezel against the mount surface. 6. Make sure the Bezel is properly oriented and the mounting holes align with the holes drilled for mounting. 7. -
Page 10: Installing The Hub External Antenna
SafeTrack – Hardware Installation Guide 5 INSTALLING THE SAFETRACK HUB EXTERNAL ANTENNA The Hub is supplied with an external vehicle roof mount Antenna for the following communication • Cellular LTE • GNSS (GPS) • Bluetooth • Wi-Fi The Antenna comes with four wire cables each 4 meters (157.48 inches) in length. -
Page 11: Mount Recommendations
SafeTrack – Hardware Installation Guide 5.1 Mount Recommendations Antenna should be mounted at a location 1. That has a surface with a Recommended wall thickness size: 3.0 ±1.0 mm 2. The underside (side opposite to where the antenna is mounted) of the wall is accessible for fastening the hex nut used to secure the Antenna 3. -
Page 12: Installing The Safetrack Relay
SafeTrack – Hardware Installation Guide 6 INSTALLING THE SAFETRACK RELAY 6.1 Mount Recommendations It is recommended that a RELAY be stationed within a compartment such that 1. It is unlikely to be an obstruction to typical usage of the compartment for storage. -
Page 13: Mechanical Install Procedure
SafeTrack – Hardware Installation Guide 6.2.1 Mechanical Install Procedure Access Available Behind Mount Wall 1. Drill two holes that adhere to the dimensions of the RELAY in terms of location and size of holes. 2. Use bolts to mount the RELAY to the wall. 3. -
Page 14: Installing The Safelink Tag
SafeTrack – Hardware Installation Guide 7 INSTALLING THE SAFELINK TAG Tags are mounted onto equipment that need to be tracked. Tags may be mounted using one of the following options, depending the on the equipment/asset being tagged 1. Drill and Tag Hole 2. -
Page 15: Drill Tap Hole
SafeTrack – Hardware Installation Guide 7.1 Drill Tap Hole 1. Drill and tap two holes on to a flat surface of the asset, that adhere to the dimensions of the TAG in terms of location and size of holes. 2. Use a size # 4-40 screw tap to drill the hole. 3. -
Page 16: Adhesive
SafeTrack – Hardware Installation Guide 7.3 Adhesive 1. Locate a flat surface on the asset with sufficient area for the Tag’s adhesive application (see diagram) area to be placed flush against the surface of the asset. 2. Use 99% Isopropyl Alcohol to clean the adhesive application area section of the tag as well as the area of the asset where the Tag is to be mounted. -
Page 17: Parts List
SafeTrack – Hardware Installation Guide 8 PARTS LIST Part Number Description XE-ATS130NCU-D0A SafeLink Hub with regular (no USB) Harness XE-ATS130NCU-D1A SafeLink Hub with USB enabled Harness XE-YB00221A Roof Mount 4 in 1 External Antenna – Wi-Fi, BT, LTE, GNSS XE-ANT000 Bluetooth 2.4 Ghz Antenna for mounting on to Hub enclosure with SMA connector XE-ATS130IND-A0A... - Page 18 SafeTrack – Hardware Installation Guide NOTES...
- Page 19 SafeTrack – Hardware Installation Guide NOTES...
- Page 20 26 Southern Blvd. • Nesconset, NY 11767 USA Phone +1 631.724.8888 • 800.645.0074 • FAX 816.892.3178 www.fireresearch.com 030123...
