Safe Fleet Prime Design FBM-1051 Assembly Instructions Manual

Advertisement

Quick Links

OTC Base Mounting System
Pages 2-3
Packaging Contents
Pages 4
FBM Mounting
Pages 5-6
Mounting to OTC Channels
Pages 7-8
Installing Mount Braces
PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118
Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prime Design FBM-1051 and is the answer not in the manual?

Questions and answers

Summary of Contents for Safe Fleet Prime Design FBM-1051

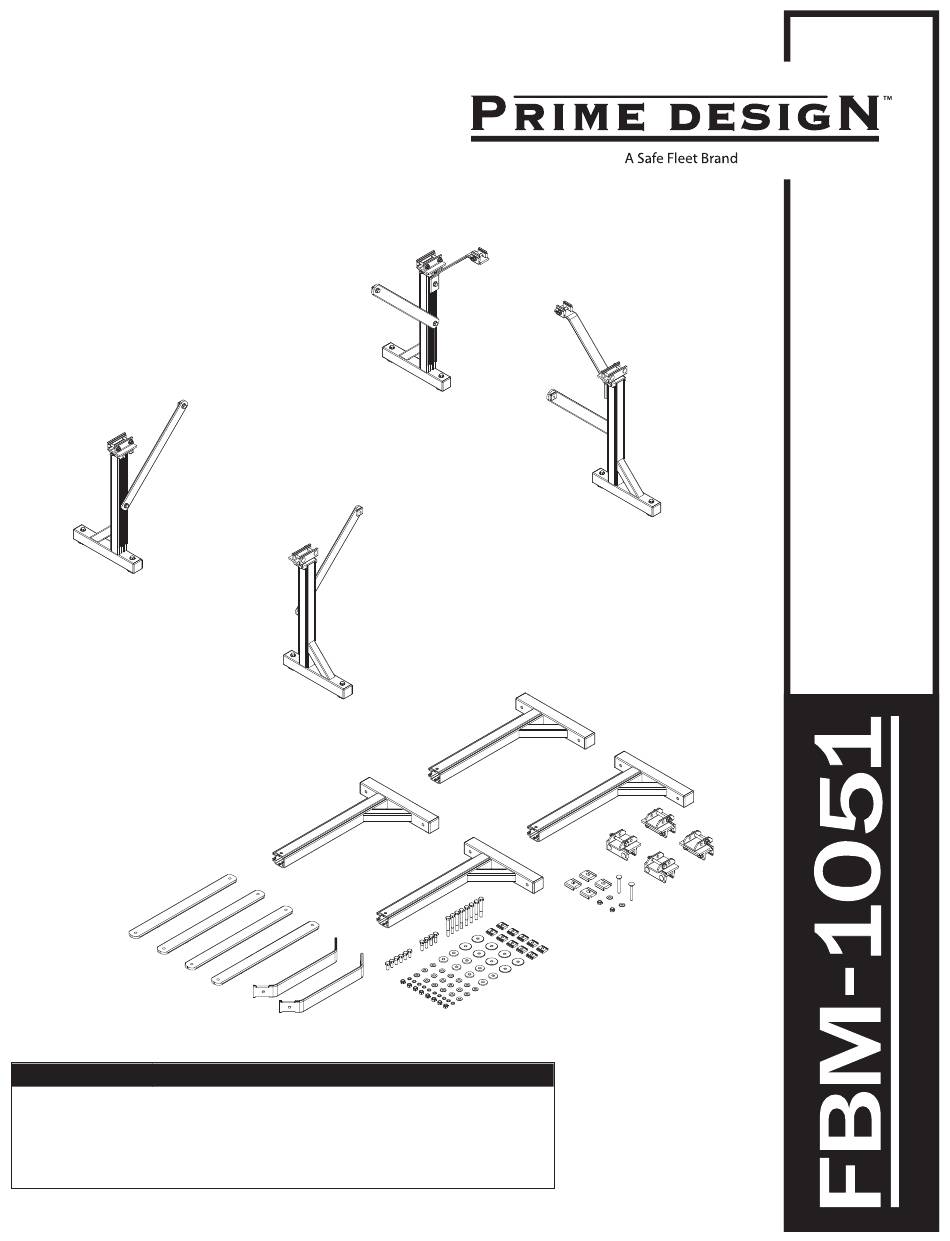

  • Page 1 Pages 5-6 Mounting to OTC Channels Pages 7-8 Installing Mount Braces PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
  • Page 2: Contents Overview

    CONTENTS OVERVIEW Base Mounting Leg ..........(Qty 4) Mounting Leg Connector Assembly ..... (Qty 4) Crossbar Mounting Brace ........(Qty 2) Channel Mounting Brace ........(Qty 4) Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 3 HKT-0188 Crossbar Mounting Connector Hardware Kit Mounting Connector (4X) M8 x 60MM Carriage Bolt (2X) M8 Lock Nut (2X) " Flat Washer (2X) HKT-8061 FBM Hardware Kit M8 x 65MM (8X) M8 x 20MM (6X) M8 x 30MM (4X) Rubber Washer Fender Washer (8X) (8X)
  • Page 4 9’ BODY CONFIGURATIONS INSTALLING MOUNTING LEGS 8’ BODY CONFIGURATIONS NOTE: Recommended installation distances are as shown. NOTE: Recommended installation distances are as shown. *Ensure clearance for fastening hardware under the front and rear mounting surfaces of your truck box. *Ensure clearance for fastening hardware under Front the front and rear mounting surfaces of your truck box.
  • Page 5 INSTALLING MOUNTING LEGS Re-install Mounting Leg Connector Hardware as shown. Install Mounting Leg Connectors onto the Base Mounting Legs as shown. Remove and retain Hardware Align outer Connector hole with the bolt hole on the Mounting Leg for Hardware installation. Prime Design Limited Warranty.
  • Page 6 OVERVIEW: MOUNTING TO OTC CHANNELS NOTE: Channels and Crossbars in this Overview are shown for reference only. Specific configurations are determined by Service Body size, and Crossbar preferences. MOUNTING TO CHANNELS Crossbars must be installed directly under the the rear and front mounts Loosen all indicated Nuts to install the Channels.
  • Page 7 REAR MOUNTING FOOT MID MOUNTING FOOT NUT BRACKETS NUT BRACKETS Install one M8 Nut Bracket in each rear Install two M8 Nut Brackets in each mid Mounting Foot channel as shown. Mounting Foot channel as shown. MID CROSSBAR BRACE INSTALLATION Install the mid Crossbar Braces as shown.
  • Page 8 REAR/MID CROSSBAR–CHANNEL Install the mid Crossbar Brace Hardware into the top Nut Bracket as shown. Torque all Hardware to 90 in-lbs. BRACE INSTALLATION M8 x 20MM Lock Washer Flat Washer M8 x 20MM Lock Washer Keep Nut Bracket Flat Washer loose for installation into inner Channel sides Install Braces into the inside of the Channels as shown.
